Finished Build

Orchestral Model Lefthanded Cutaway

The Lion's Claw
OMCL 2.1.57 for Phil R.

Cocobolo Body 15 inch lower bout
Adirondack Spruce Top
Lion Theme Marquetry
Mahogany Neck
Ebony Fretboard
Gold Frets & Gotoh Tuners
Padauk Binding
25.4 Inch Scale Length

Page 3

( 116 ) 17-Feb-2013

Now I turn my attention to making the braces. Here I am laying out my set of templates.

( 117 ) 17-Feb-2013

I use a sanding guide to shape the bottom of the braces. The braces need to fit the shape of the sanding bowls that have te shape of the top and back..

( 118 ) 17-Feb-2013

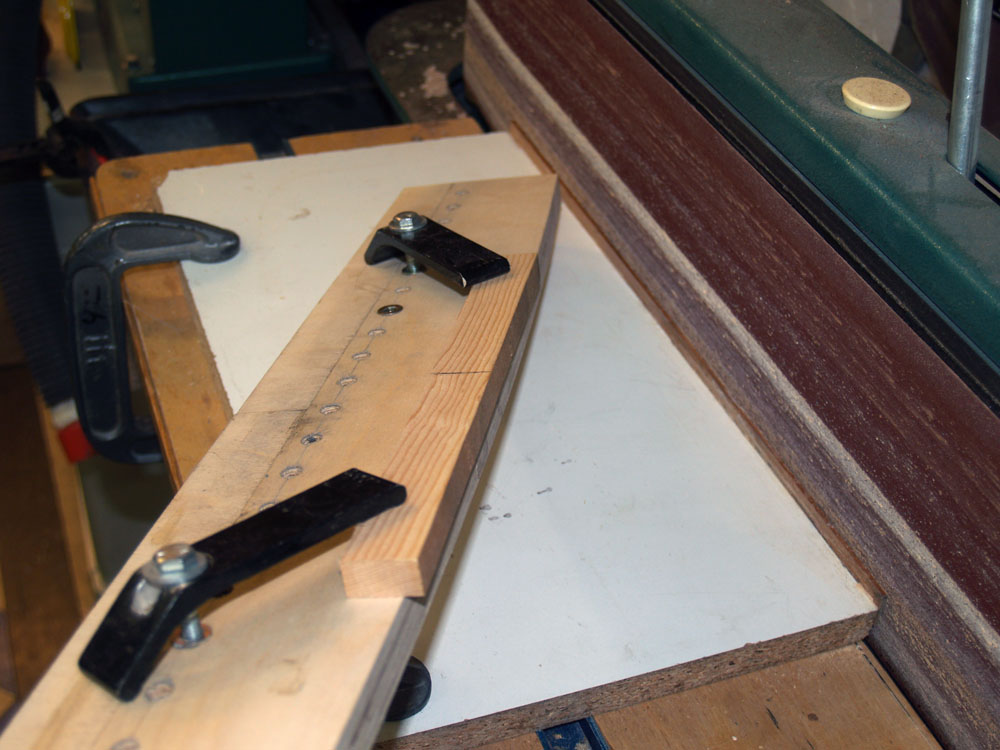

Here I have mounted a brace blank on to the sanding guide.

( 119 ) 17-Feb-2013

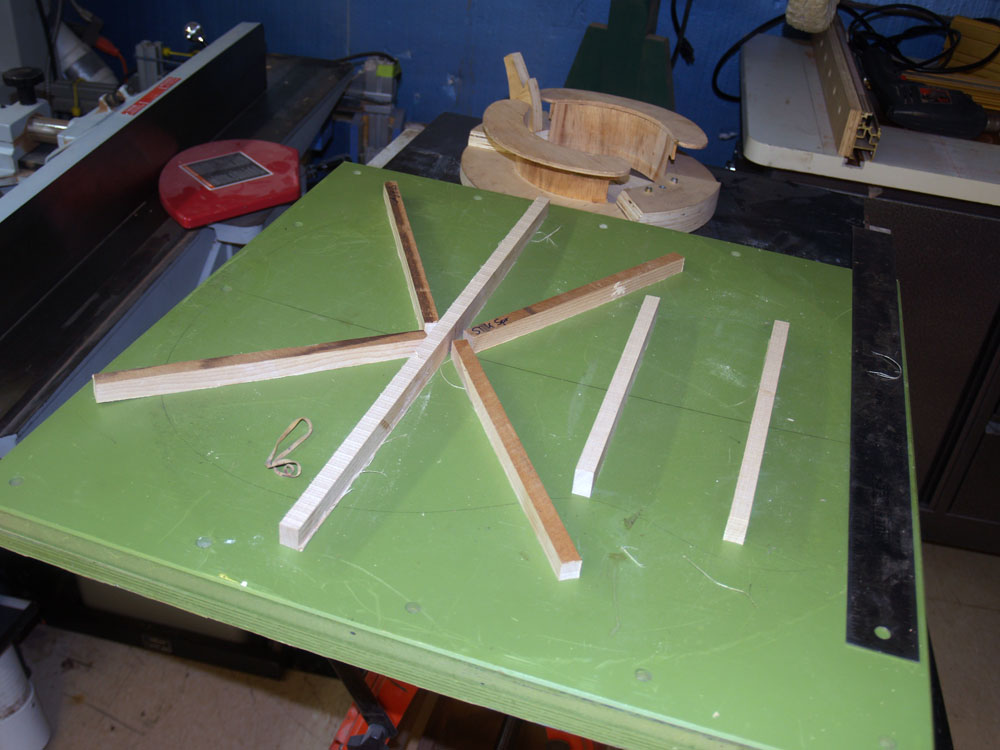

I lay out the brace blanks on the sanding bowl. The green bowl is for the back, and the blue bowl is for the top.

( 120 ) 17-Feb-2013

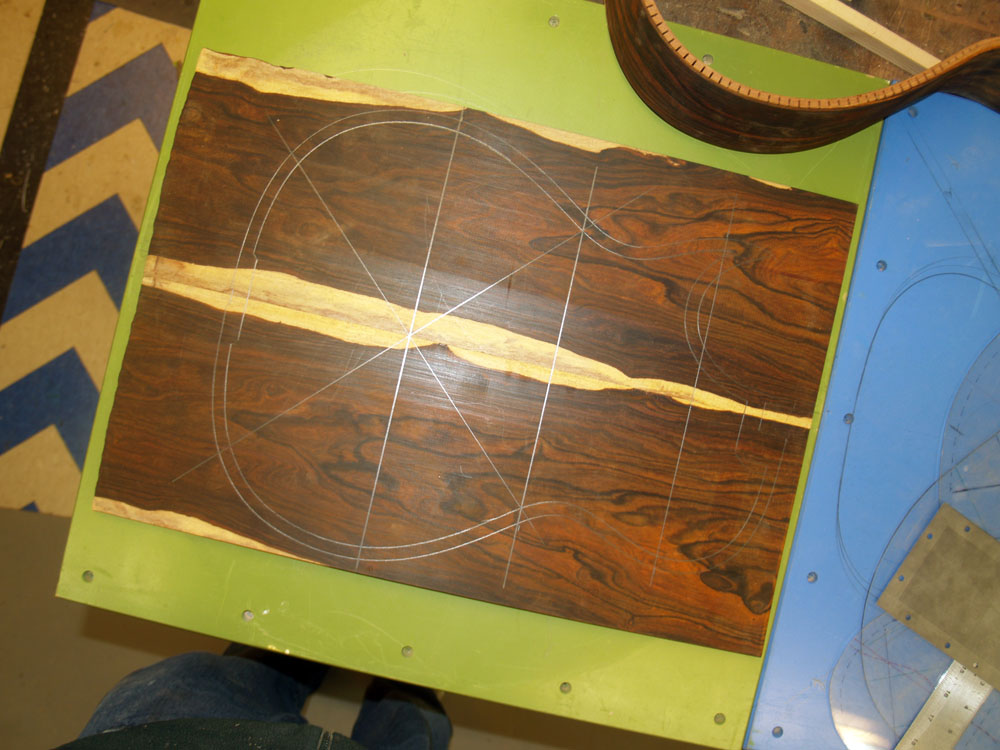

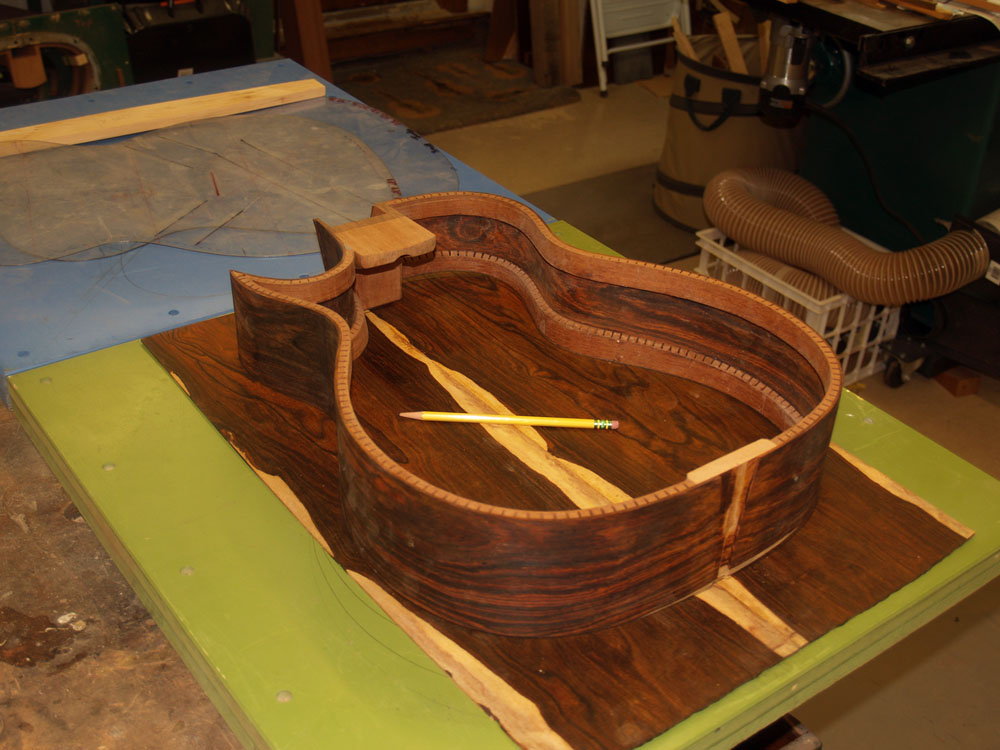

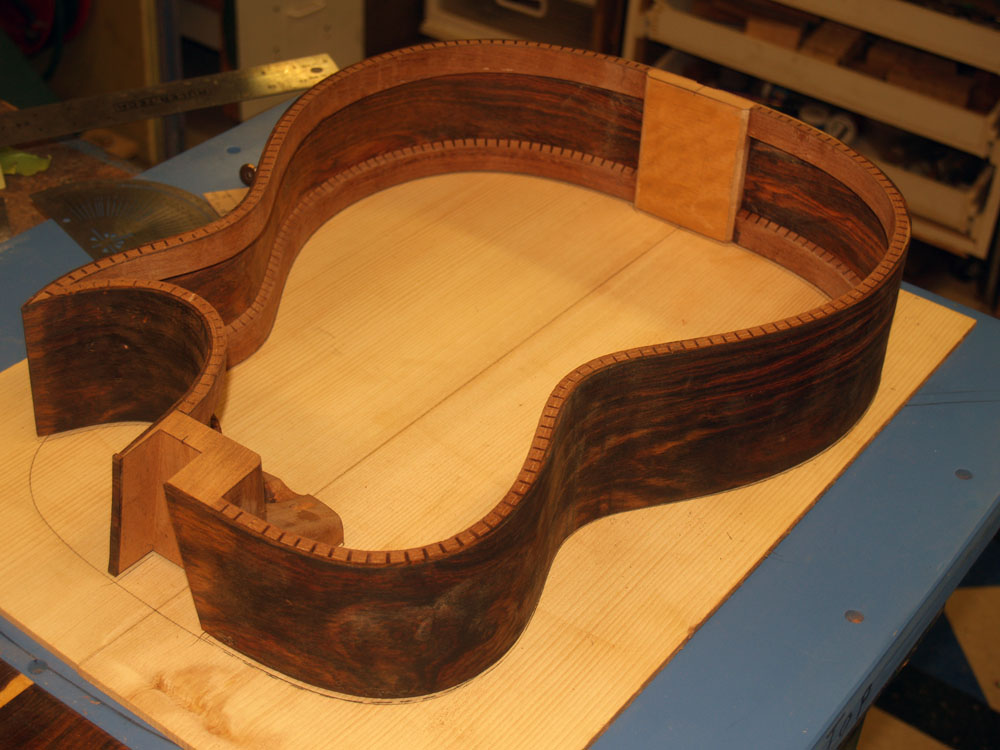

I trace the outline of the rim onto the back plate so I can cut the brace blanks to their proper lengths.

( 121 ) 17-Feb-2013

I mark the layout of the braces.

( 122 ) 17-Feb-2013

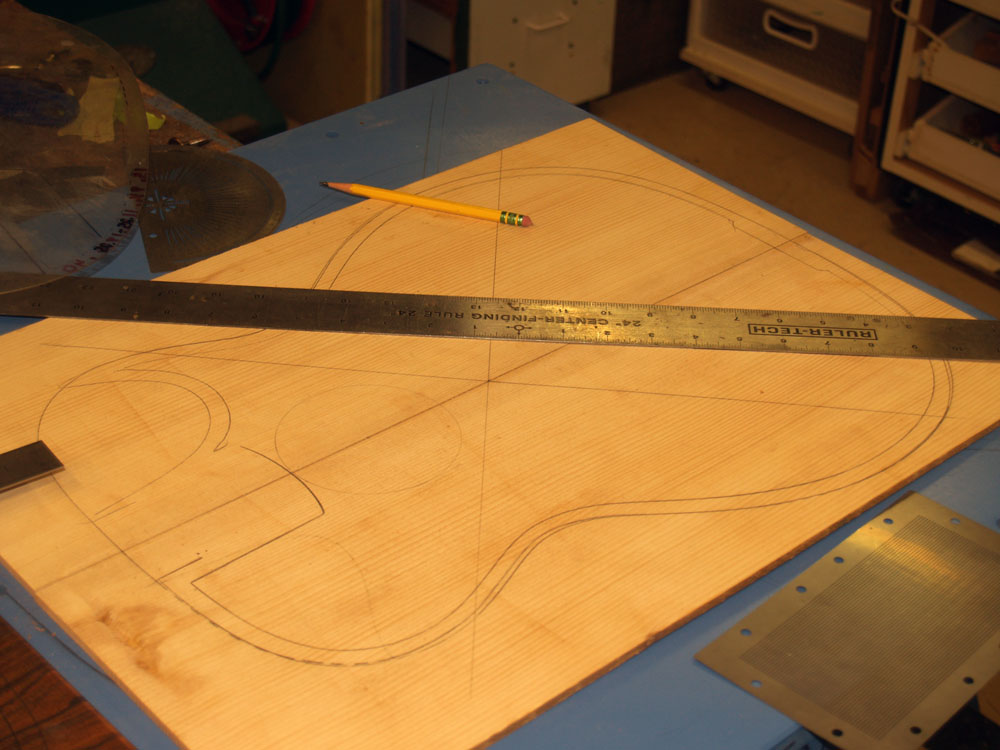

I do the same thing for the top plate.

( 123 ) 17-Feb-2013


( 124 ) 17-Feb-2013

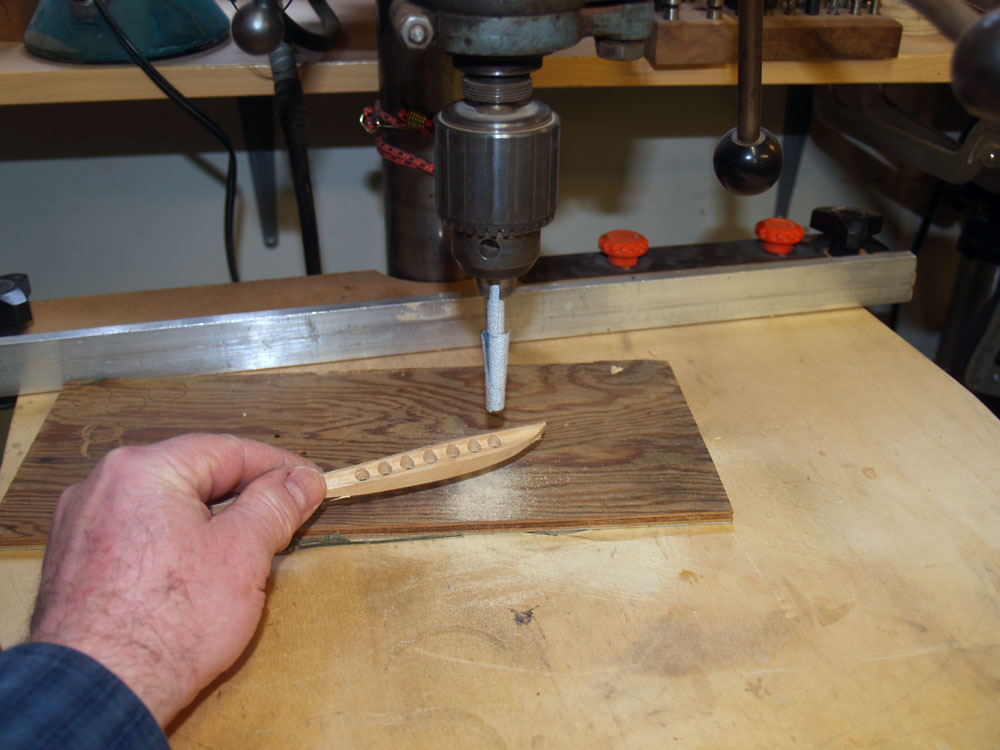

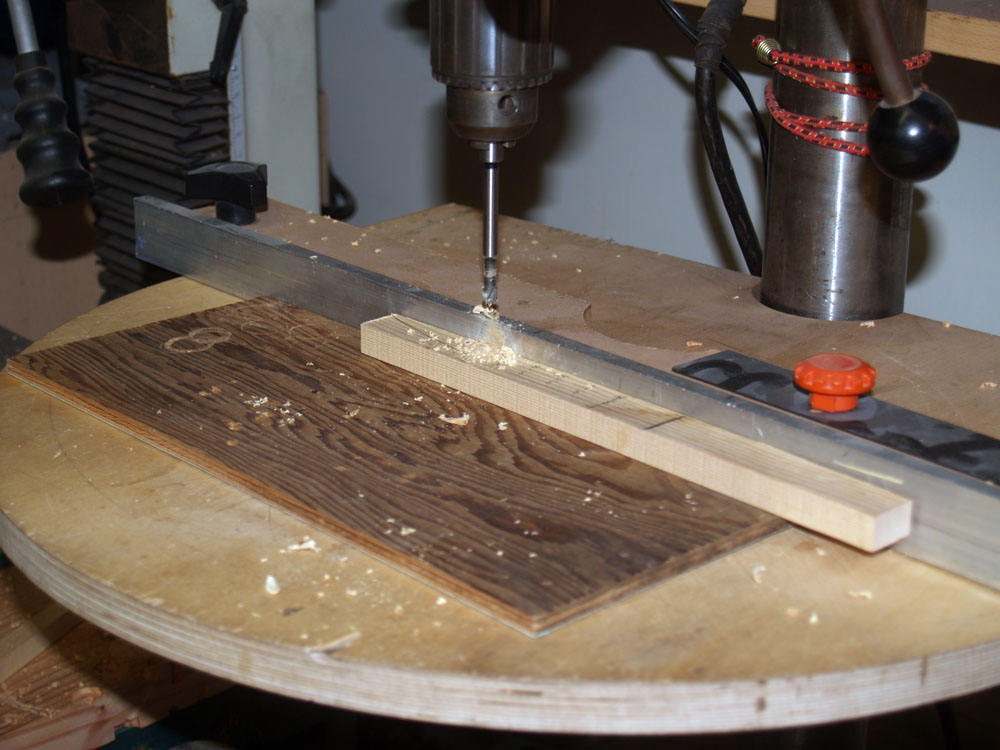

Now back to the braces. To reduce the mass of the braces while maintaining their stiffness I make my braces into something similar to aircraft struts. Ultimately the braces will have an I-beam cross section with circles cut out of the webbing. Here I am drilling out the holes.

( 125 ) 17-Feb-2013

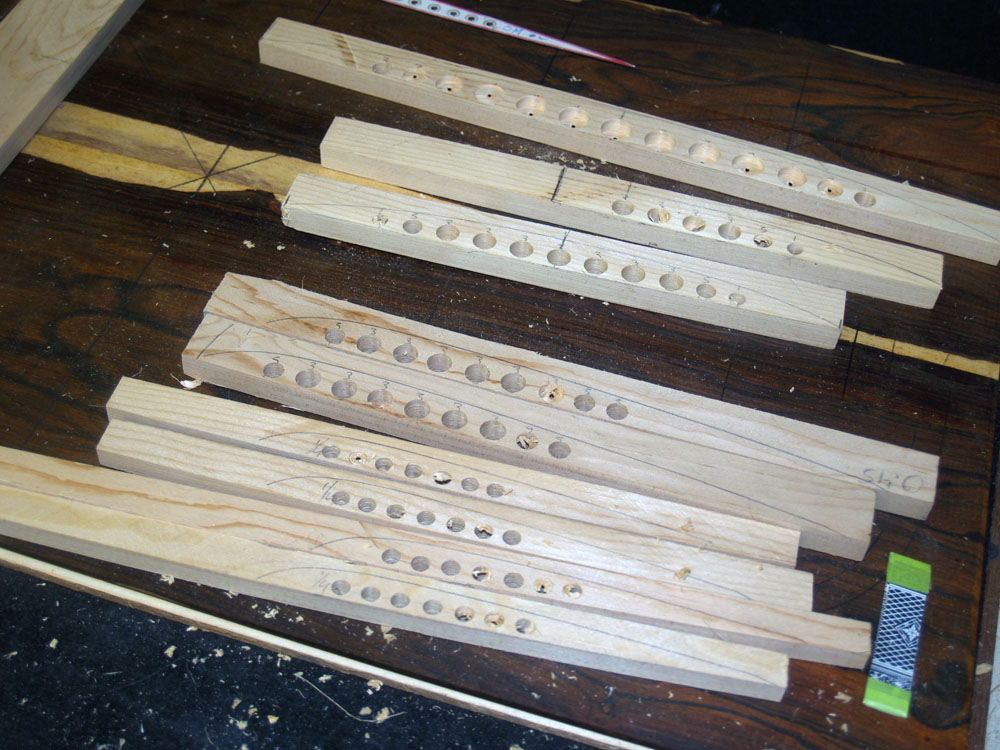

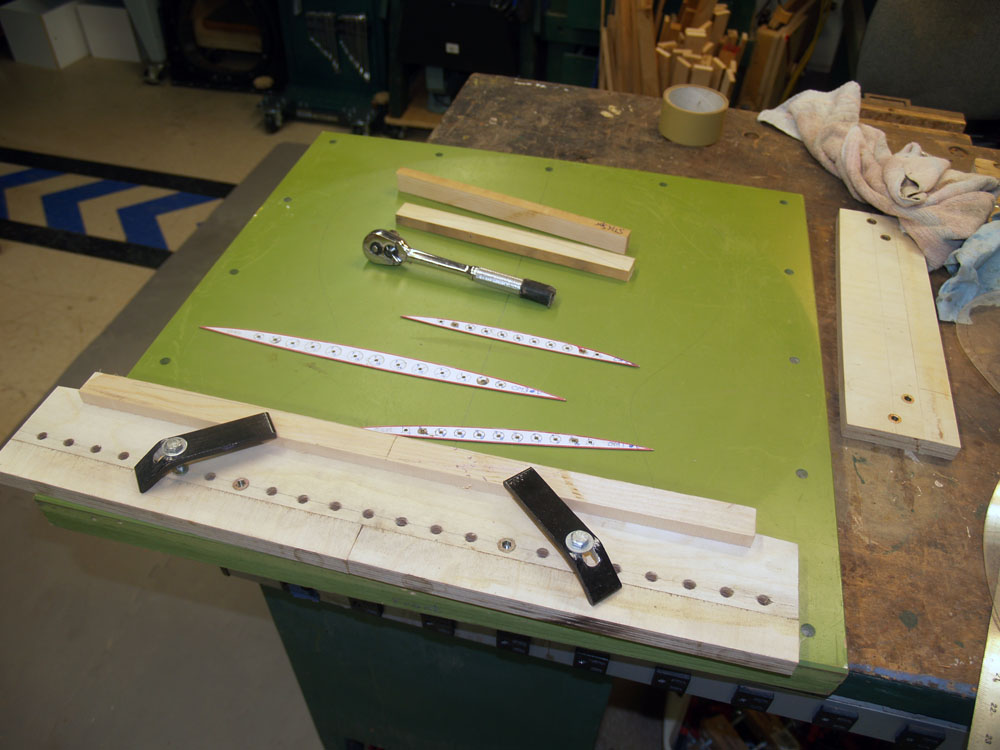

Lots of holes.

( 126 ) 17-Feb-2013

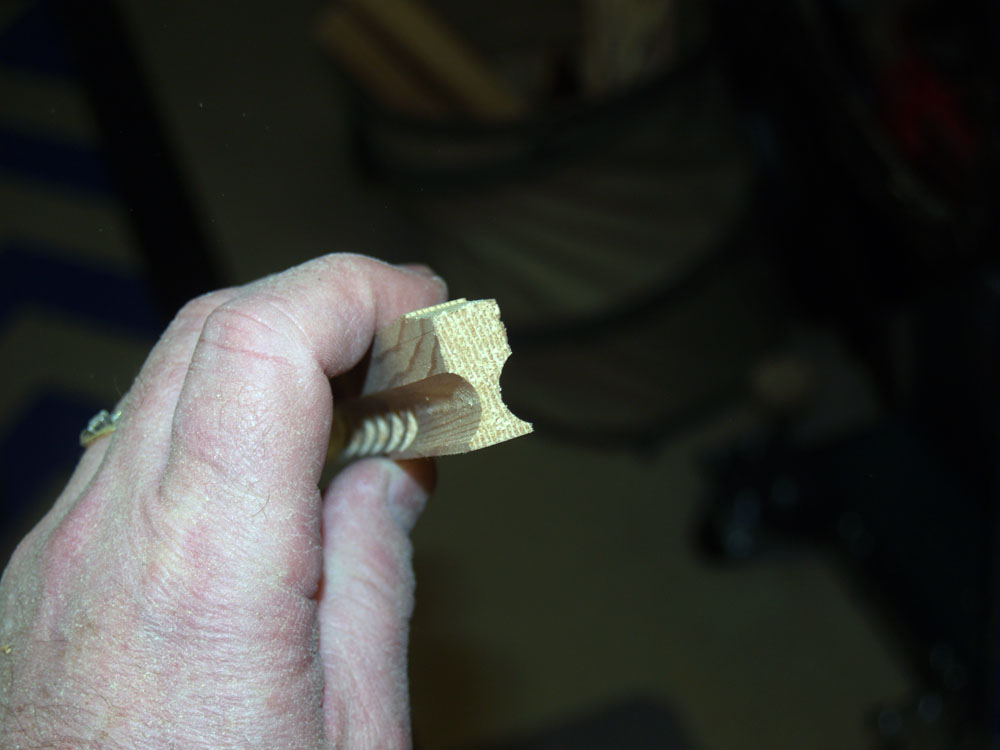

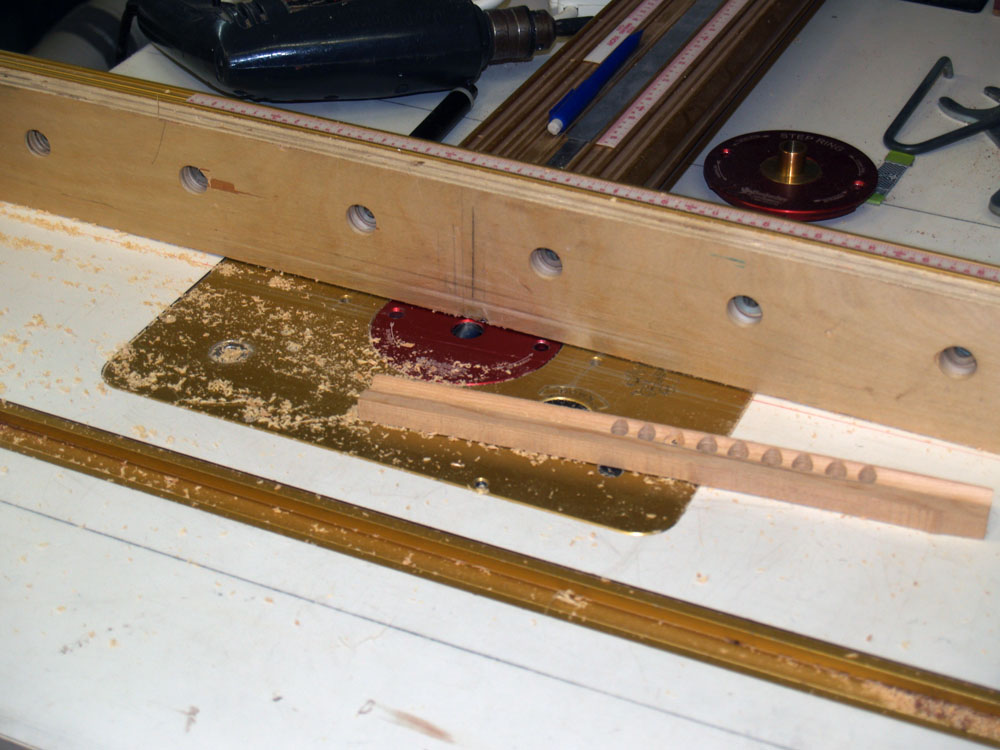

Next I use my router table to route out the I-beam channel.

( 127 ) 17-Feb-2013


( 128 ) 17-Feb-2013

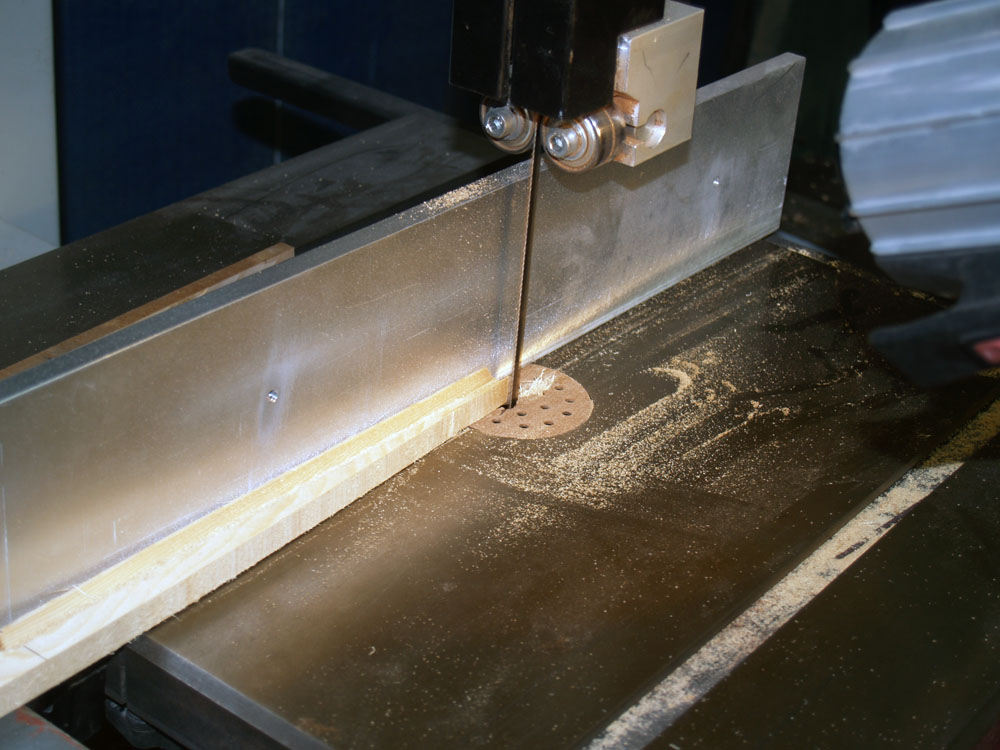

For the main X-braces I use my bandsaw to trim the brace blanks.

( 129 ) 17-Feb-2013

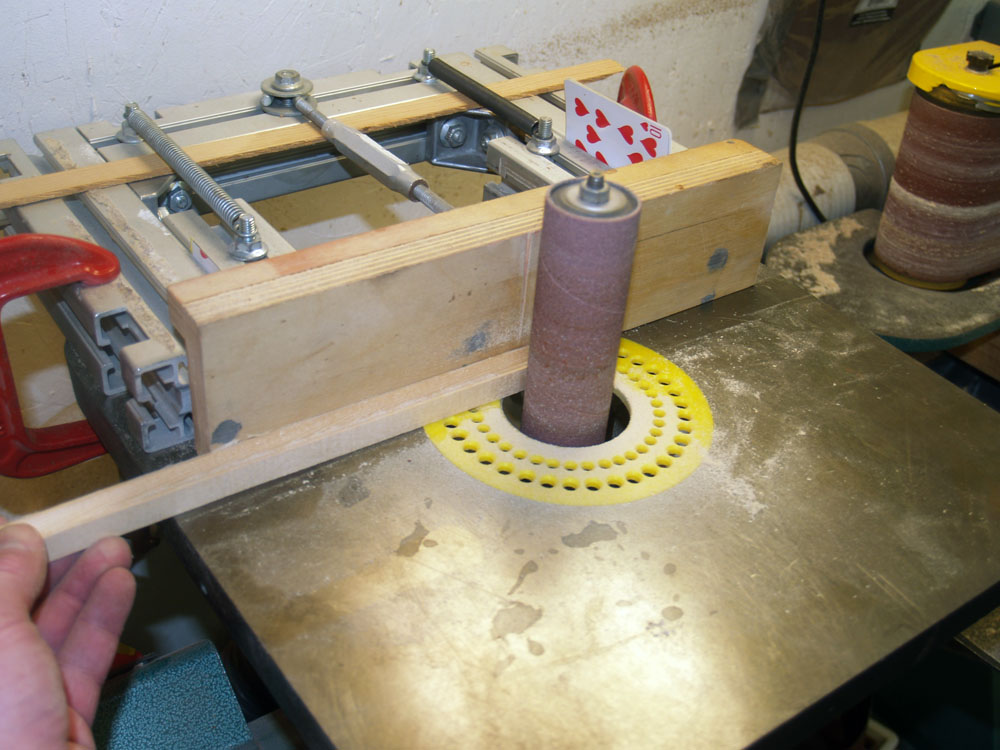

And my oscillating sander makes the height consistent.

( 130 ) 17-Feb-2013

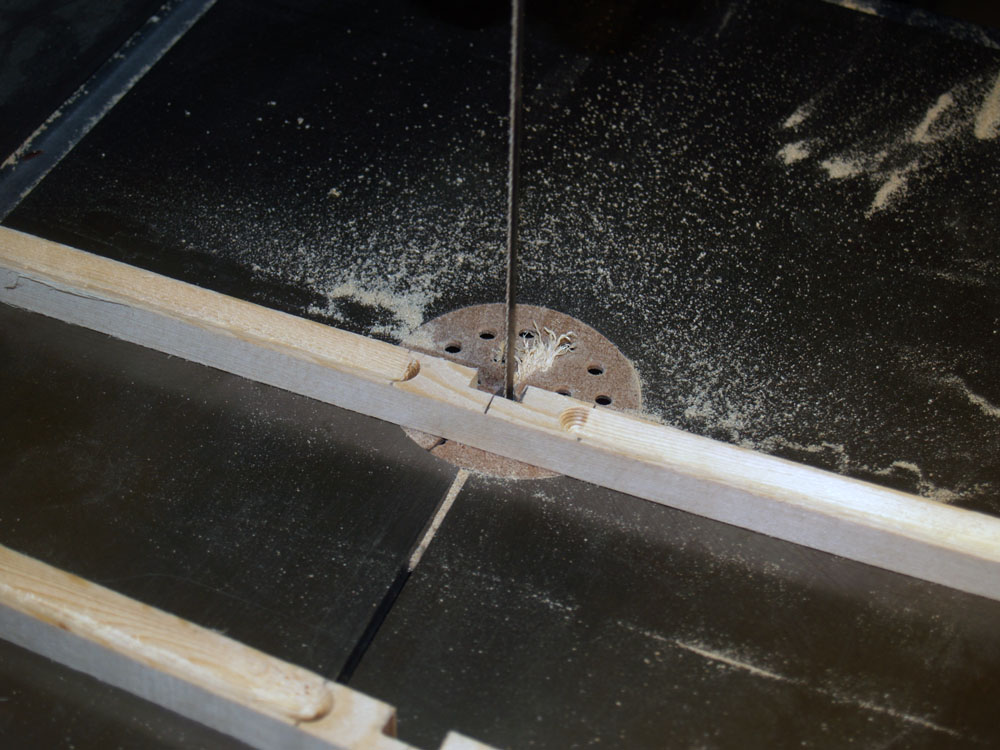

The X-braces get a notch cut out using the bandsaw.

( 131 ) 17-Feb-2013

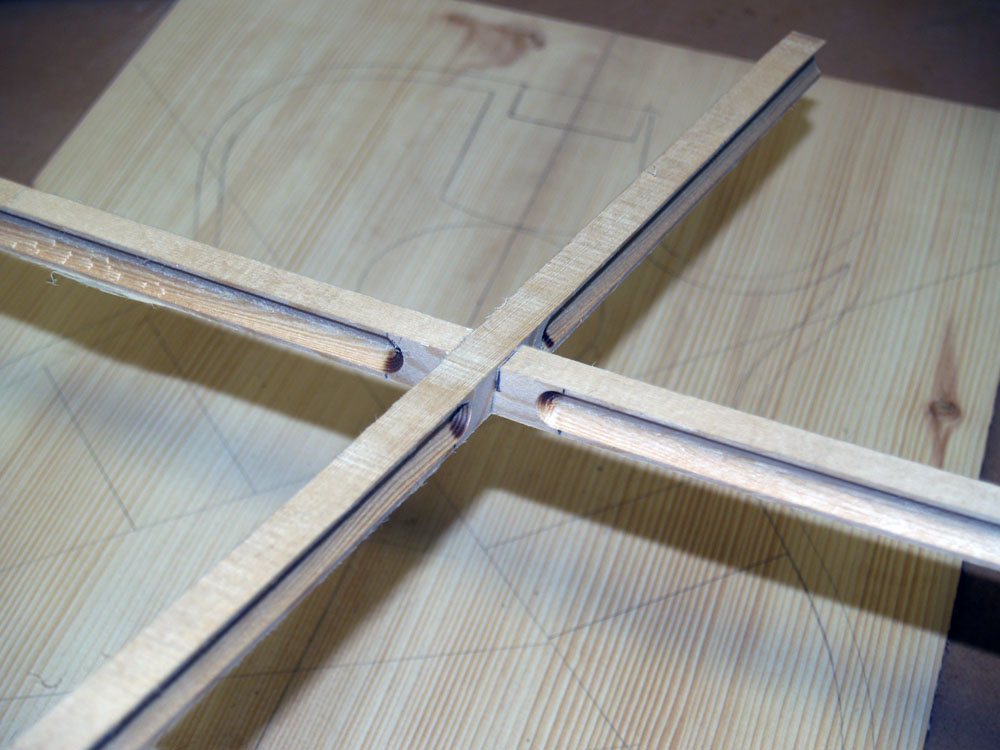

A good fit, snug but not overly tight.

( 132 ) 17-Feb-2013

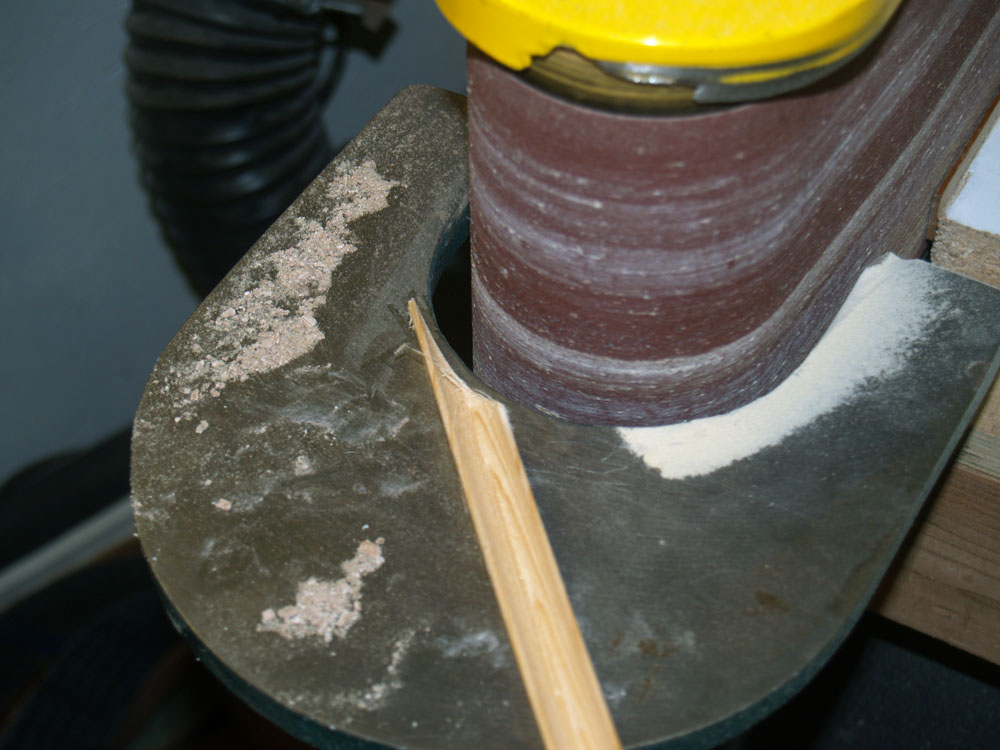

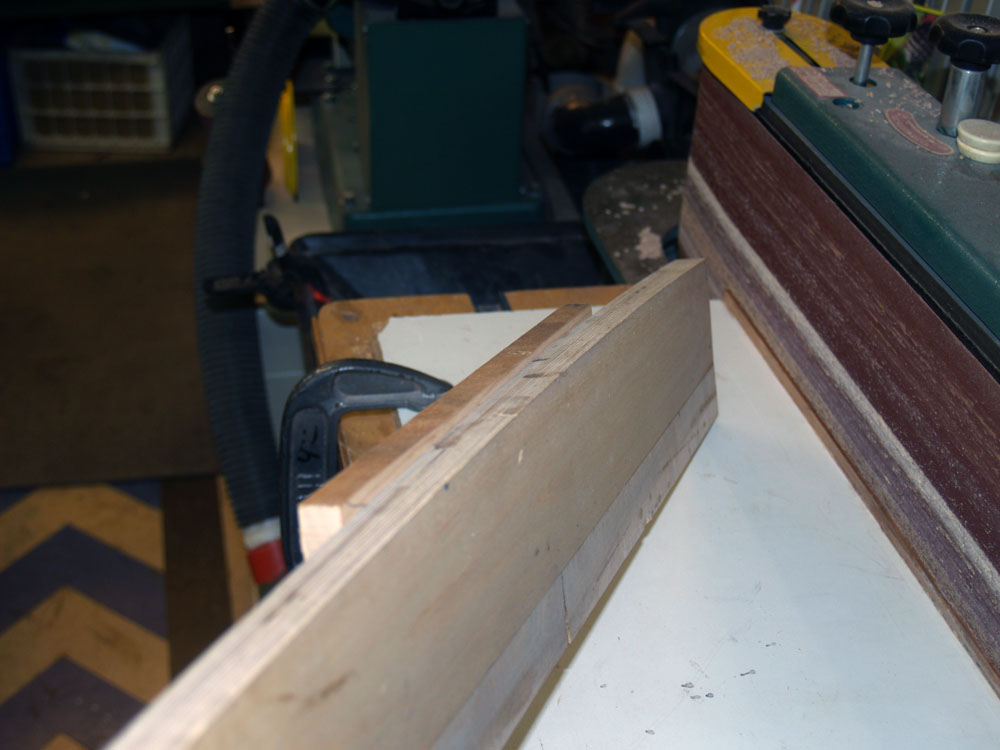

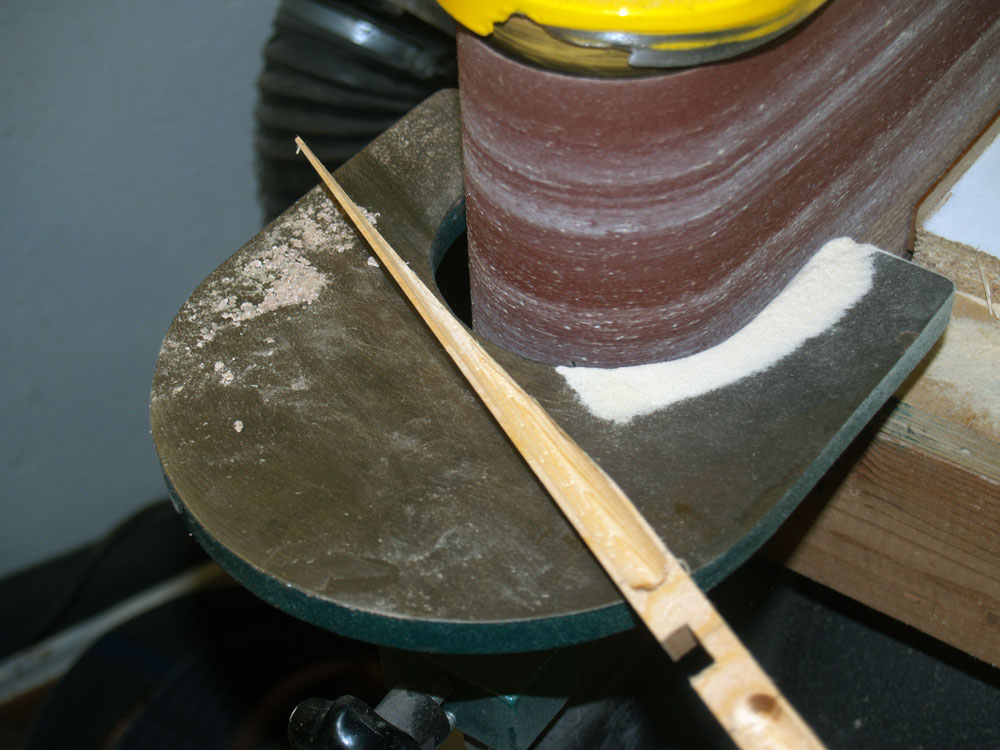

Now I start to shape the X-braces using my belt sander.

( 133 ) 17-Feb-2013

The two legs of the X-brace are asymmetric. The bass leg of the brace is trimmed so that it will be less stiff than the treble arm of the brace. This asymmetry will broaden the frequency response function of the guitar helping to create a more even set of tones across the fretboard.

( 134 ) 17-Feb-2013

The treble leg is stiffer than the bass leg.

( 135 ) 17-Feb-2013

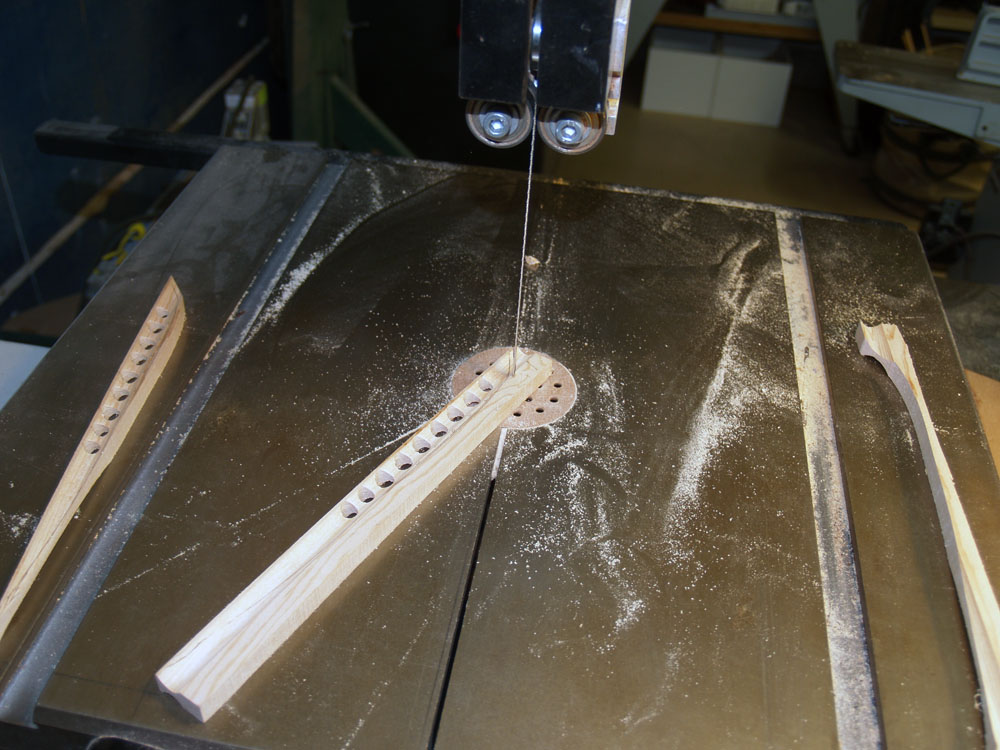

I use the bandsaw to rough out the tops of the braces.

( 136 ) 17-Feb-2013

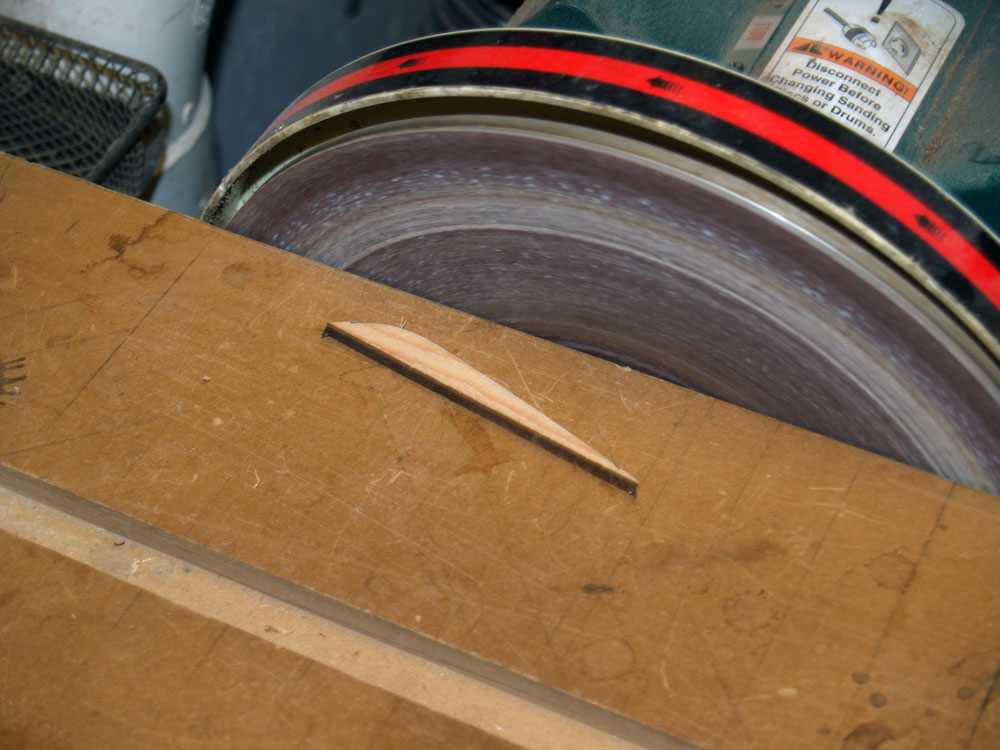

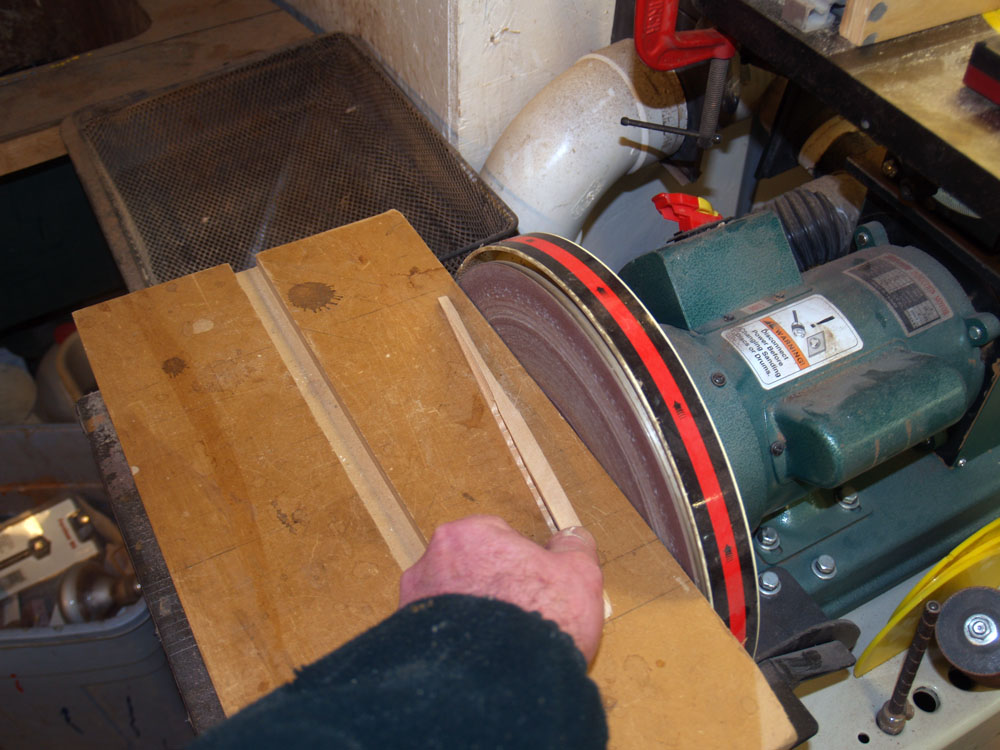

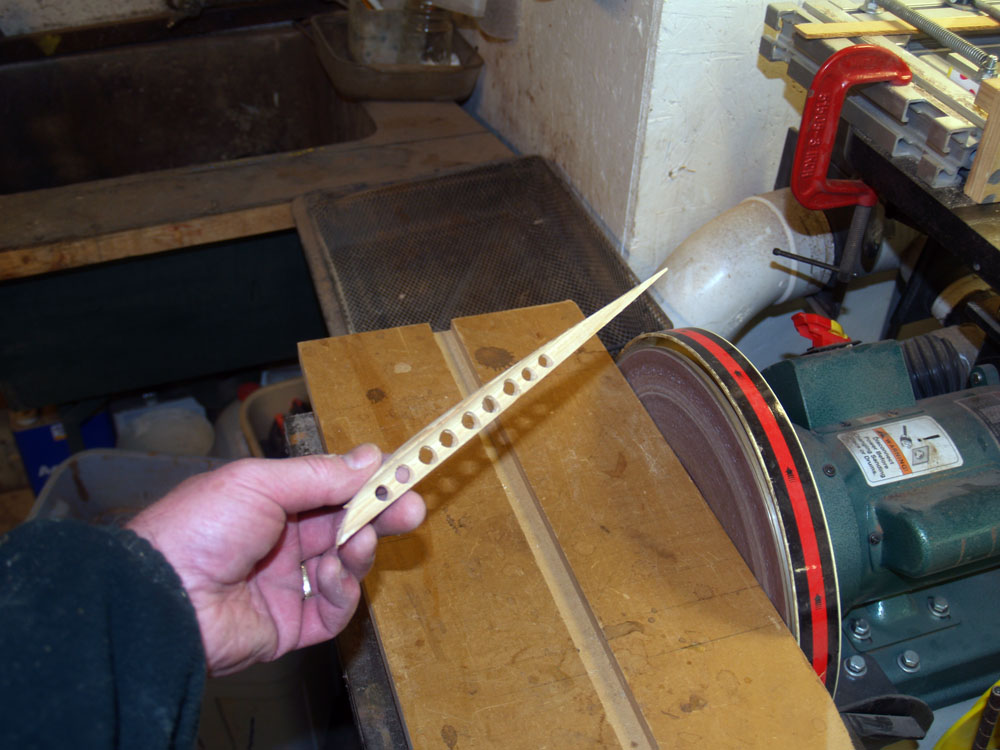

And my disk sander finishes up the job.

( 137 ) 17-Feb-2013


( 138 ) 17-Feb-2013

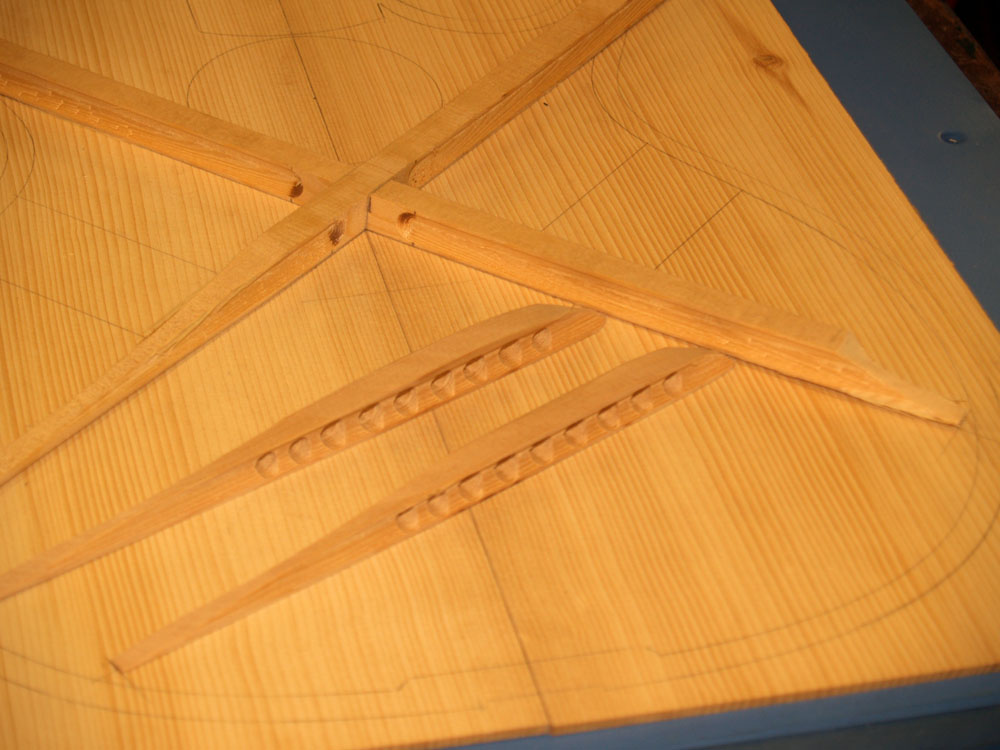

Here we I have laid out the braces on the top to make sure they fit.

( 139 ) 17-Feb-2013

Working on shaping the finger braces.

( 140 ) 17-Feb-2013

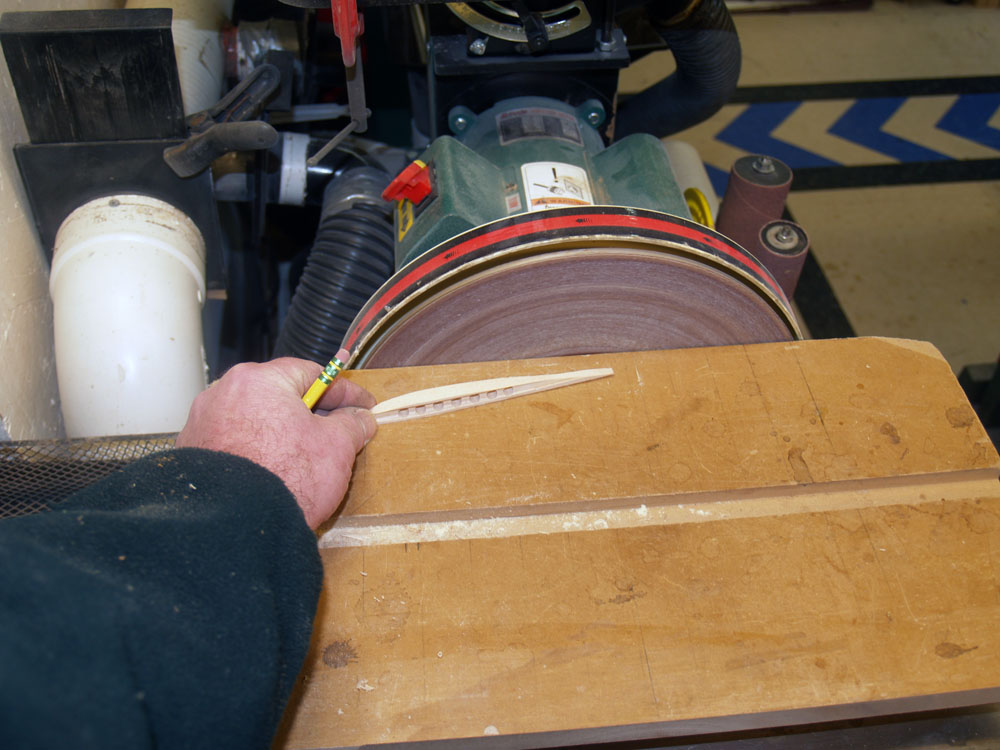

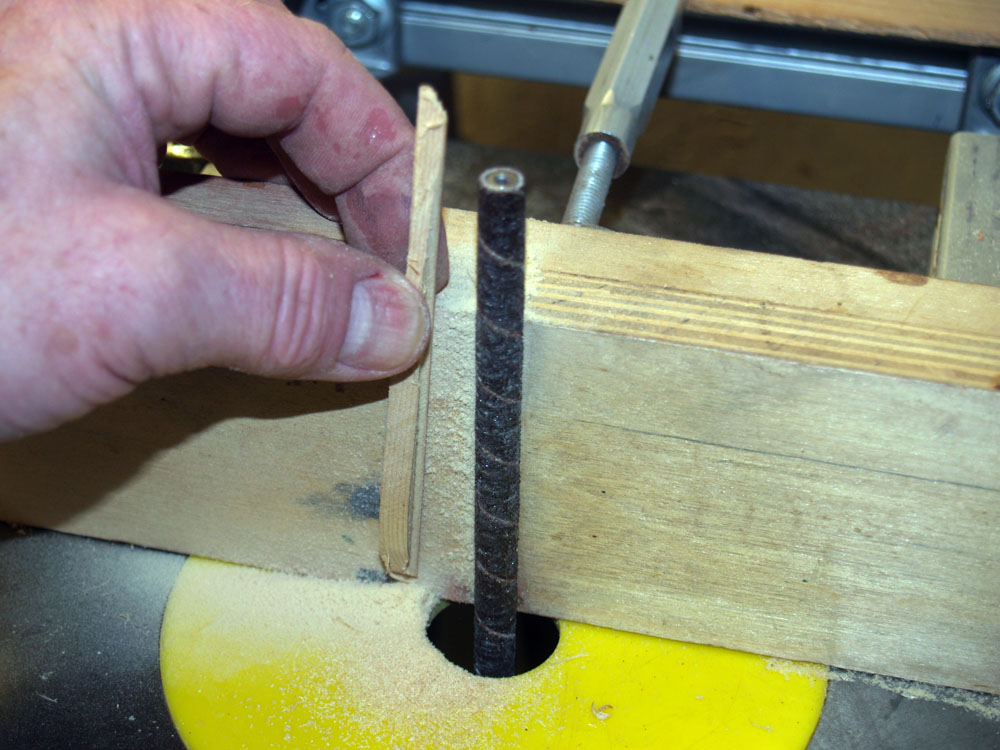

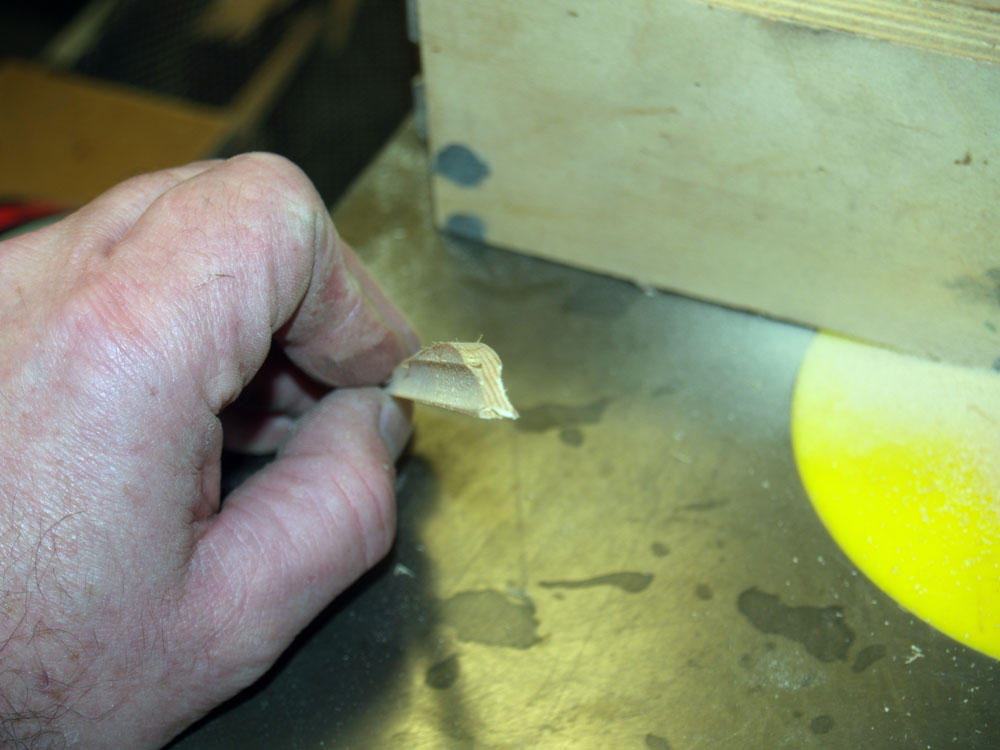

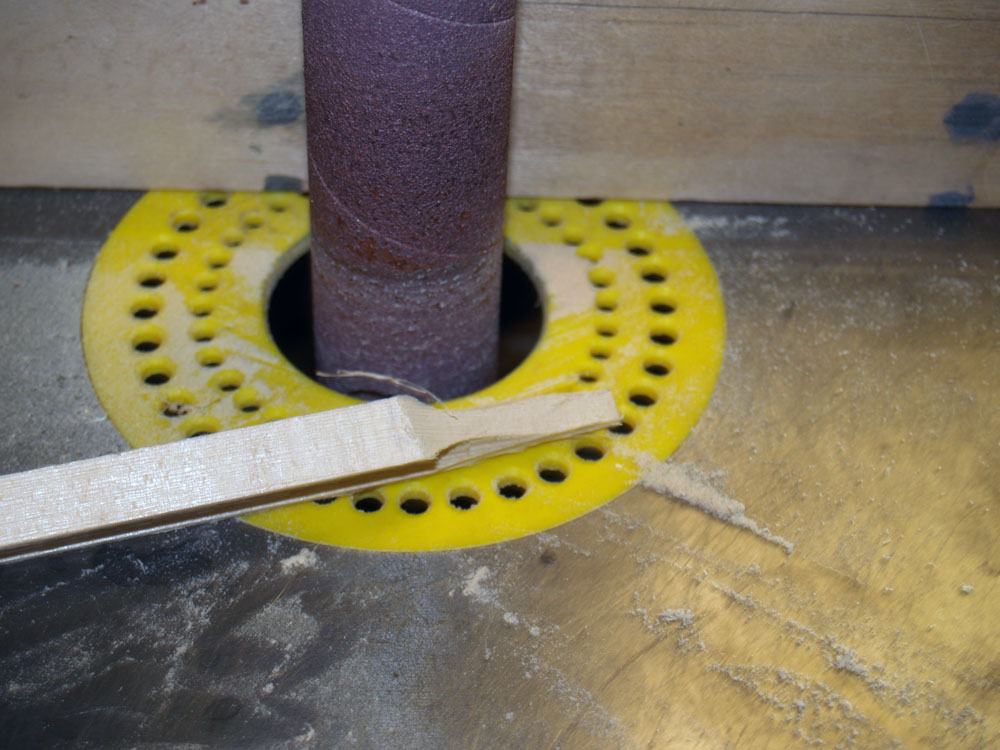

I use my oscillating sander with a small cylinder to create the I-beam profile.

( 141 ) 17-Feb-2013


( 142 ) 17-Feb-2013

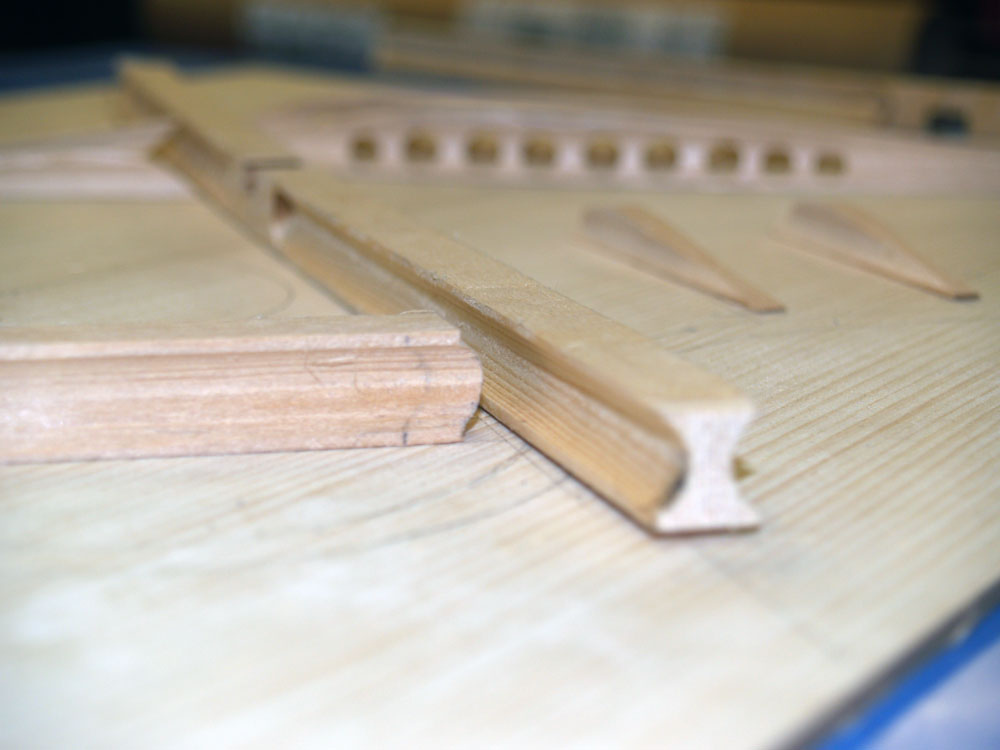

The end of the A-frame portion of the top braces get profiled so they fit together.

( 143 ) 17-Feb-2013

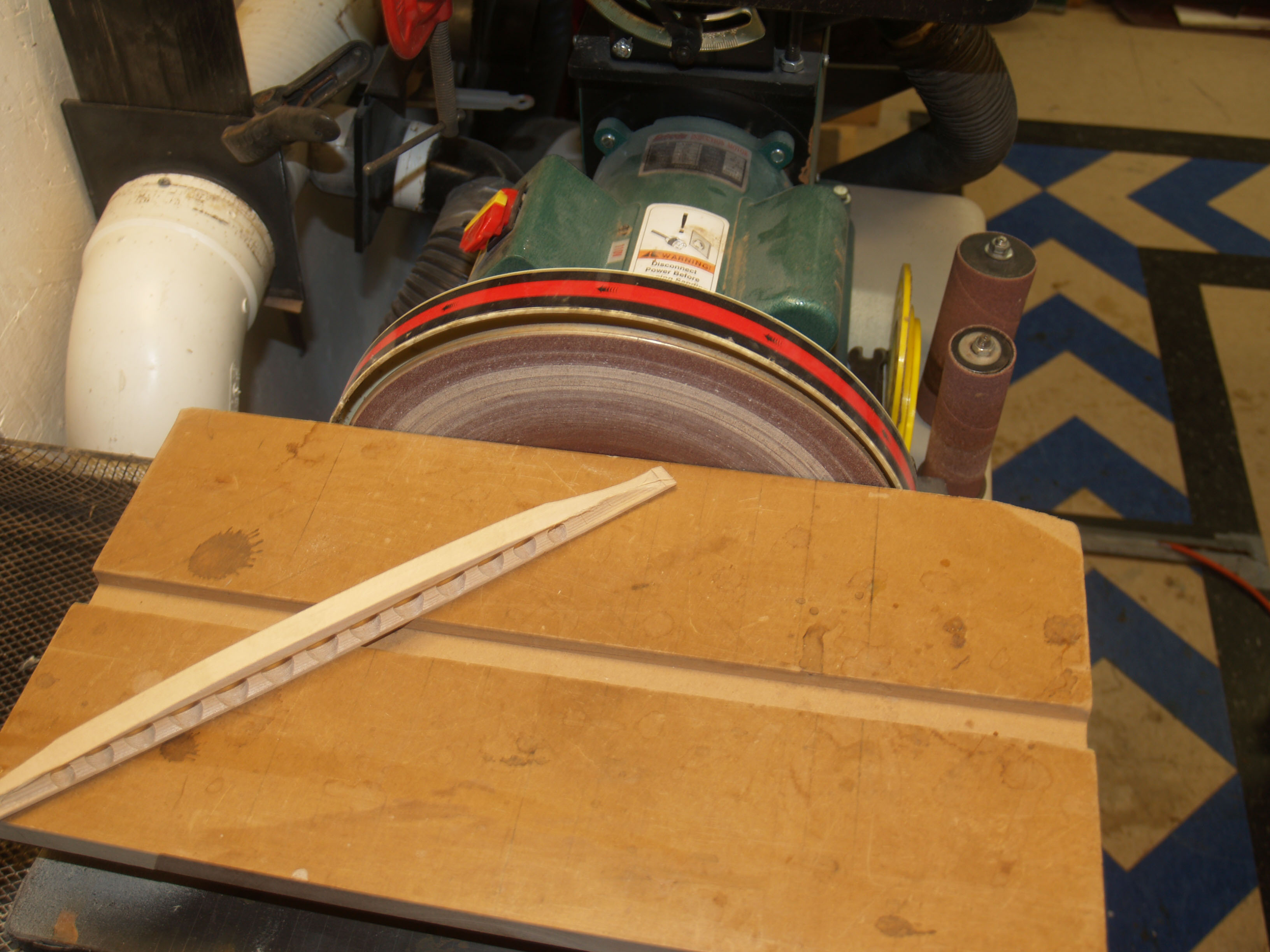

And back to the disk sander for more shaping.

( 144 ) 17-Feb-2013


( 145 ) 17-Feb-2013

Here I have laid out the back braces, one more time.

( 146 ) 17-Feb-2013

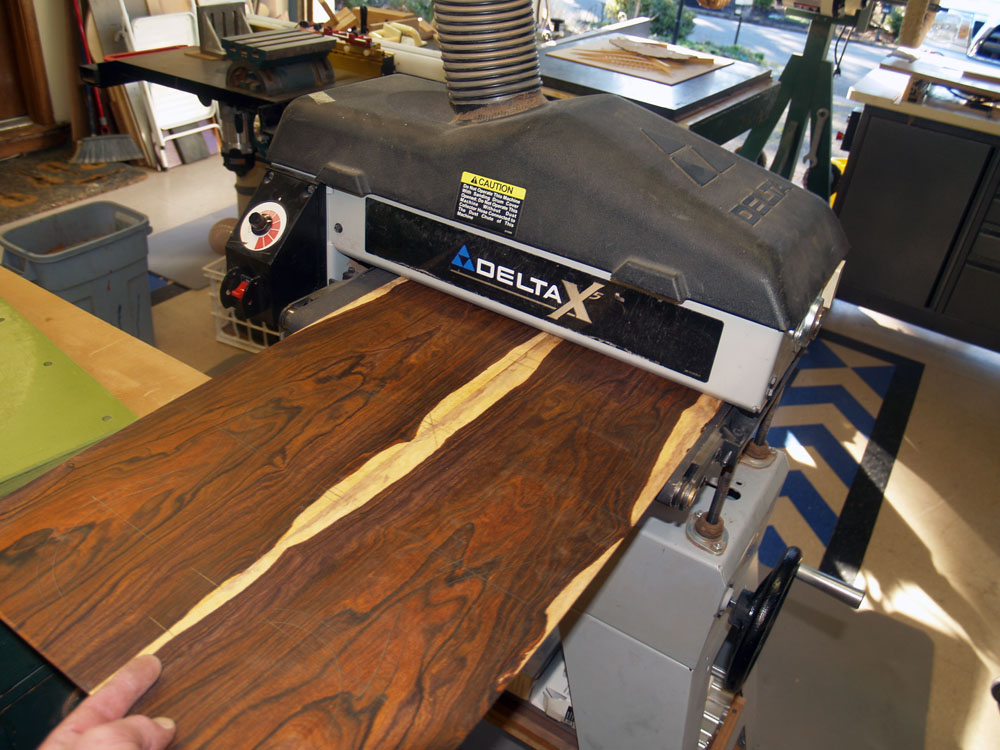

I use my drum sander to reduce the thickness of the back plate. Cocobolo is a very heavy wood and I don't want it any thicker than necessary.

( 147 ) 17-Feb-2013

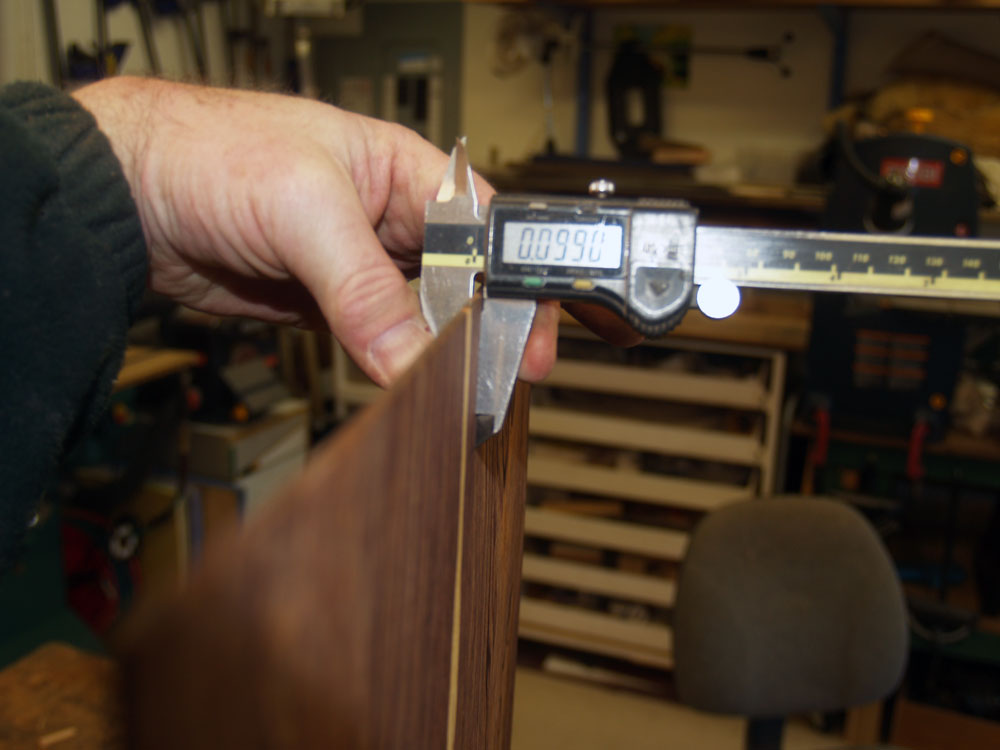

Very nearly 100 mils thick. When the guitar is finished the back will end up being about 90 mil thick.

( 148 ) 17-Feb-2013

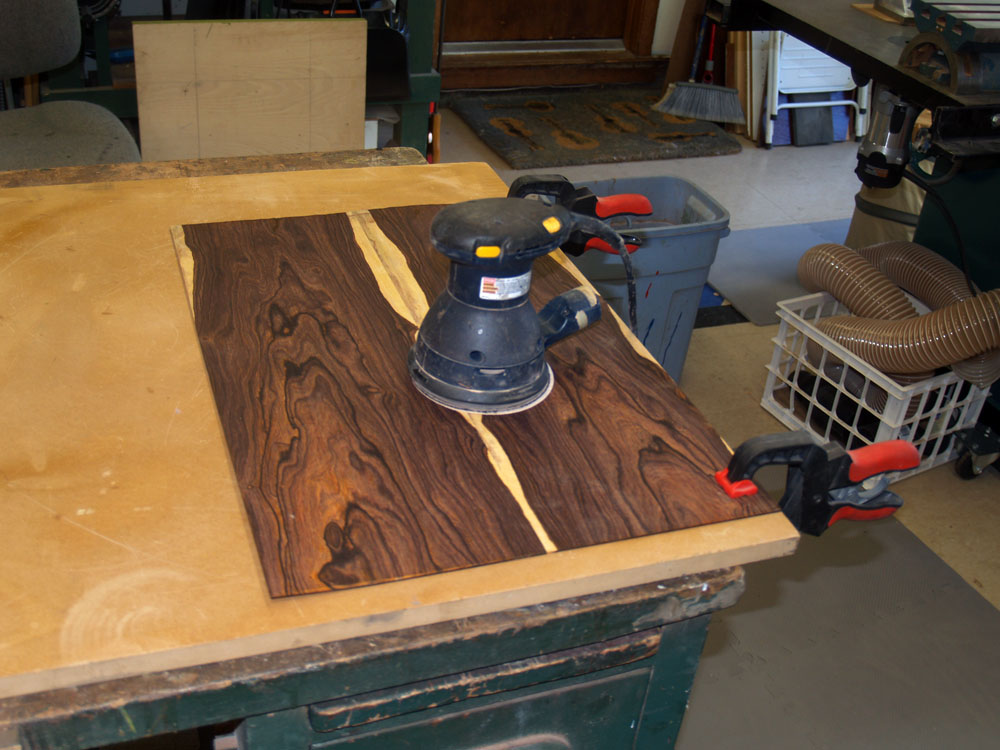

The drum sander leaves sanding marks, so I use a palm sander to remove them.

( 149 ) 17-Feb-2013

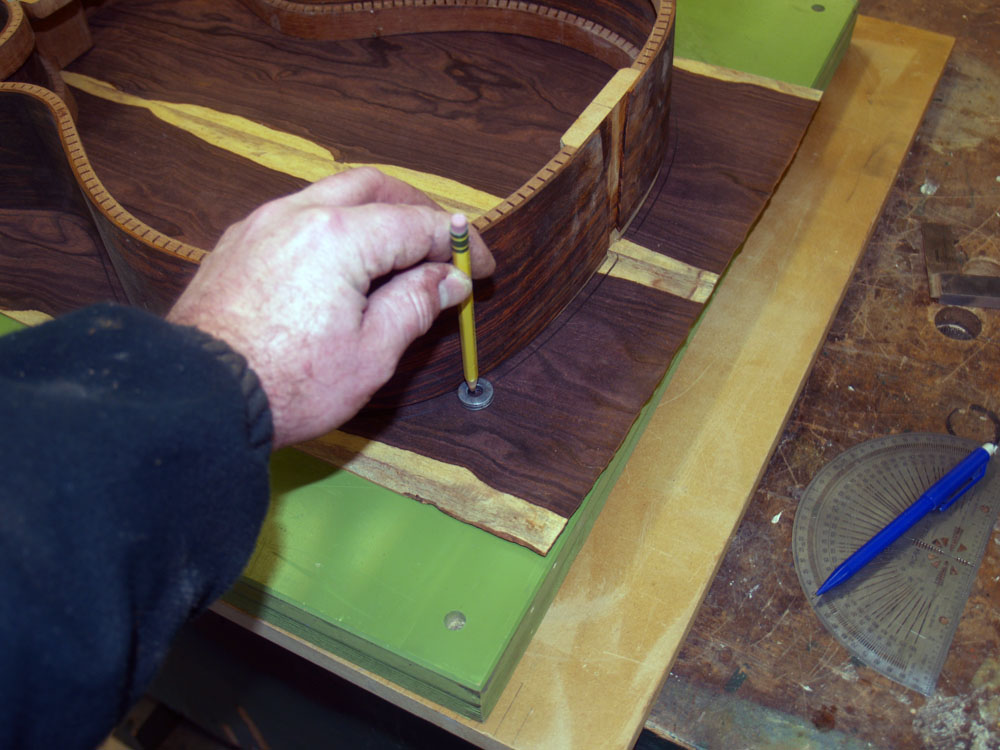

One more time marking out the rim profile. The washer gives me 1/4 inch extra. This will be trimmed off after it is glued to the rim.

( 150 ) 17-Feb-2013

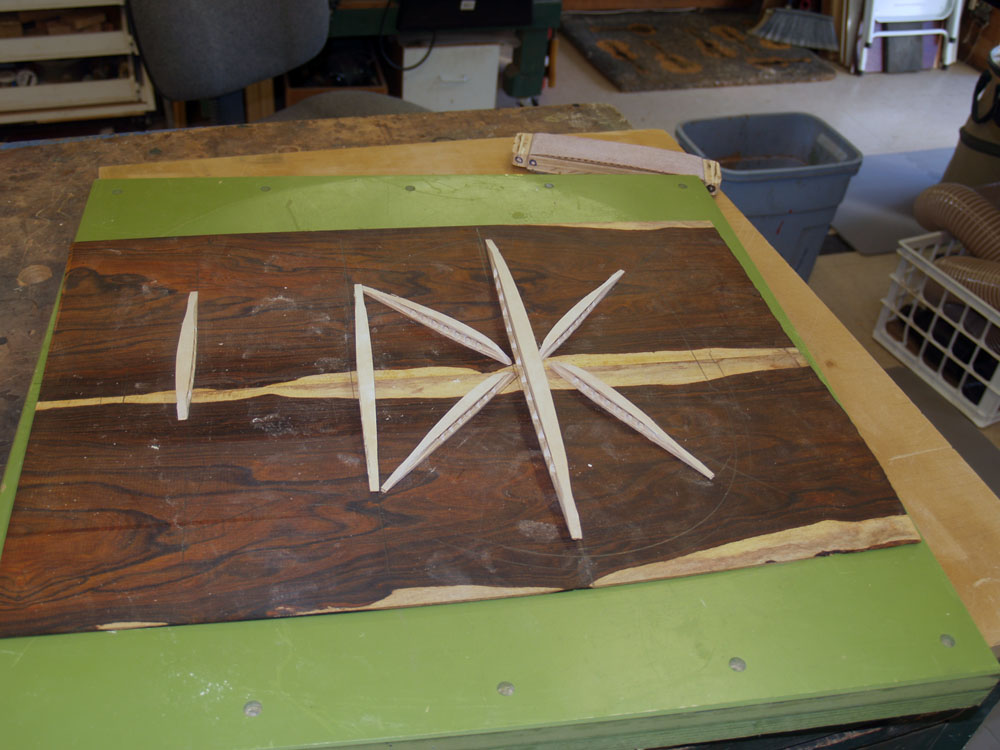

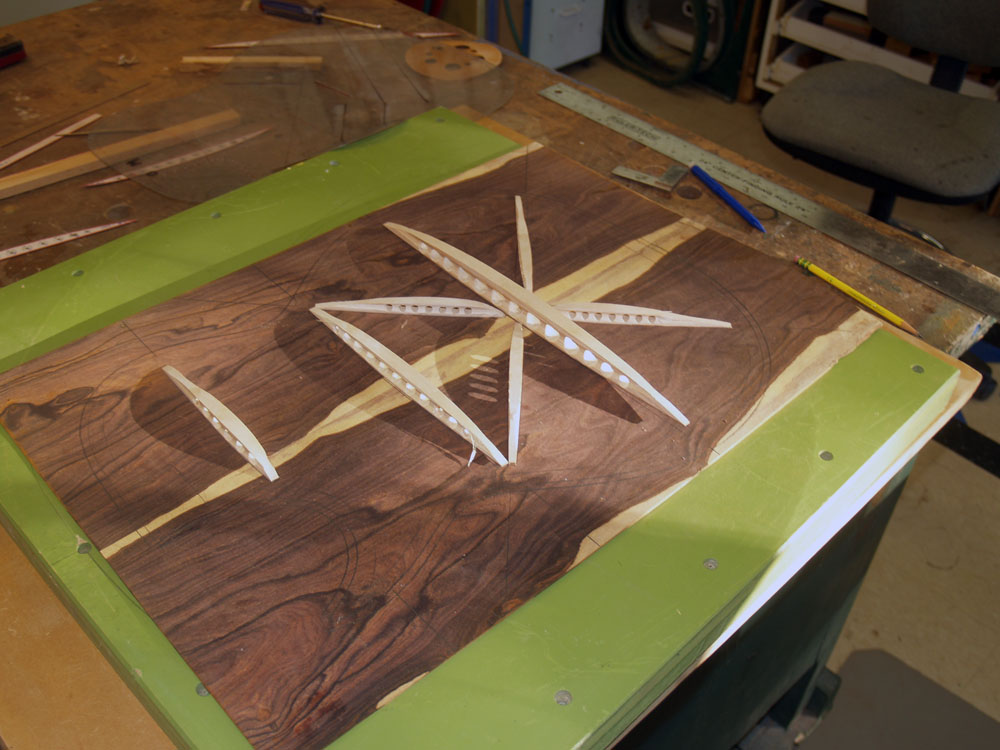

And laying out the the braces once again to check their fit. It was a beautiful spring day when I was working on this and you can see the sun shining in my open garage door. Hey, we get 300 days of sunshine in Portland, beleive me, I wouldn't fib to you now would I.

( 151 ) 17-Feb-2013

Now with the braces shaped I spend time sanding them smooth... Wayne Henderson will tell you that this helps the notes get out of the guitar better... who am I to argue with Wayne Henderson.

( 152 ) 17-Feb-2013

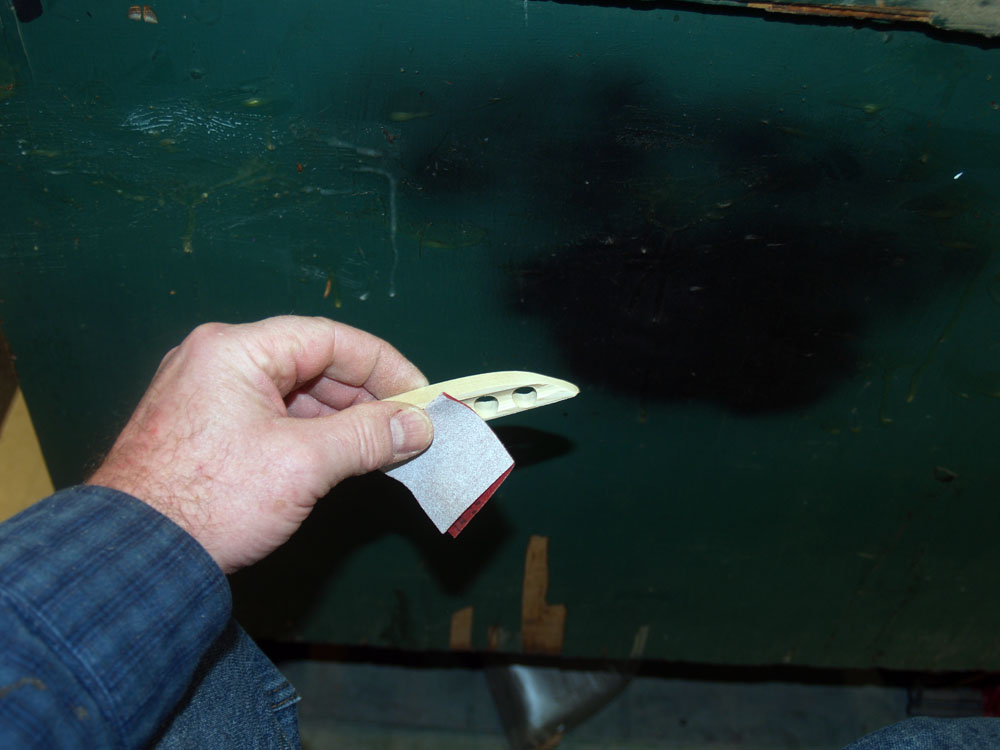

A bit of hand work with a piece of sandpaper.

( 153 ) 17-Feb-2013

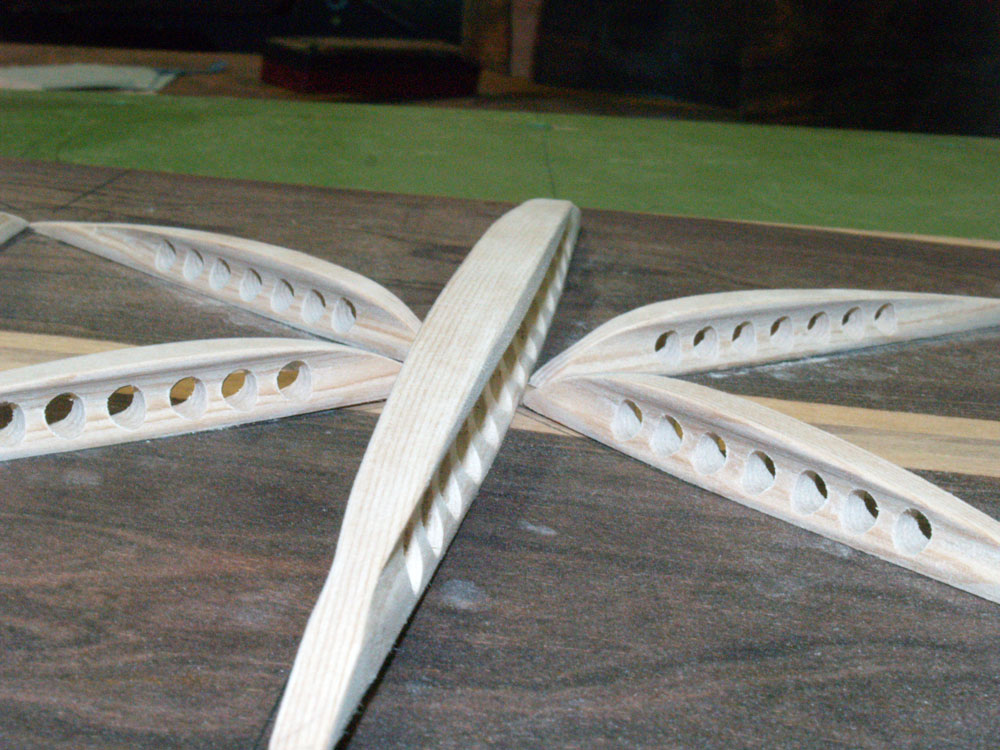

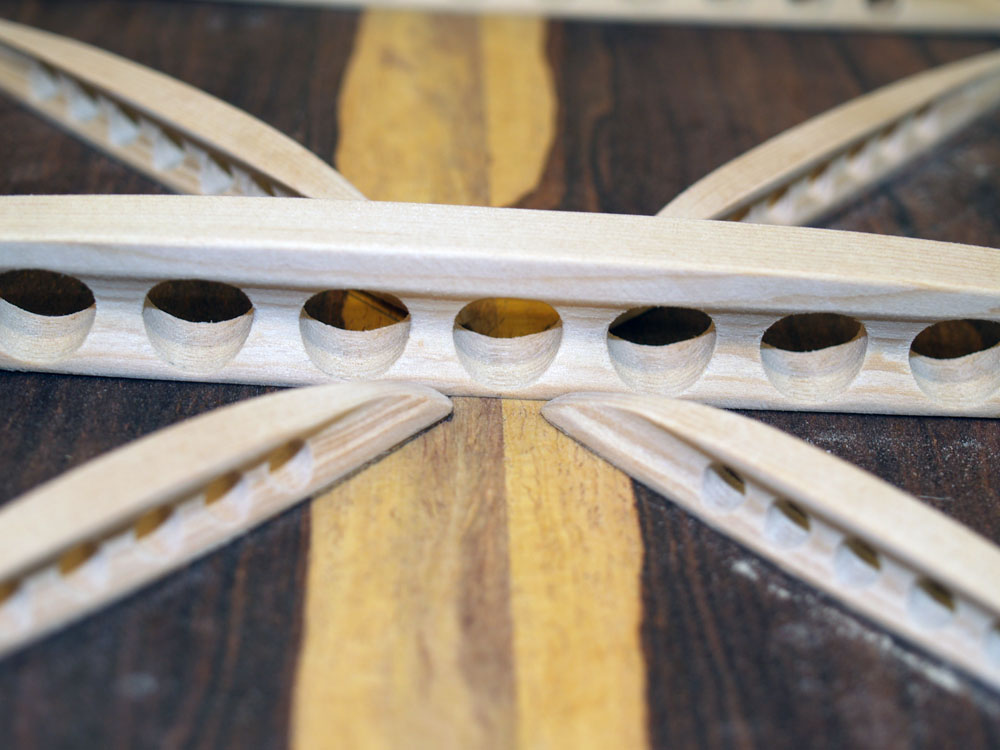

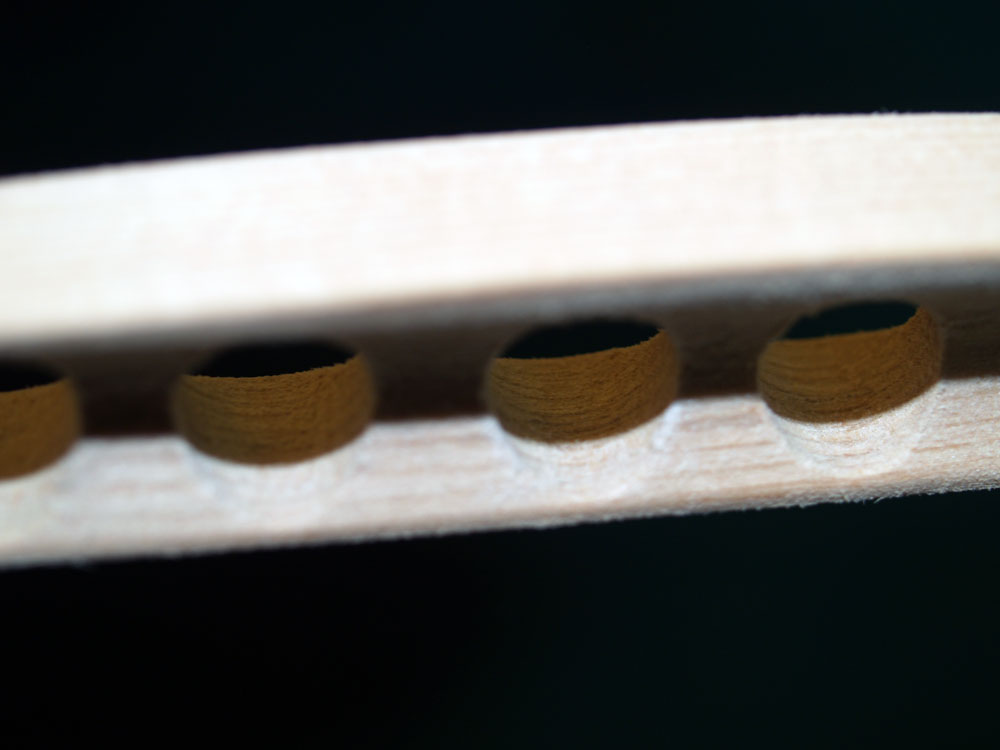

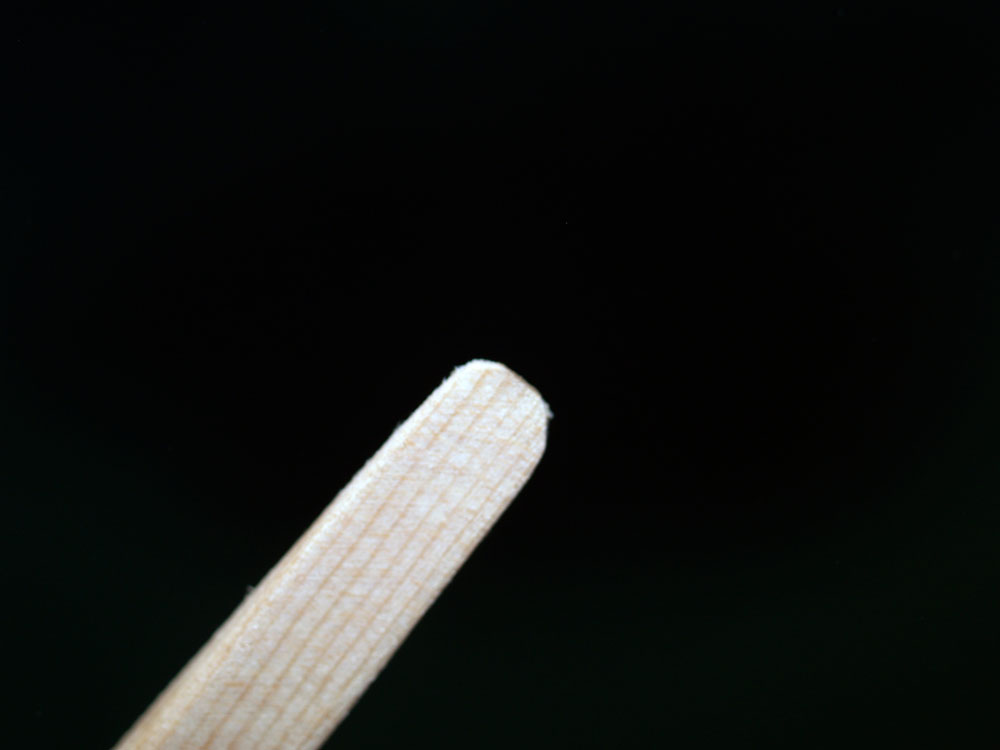

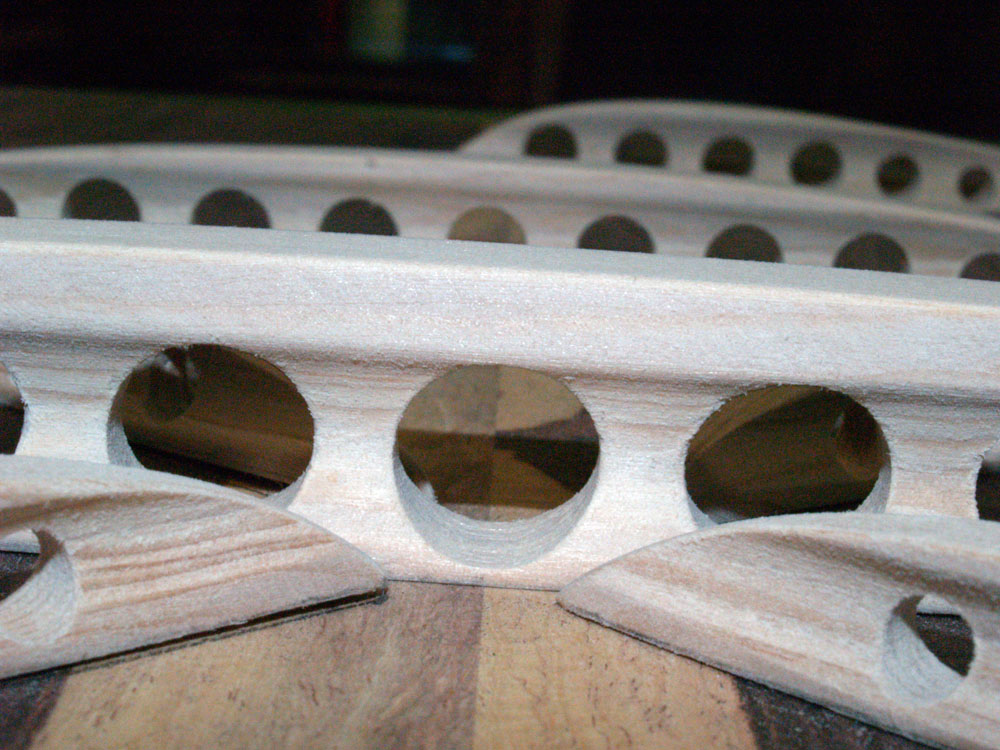

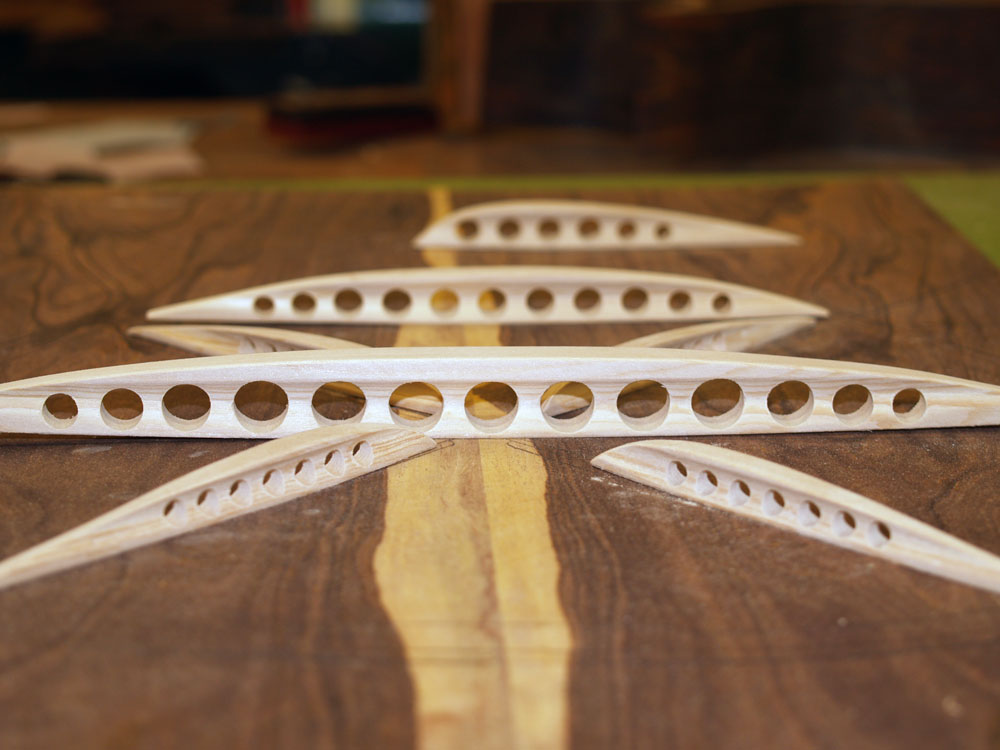

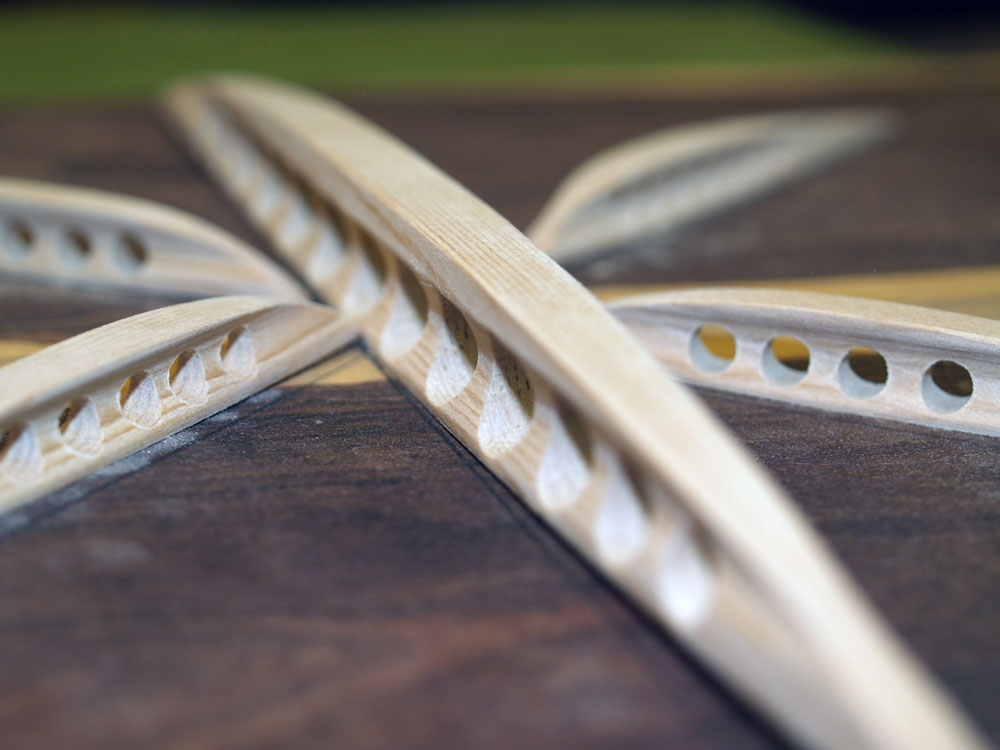

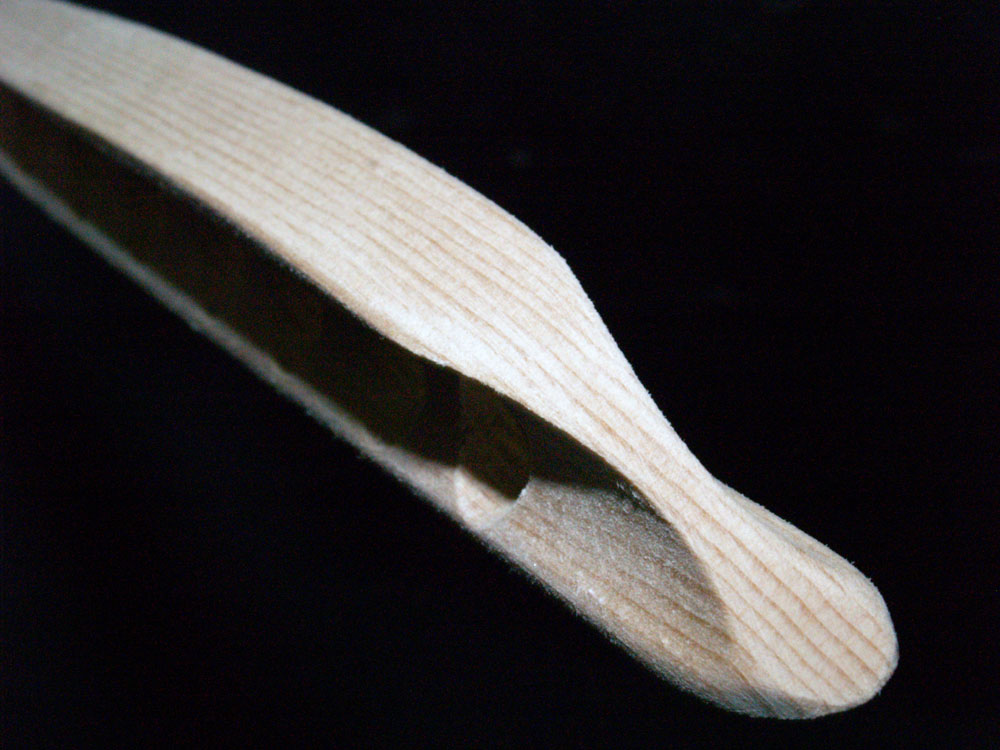

When I am finished we end up with little bits of beautifully sculpted spruce. Following are a few art shots of the back braces.

( 154 ) 17-Feb-2013


( 155 ) 17-Feb-2013


( 156 ) 17-Feb-2013


( 157 ) 17-Feb-2013


( 158 ) 17-Feb-2013


( 159 ) 17-Feb-2013


( 160 ) 17-Feb-2013


( 161 ) 17-Feb-2013

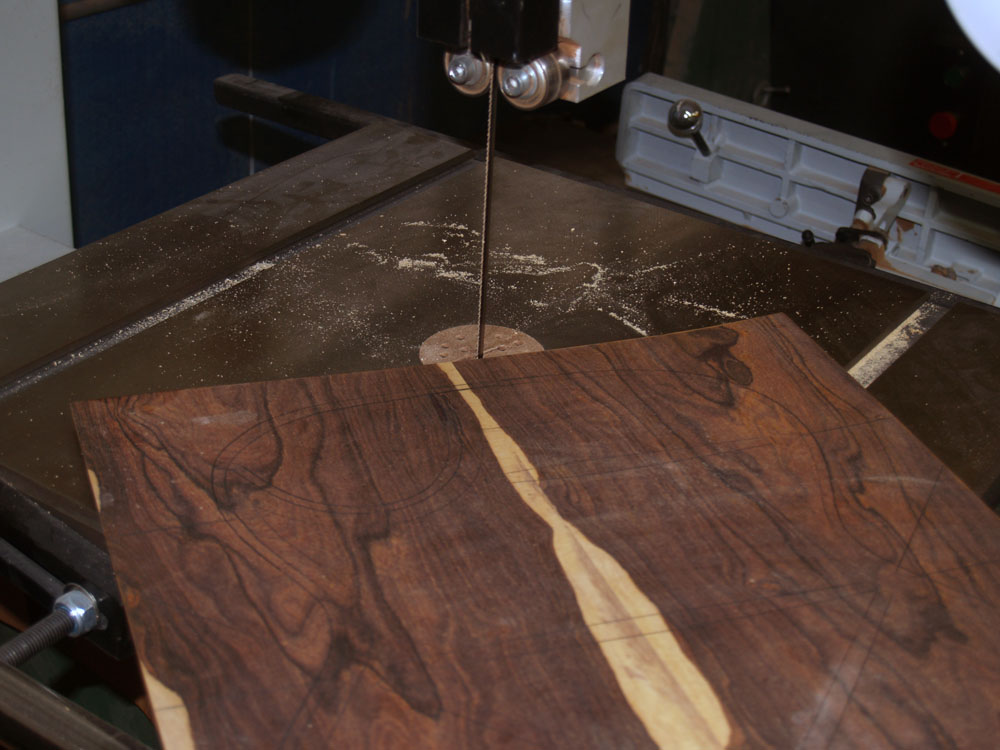

Now I am ready to rough out the back plate with my bandsaw.

( 162 ) 17-Feb-2013

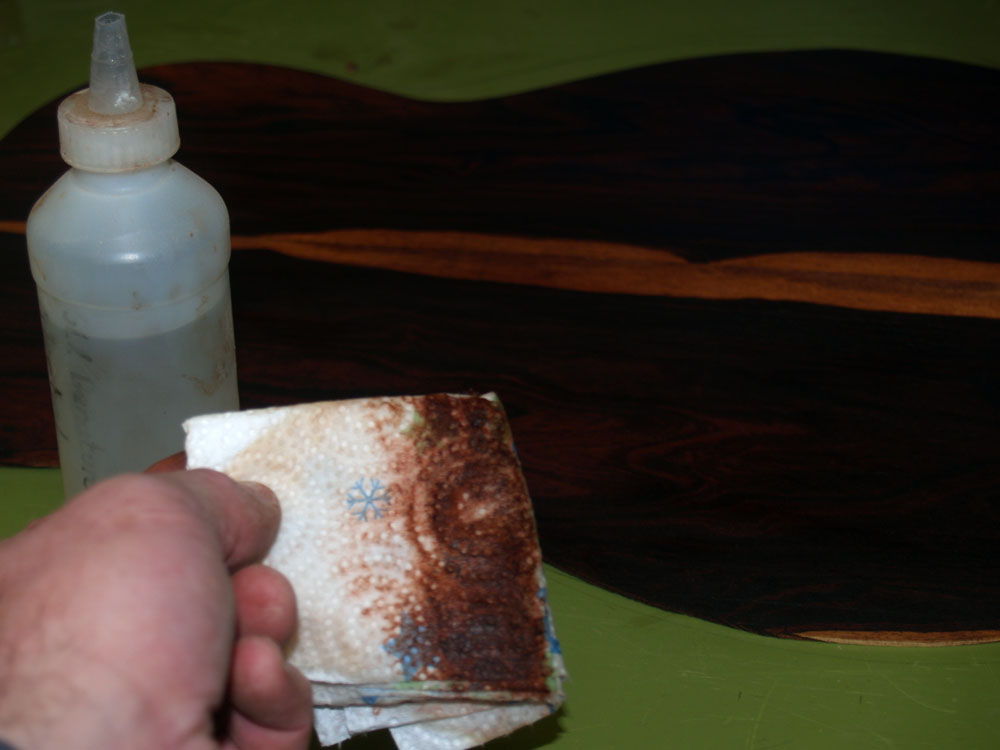

Cocobolo is a very oily wood. To ensure we get a good glue joint the oils near the surface need to be prepared. Alcohol is used to wipe down the surface causing the oils to crystallize. This will allow the glue to penetrate the surface and form a good bond.

( 163 ) 17-Feb-2013

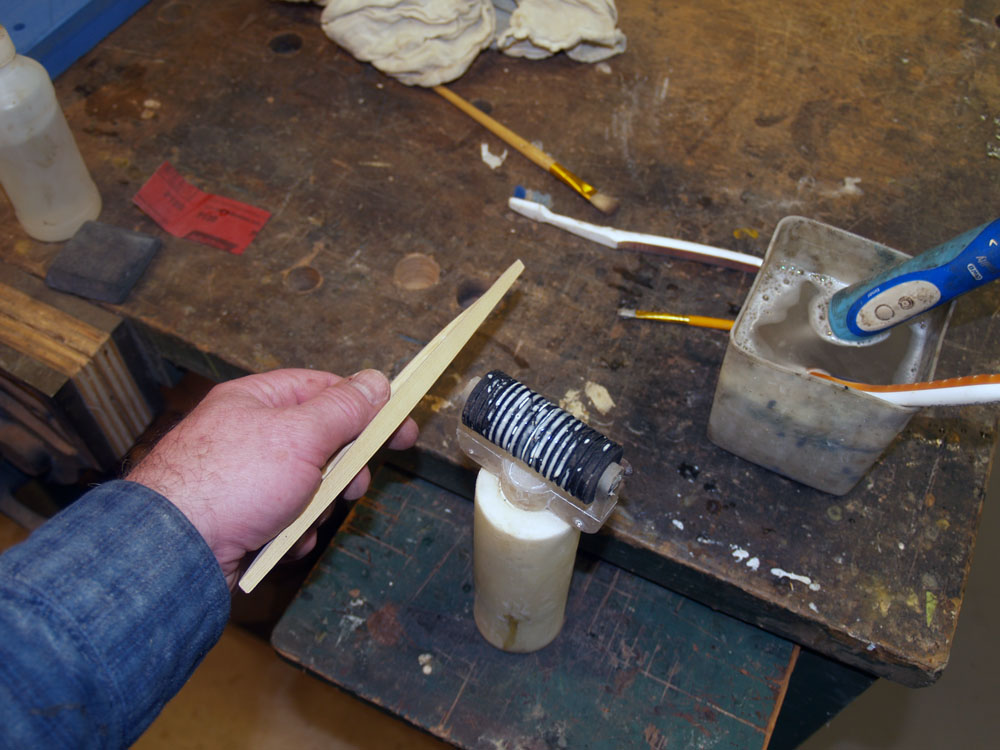

I like to apply a stoichiometric amount of glue to the bottom of the braces... not too little, not too much.

( 164 ) 17-Feb-2013

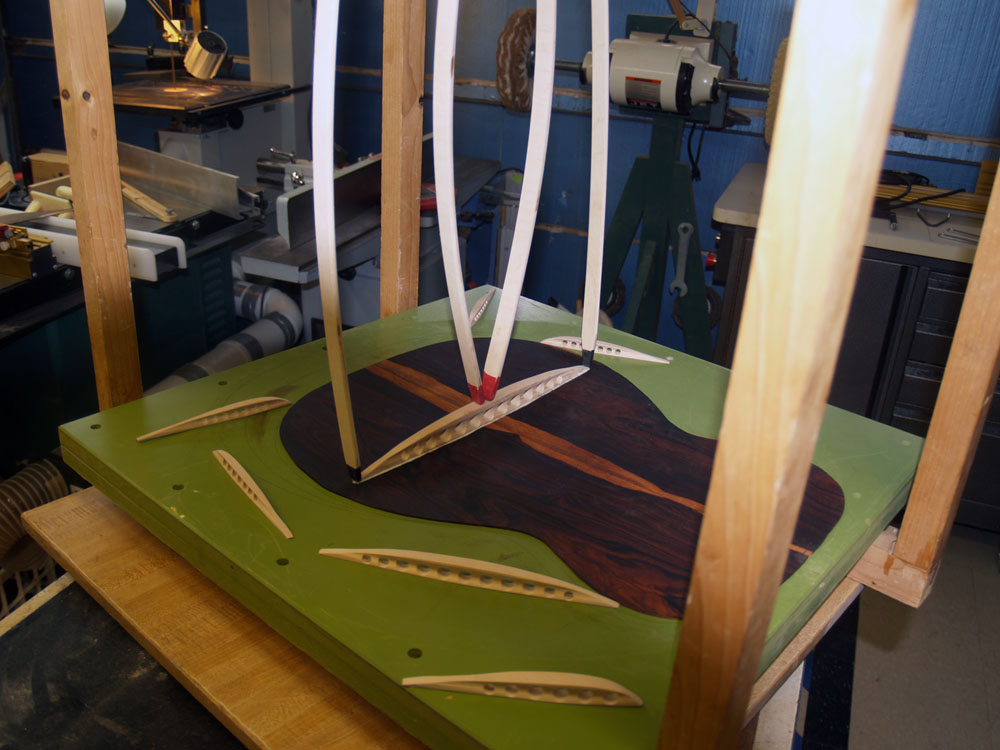

To glue the braces in place I use a go-box and go-sticks. The back plate is centered in the sanding bowl that has the shape of the back I am after. In this case the bowl has a 16 foot radius of curvature. The go-sticks press the braces into the back and the back into the bowl.

( 165 ) 17-Feb-2013

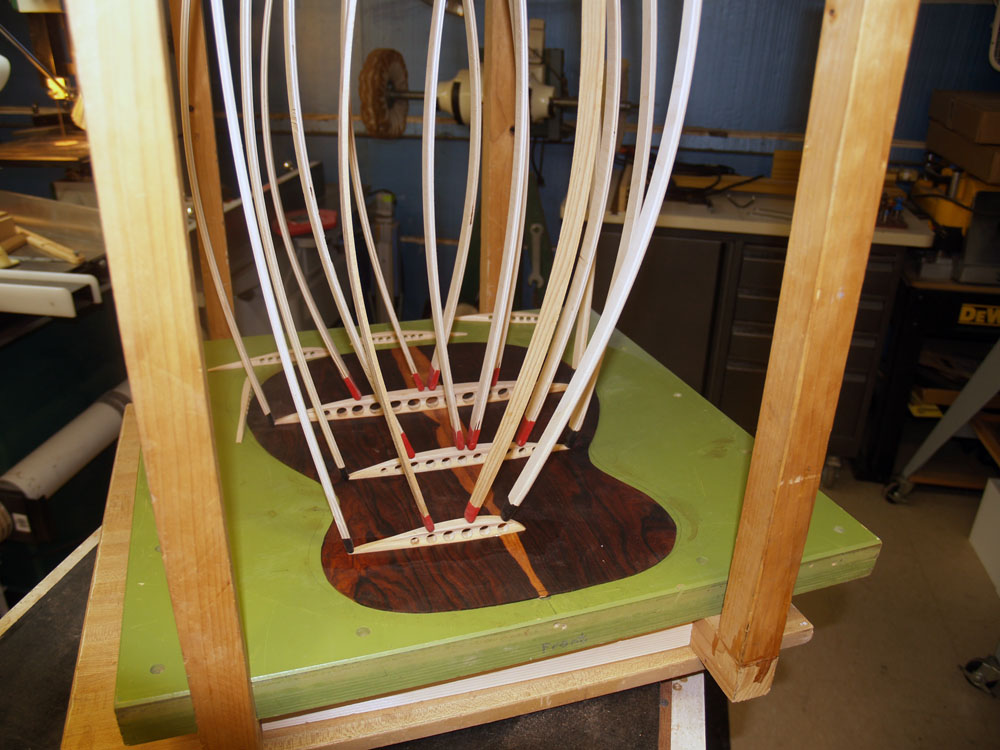

Lots of go-sticks. The sticks with the black tips are stiffer than the sticks with the red tips. The tips are made of rubber so I don't crush the braces.

( 166 ) 17-Feb-2013

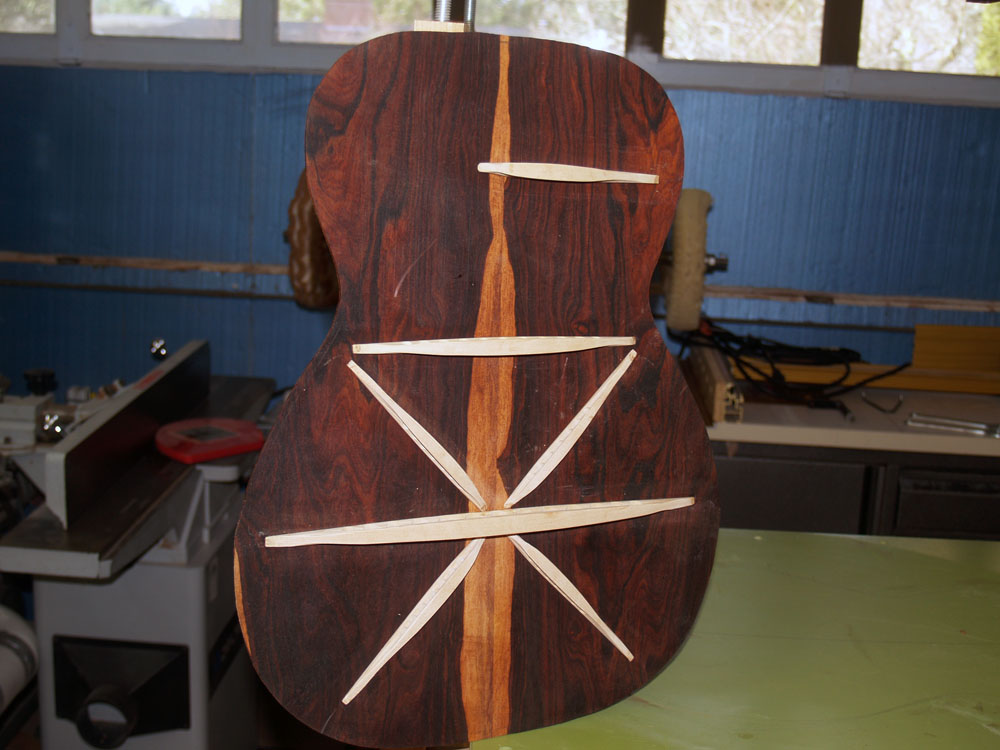

After the glue cures over night. I won't remove the cutaway section until I am ready to glue the back onto the rims.
