Finished Build

Classical Model Sympitar Cutaway

CLSyC 2.1.67

  • Body: Flamed Walnut
  • Top: Sitka Spruce
  • Neck: Mahogany
  • Fretboard: Ebony

Page 6

( 250 ) 1-Feb-2016

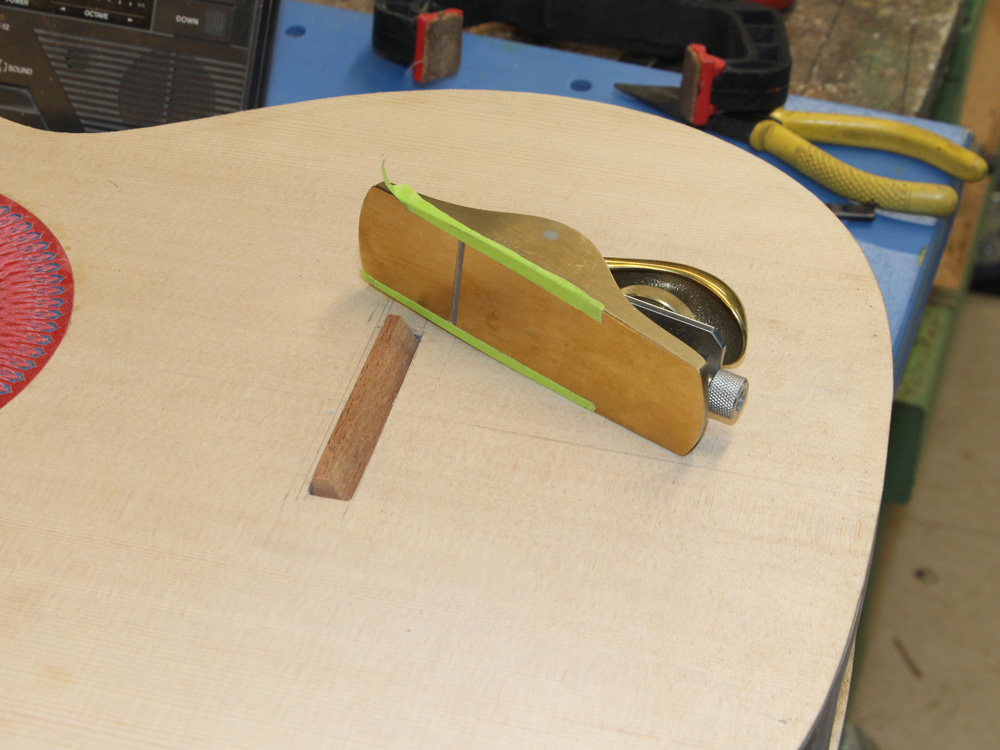

I used this very nice plane that was gifted to me by my dear friend Gary C. to trim down the under bridge saddle that guides the sympathetic strings below the top.

( 251 ) 1-Feb-2016

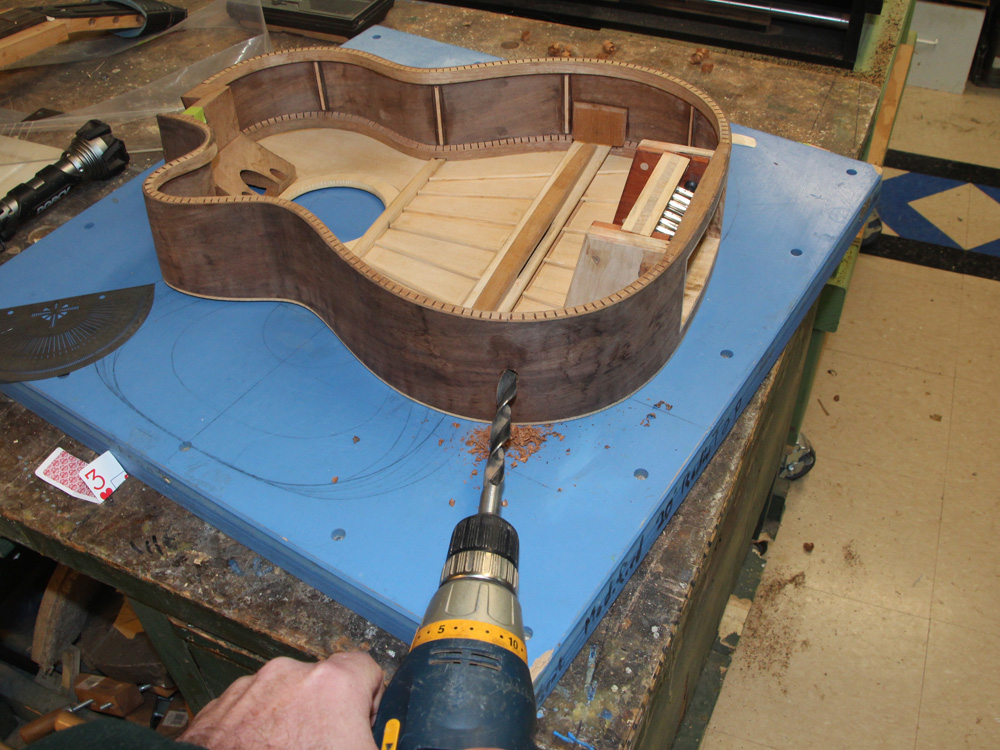

This guitar will have a pickup installed. Here I am drilling the hole for the 1/4 inch phono jack.

( 252 ) 1-Feb-2016

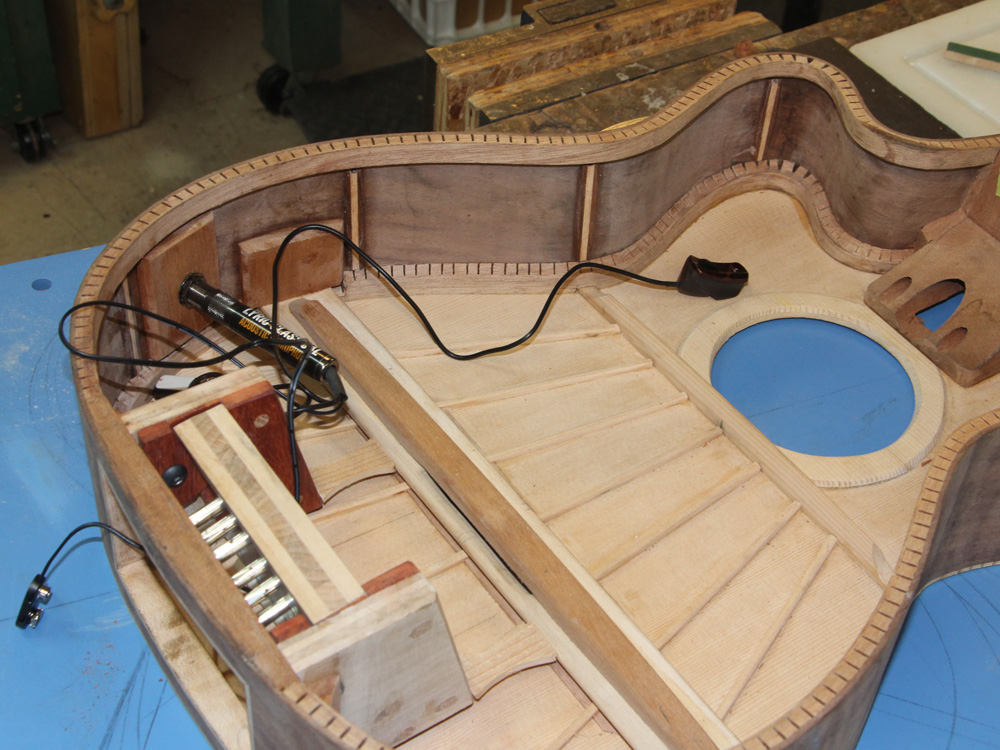

And here I am testing the placement of the electronics.

( 253 ) 1-Feb-2016

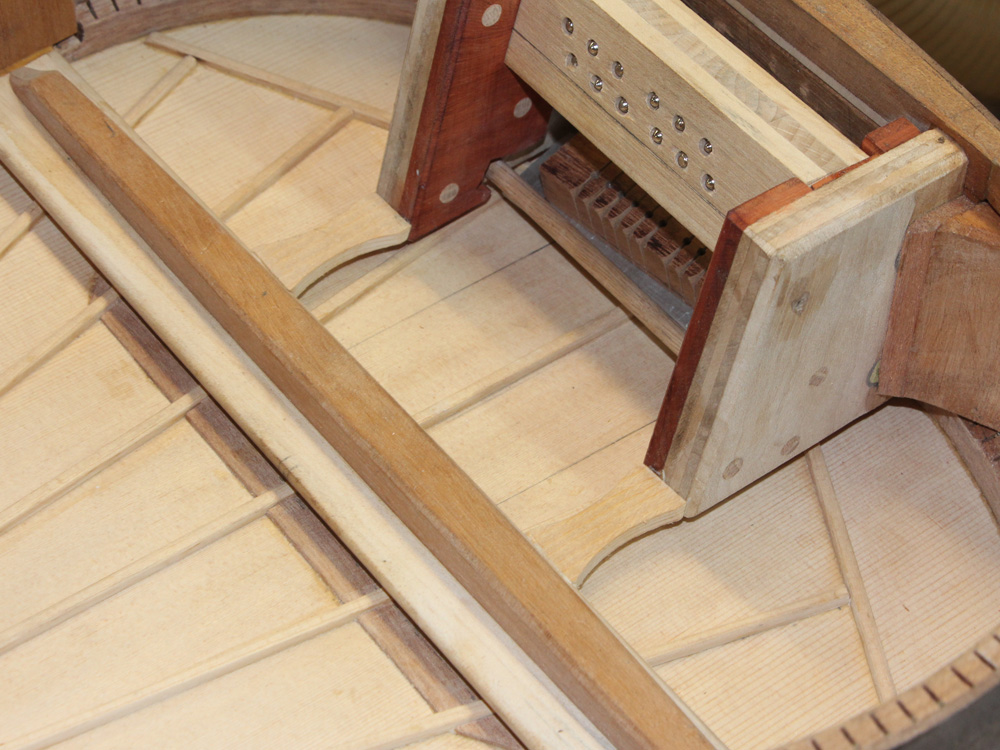

The sympathetic string tuning bracket will have a considerable torque applied to it. I have installed a bridge between the bracket and the internal cross bar to help ensure it doesn't rotate under the tension of its strings.

( 254 ) 1-Feb-2016

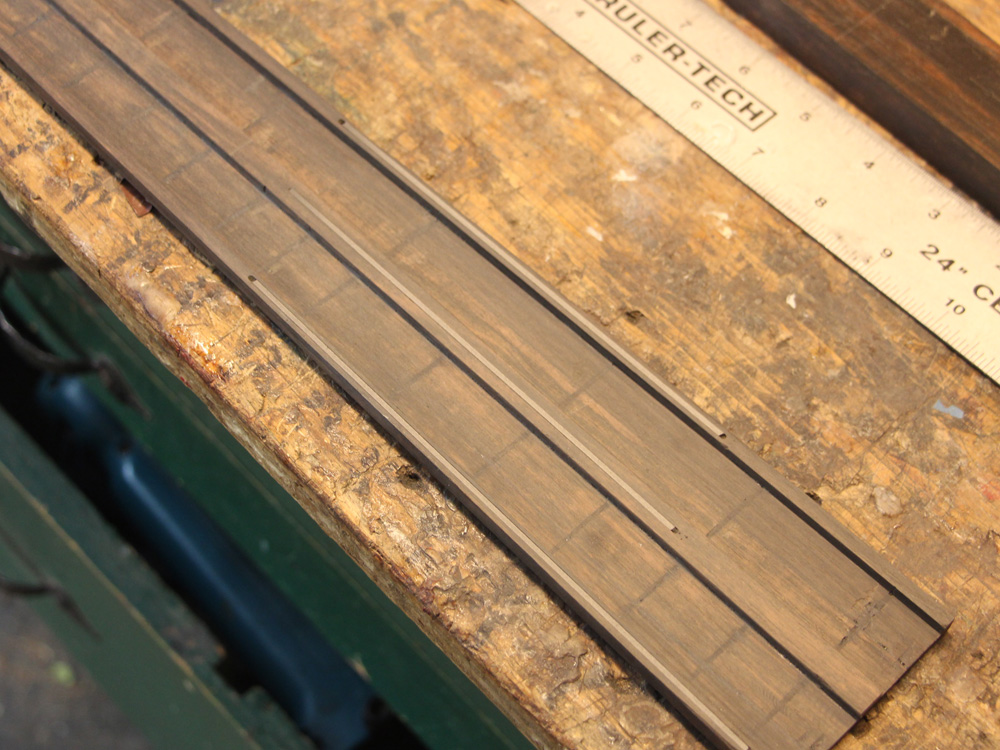

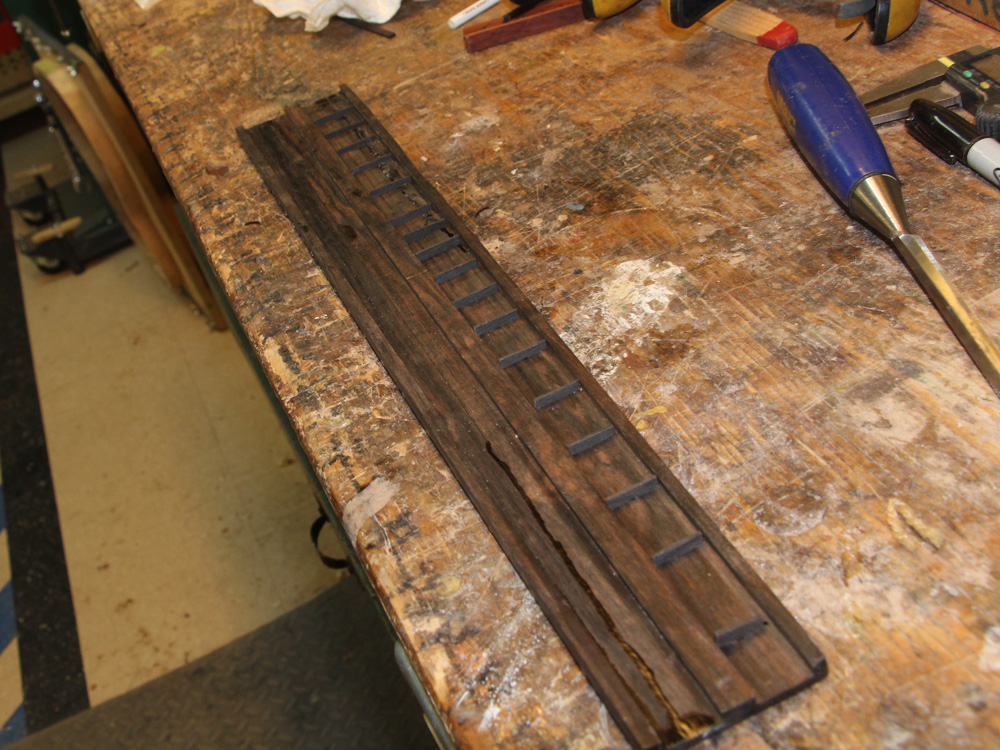

To ensure the fretboard remains stable I have installed several ebony cross bars to tie it together.

( 255 ) 1-Feb-2016

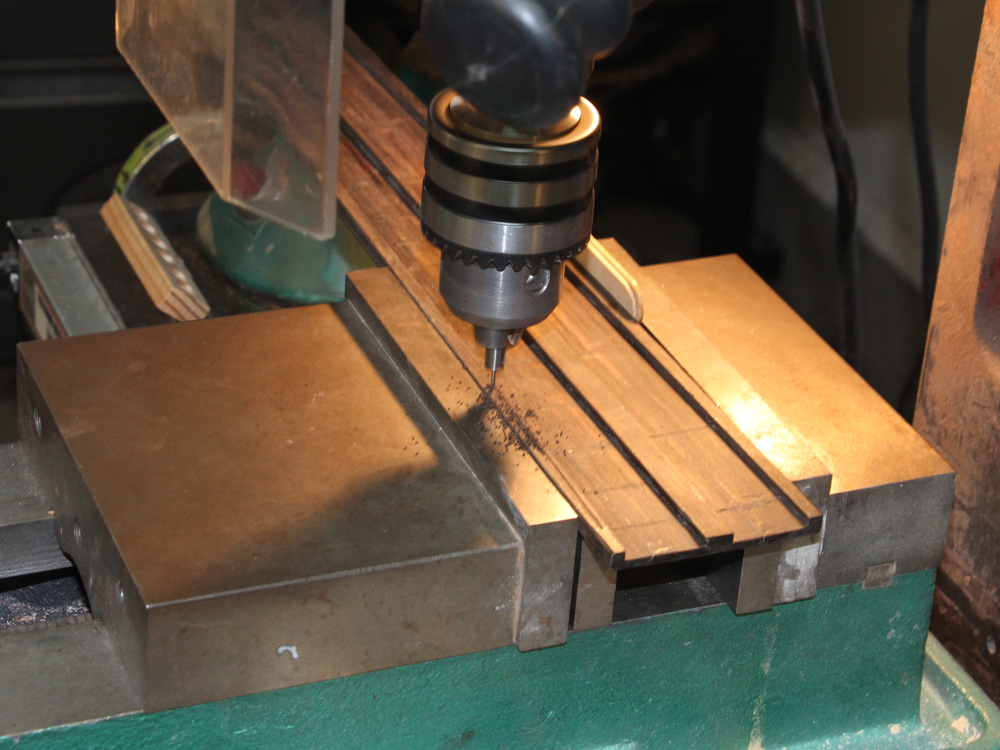

And to improve the stability of the cantilevered section I am installing carbon fiber reinforcements.

( 256 ) 1-Feb-2016


( 257 ) 1-Feb-2016

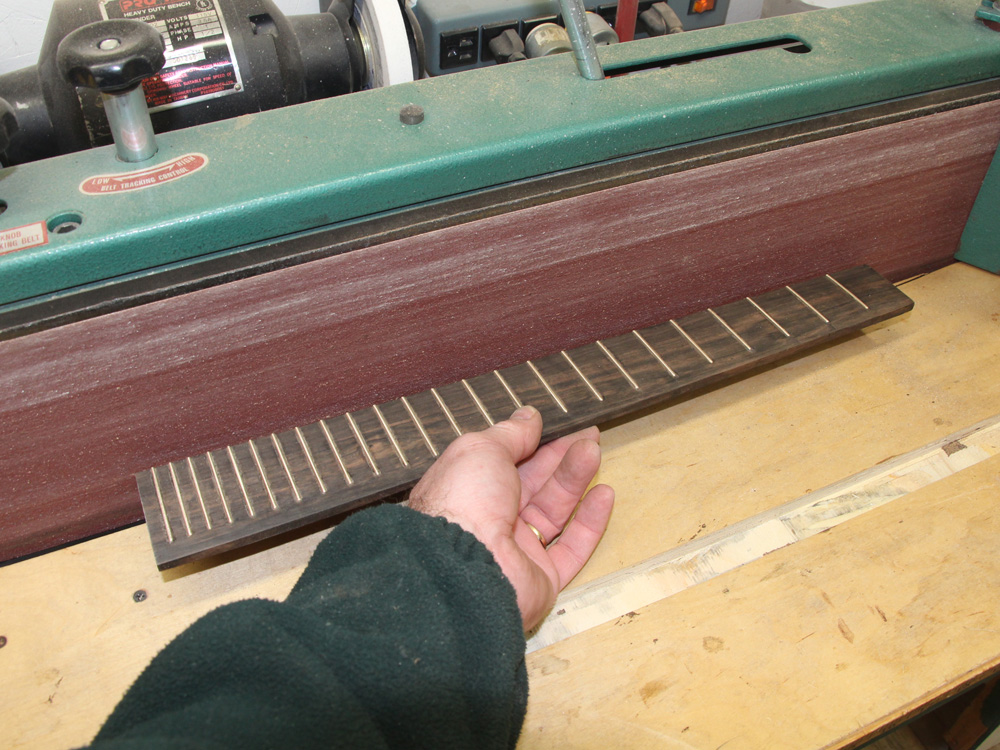

Now I use the belt sander to trim the fretboard to size.

( 258 ) 1-Feb-2016

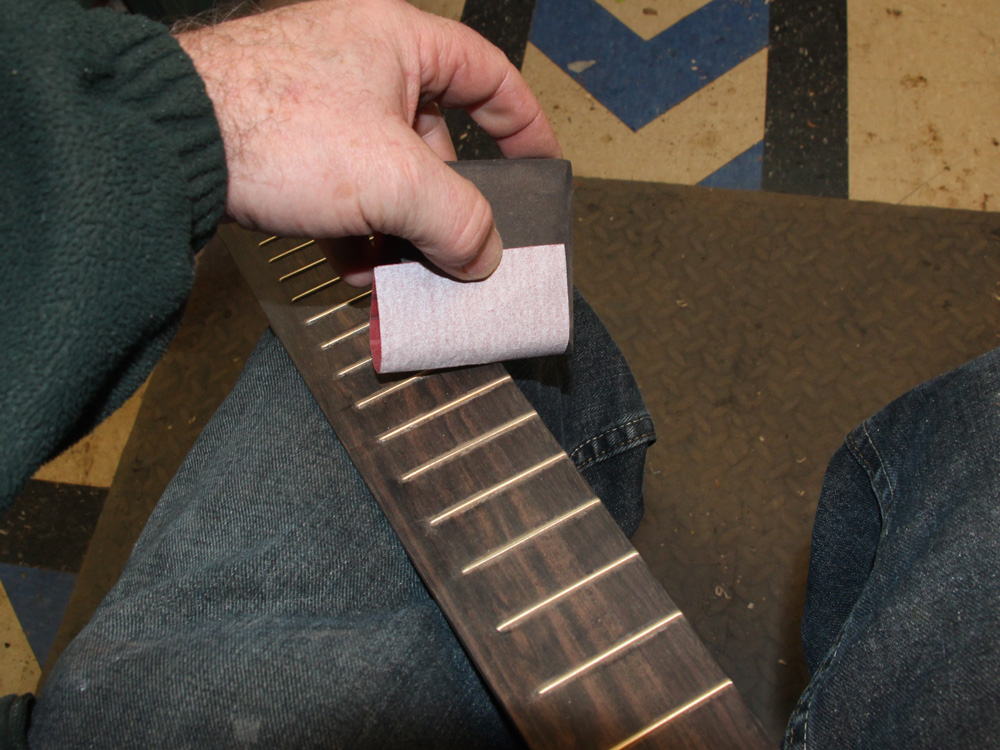

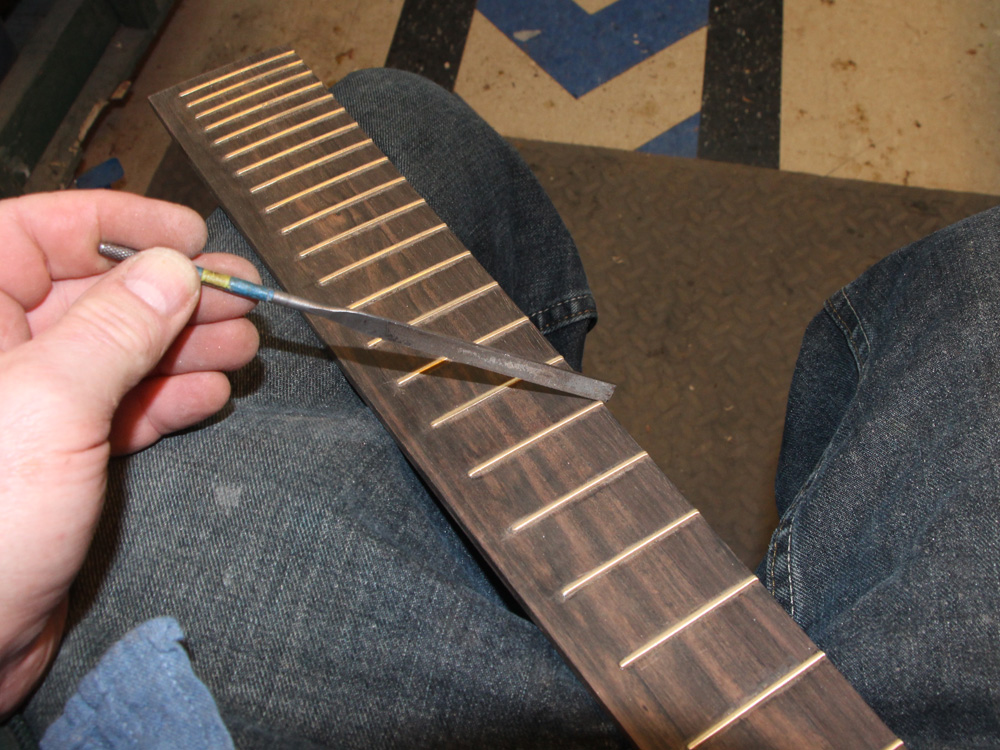

And then a bit if hand work to dress the ends of the fretwire.

( 259 ) 1-Feb-2016

I strive to create hemispherical ends on the fretwire.

( 260 ) 1-Feb-2016

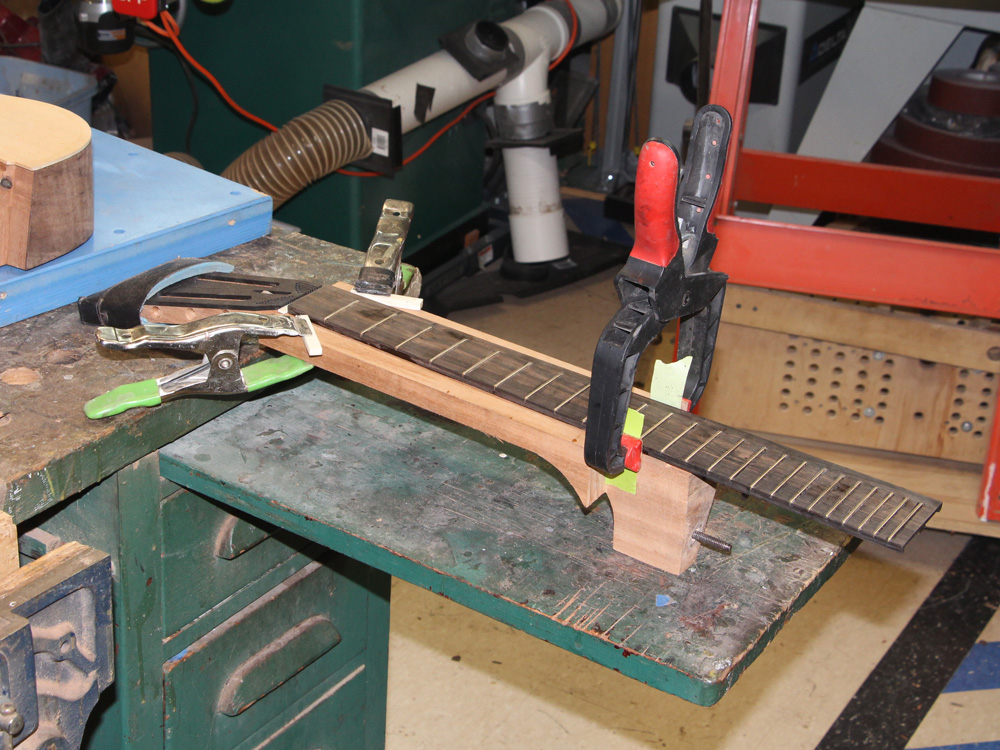

I next align the fretboard on the neck blank.

( 261 ) 1-Feb-2016

And then glue it in place with epoxy.

( 262 ) 1-Feb-2016

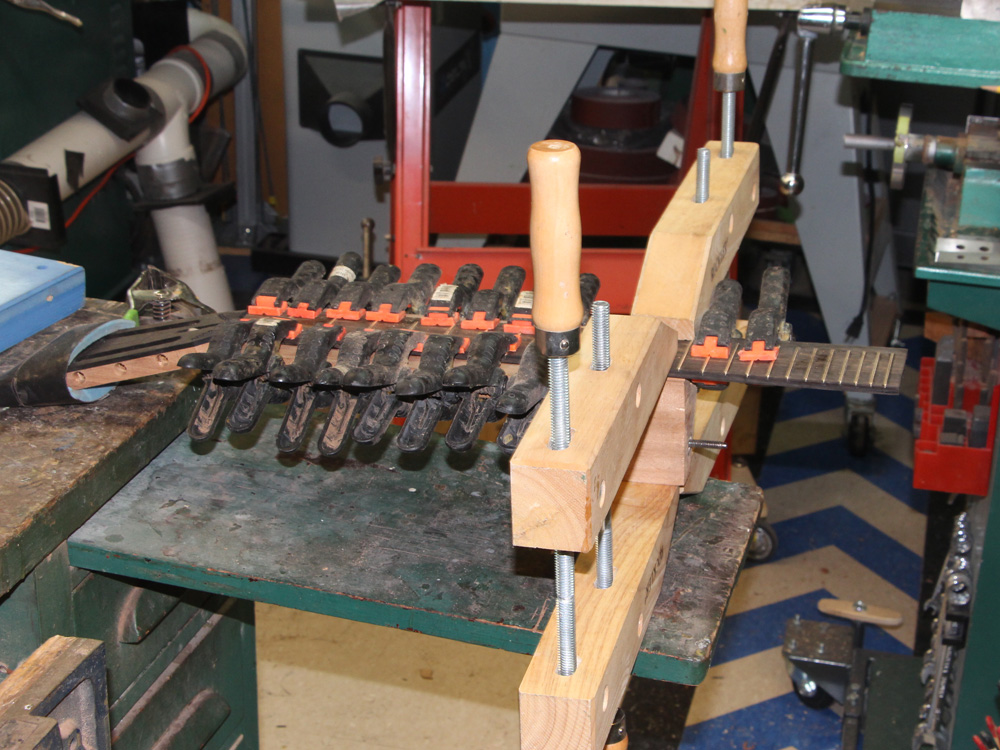

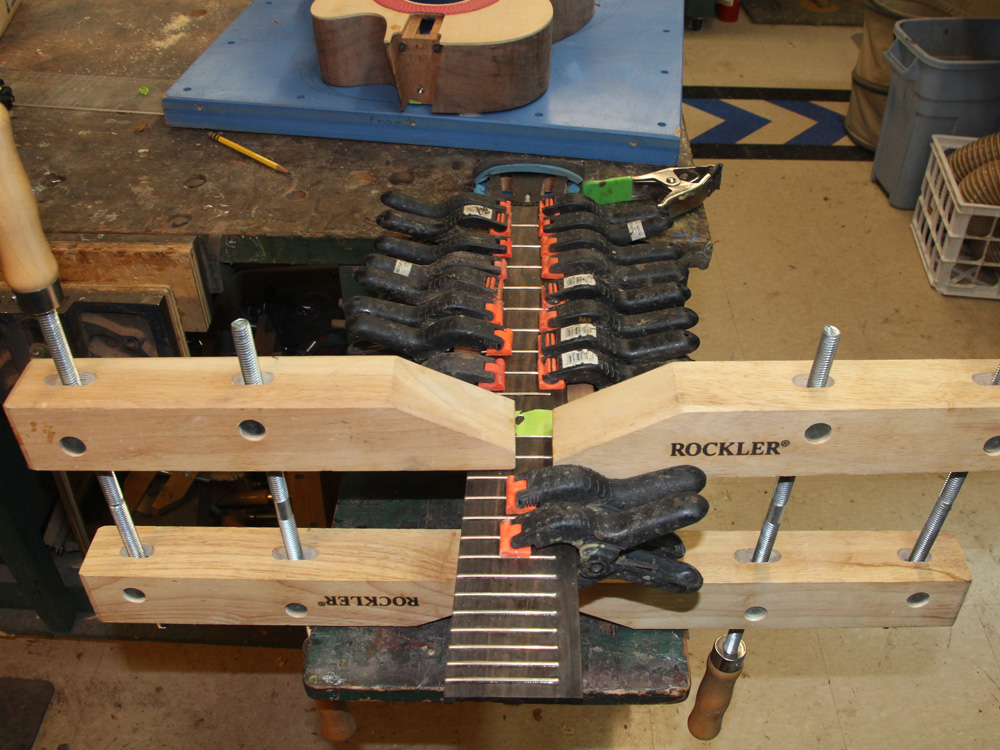

I use lots of clamps to get even pressure.

( 263 ) 1-Feb-2016

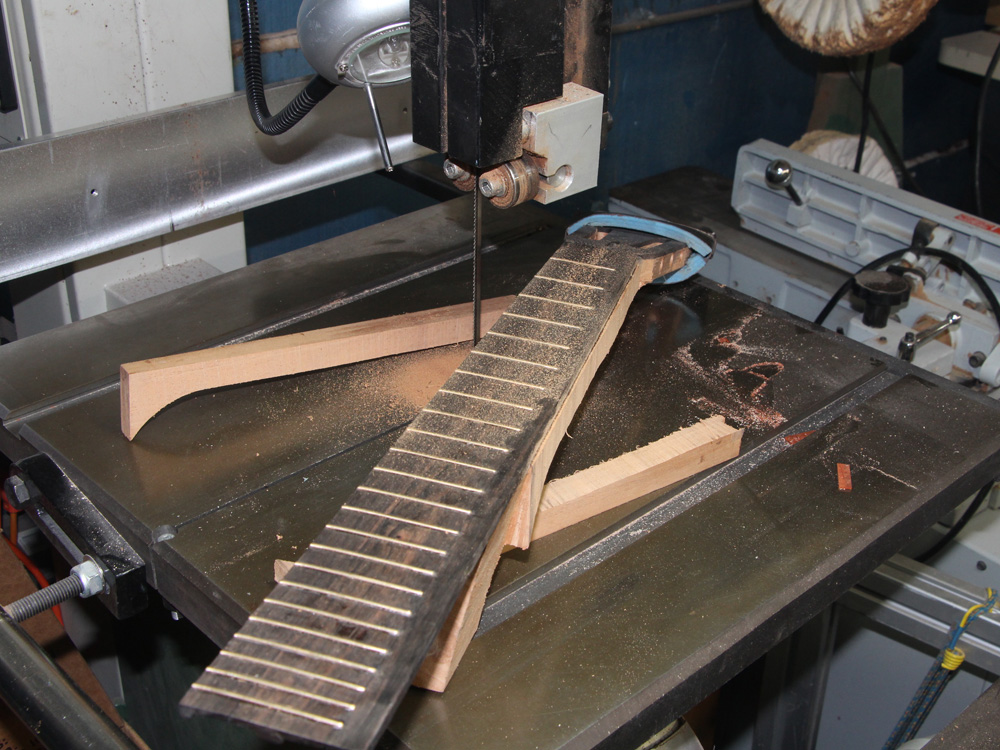

After the fretboard is set I trim off the excess of the neck blank.

( 264 ) 1-Feb-2016

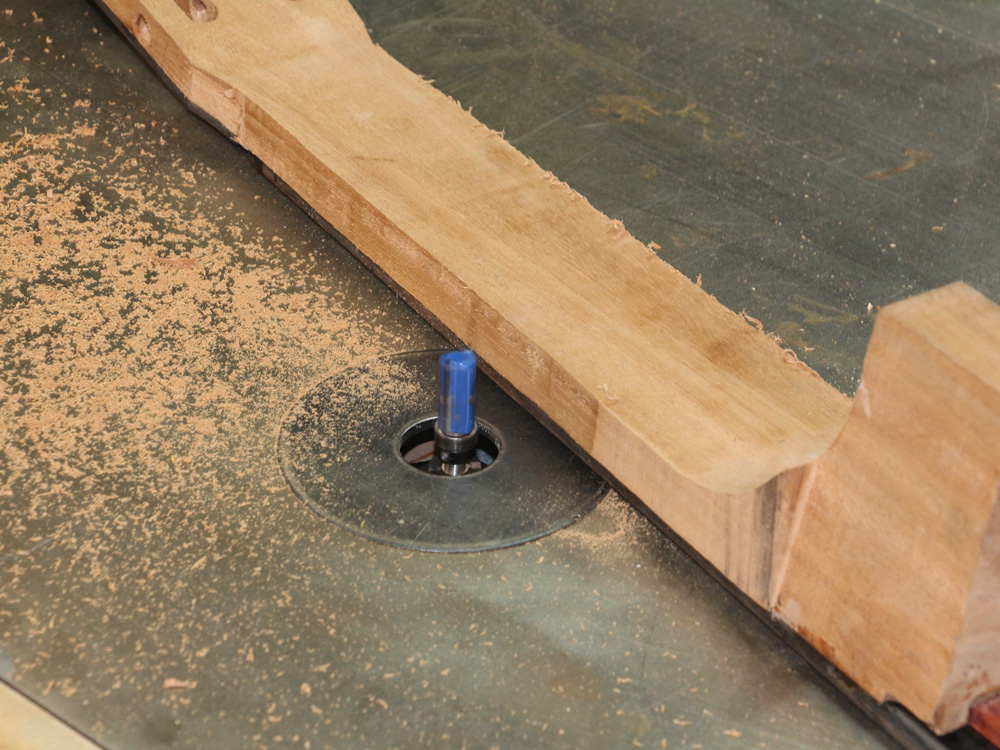

And then use the router to bring the edges flush with the fretboard.

( 265 ) 1-Feb-2016

My customer Ben C. giving it a test drive.

( 266 ) 1-Feb-2016

Before I glue the back on to the rim I used the CNC tool to create the contra-rosette. Here I am sanding the back to of the contra-rosette to match the shape of the back.

( 267 ) 1-Feb-2016

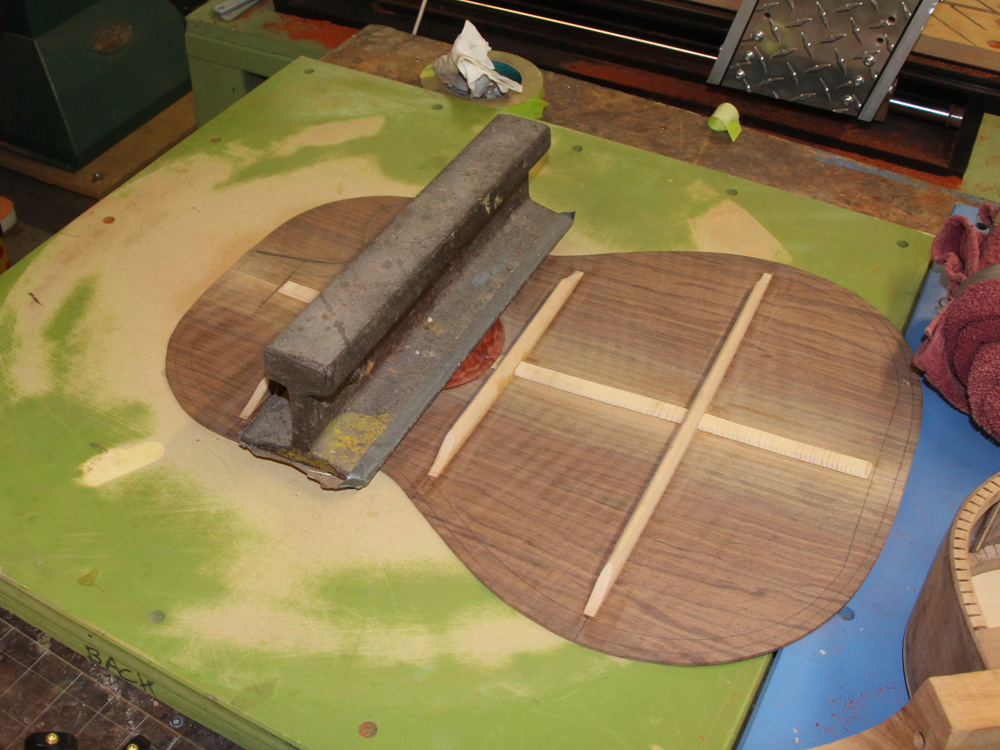

A bit of old (thanks gram pa) railroad tie holds the contra-rosette in place as it is glue onto the back.

( 268 ) 1-Feb-2016


And then I trimmed away the cutaway section.

( 269 ) 1-Feb-2016


( 270 ) 1-Feb-2016

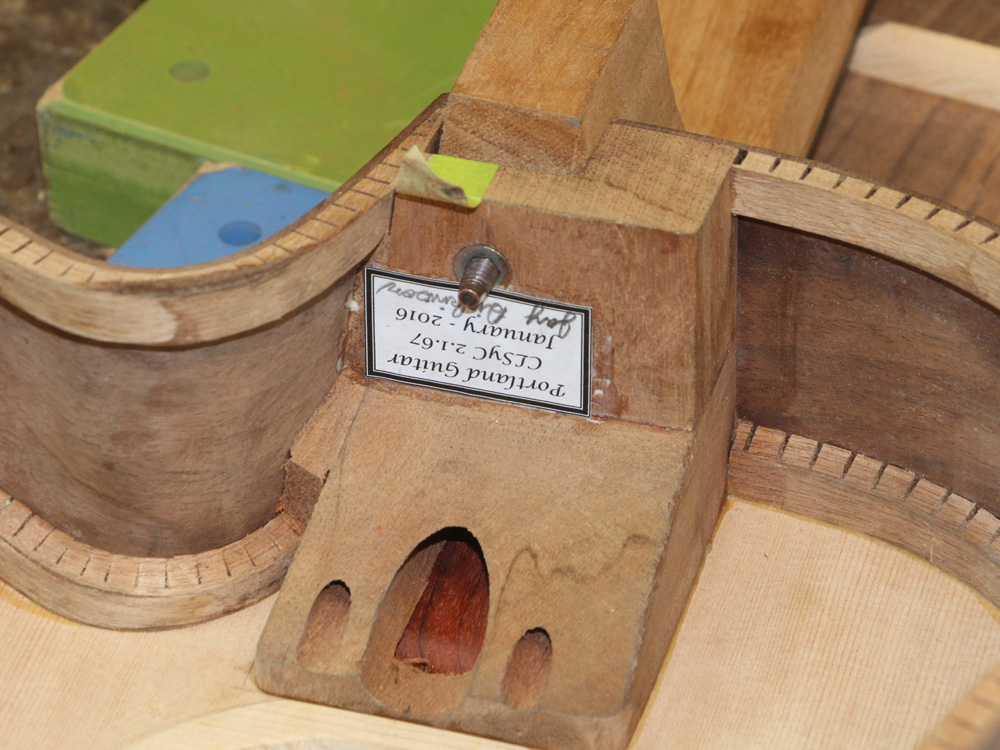

Before gluing the back on I installed the label.

( 271 ) 1-Feb-2016

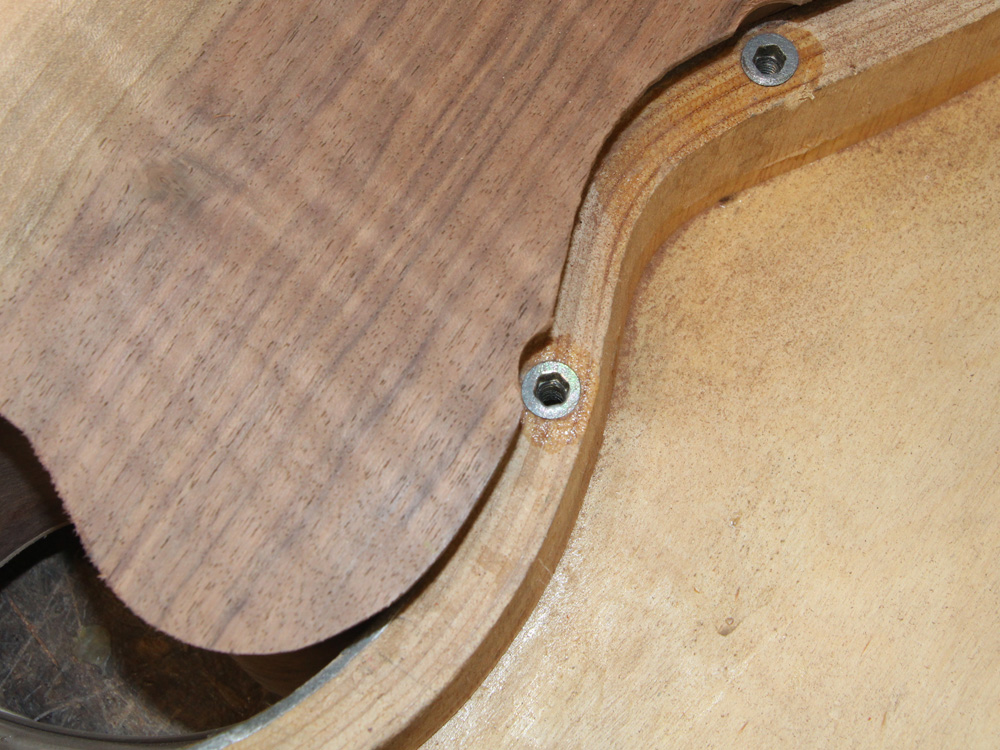

First I position the back on the rim.

( 272 ) 1-Feb-2016

I then make sure I have clear access to the side form.

( 273 ) 1-Feb-2016

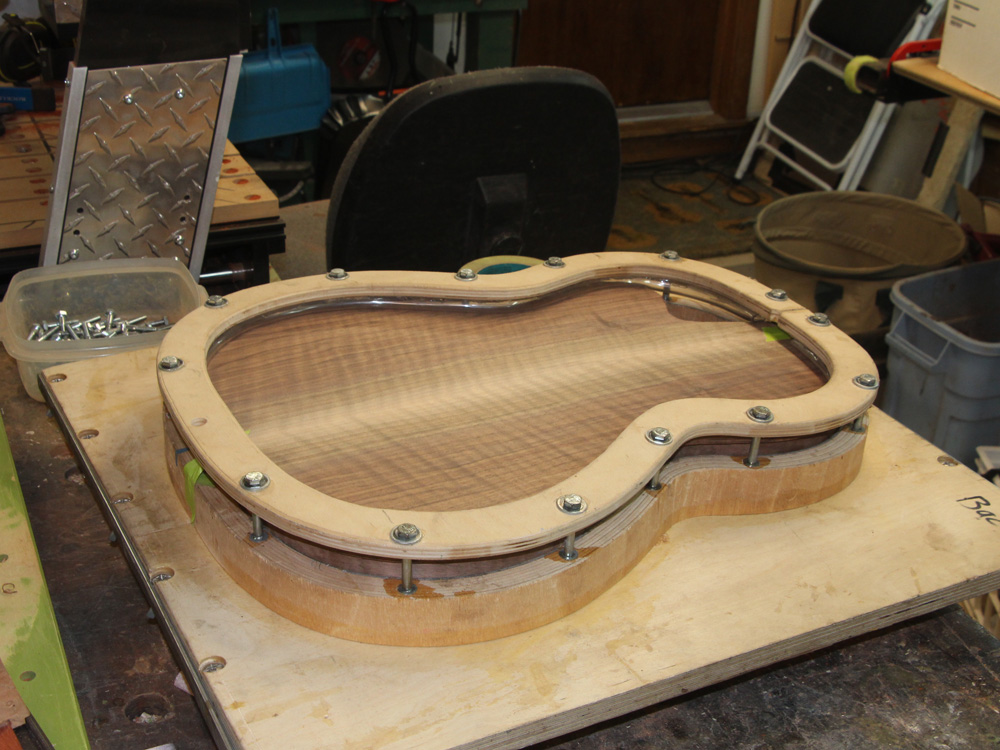

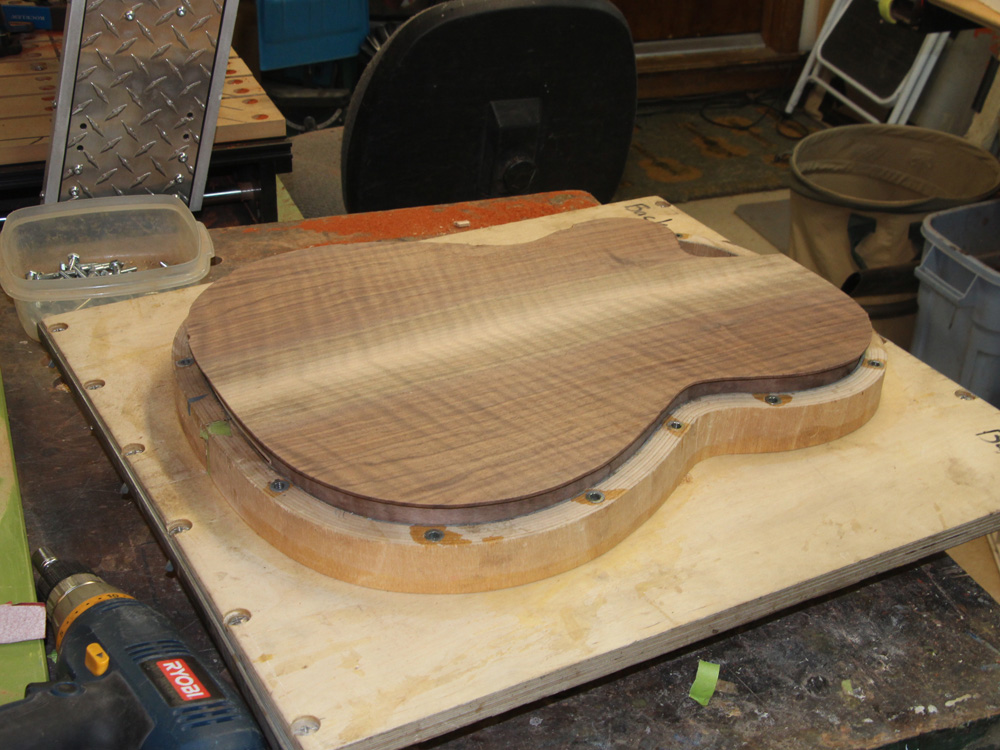

After spreading a thin layer of glue on the edge of the rim I place the back and the flange in place and tighten it down.

( 274 ) 1-Feb-2016

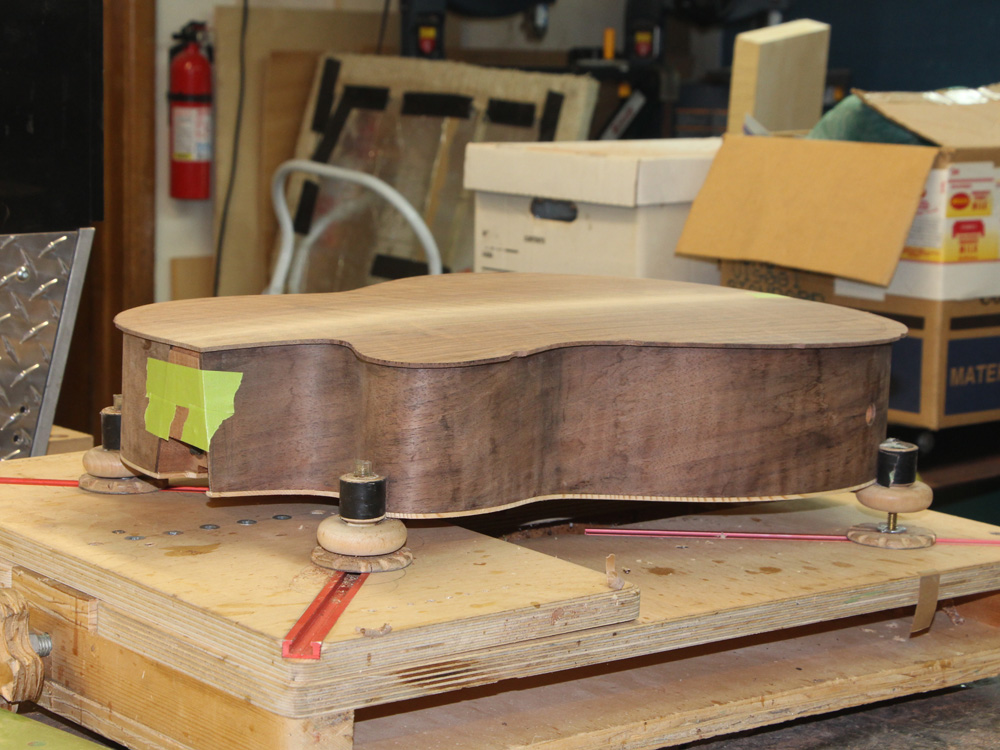

When the glue is set I remove the flange.

( 275 ) 1-Feb-2016

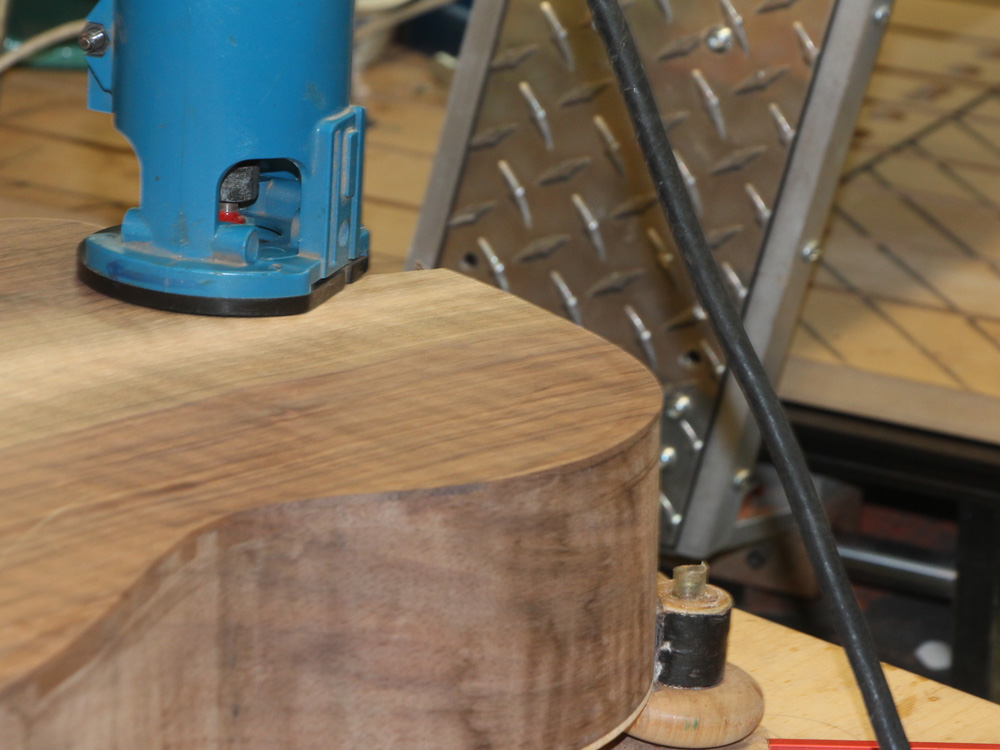

And then I use an edge router to trim off the excess.

( 276 ) 1-Feb-2016

Now, on to shaping the neck.

( 277 ) 1-Feb-2016

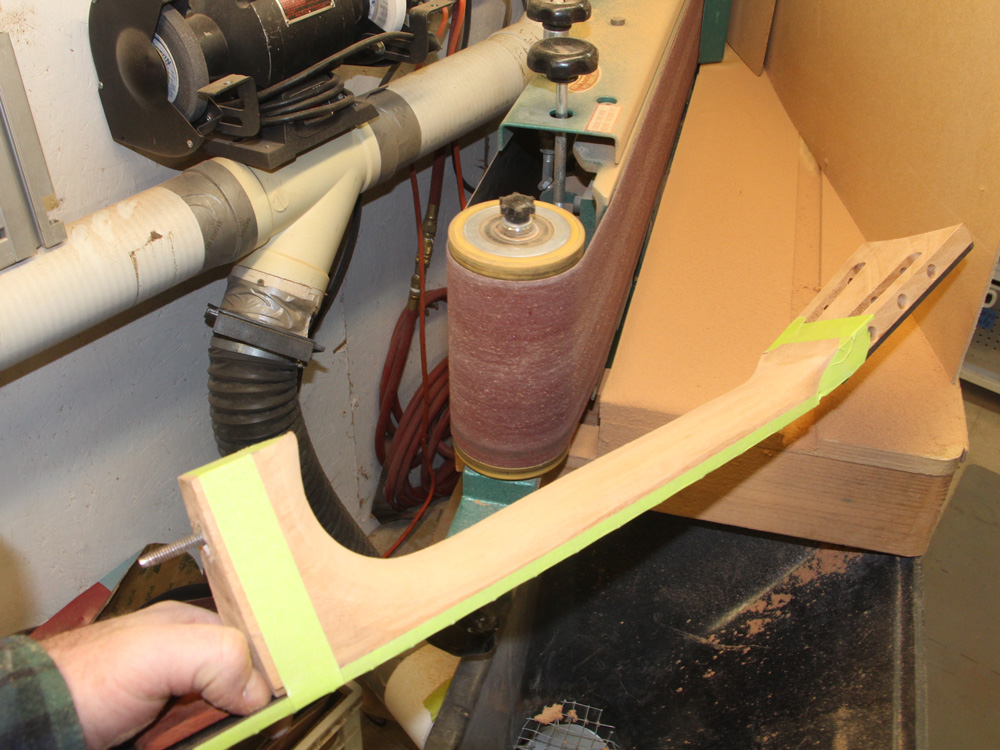

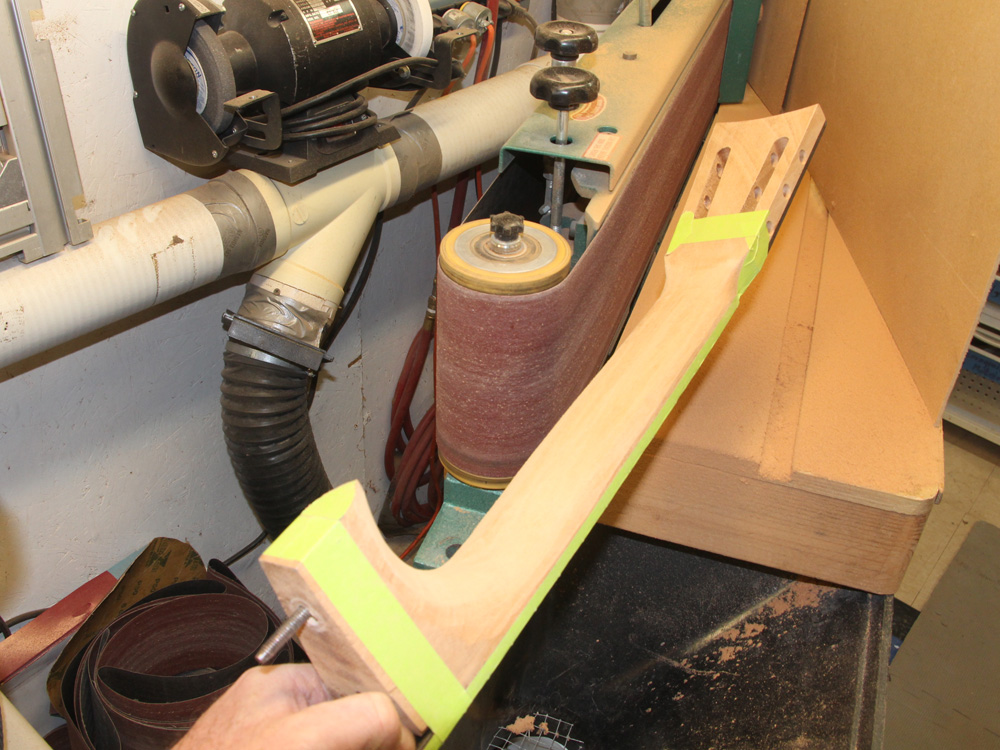

I use the belt sander to get to the rough shape.

( 278 ) 1-Feb-2016

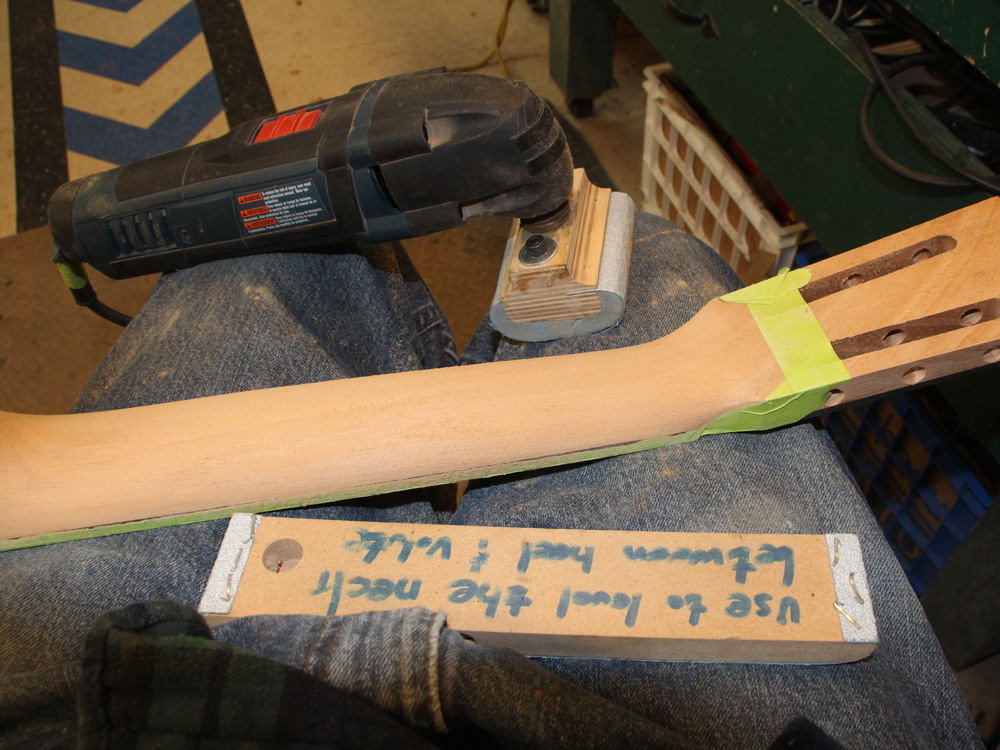

And then I follow up with hand tools to finish the job.

( 279 ) 1-Feb-2016

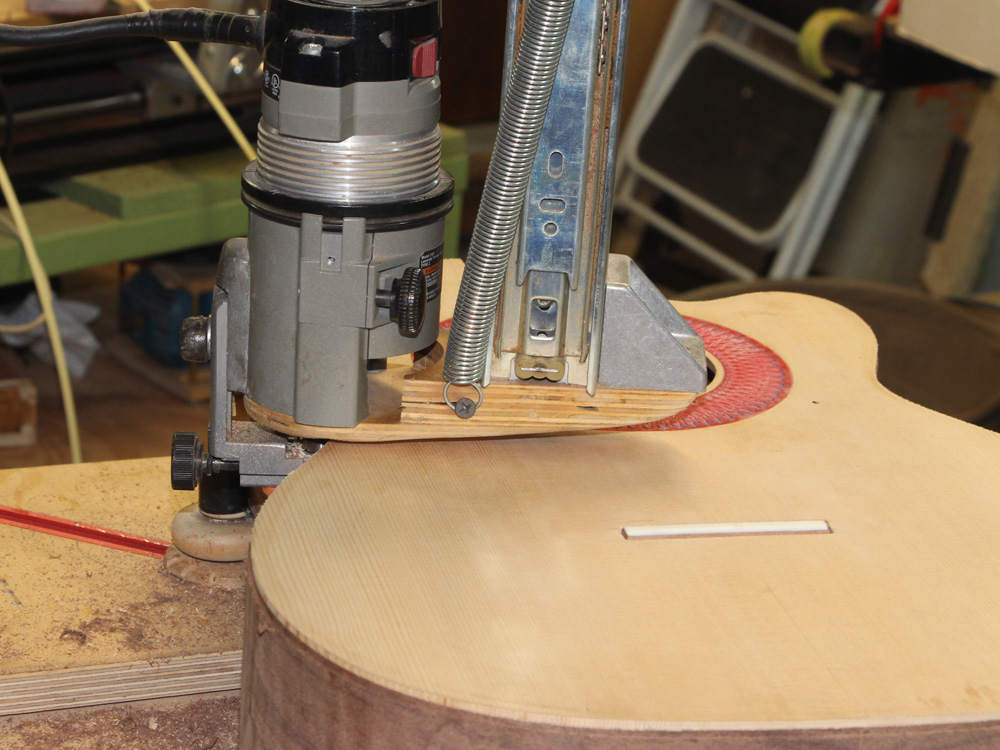

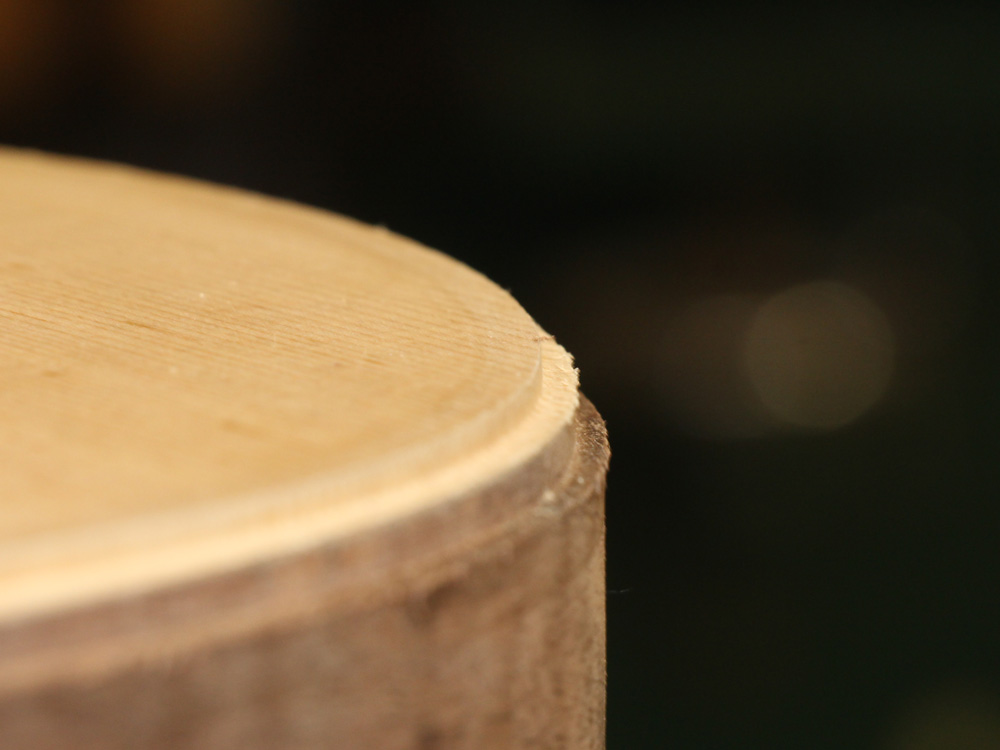

After the neck is shaped I use my Universal Bindalator to create the channels for the binding. The bindalator holds the router parallel to the sides as I route the channels.

( 280 ) 1-Feb-2016


( 281 ) 1-Feb-2016

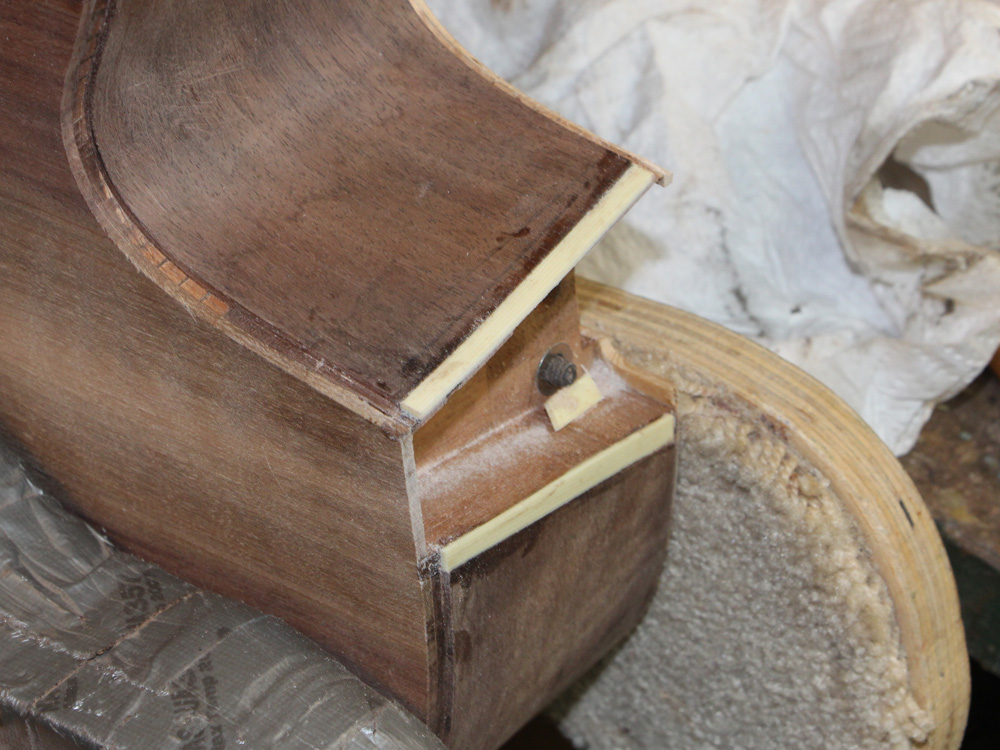

I start installing the binding at the frame around the heel of the neck.

( 282 ) 1-Feb-2016

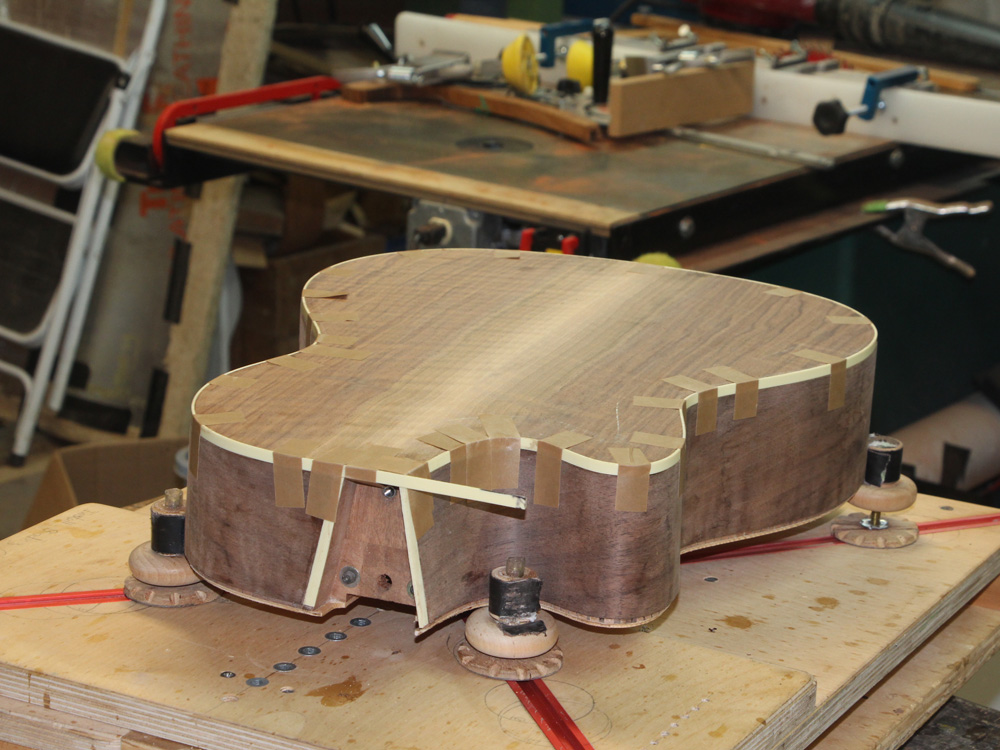

And then I progress to the back.

( 283 ) 1-Feb-2016

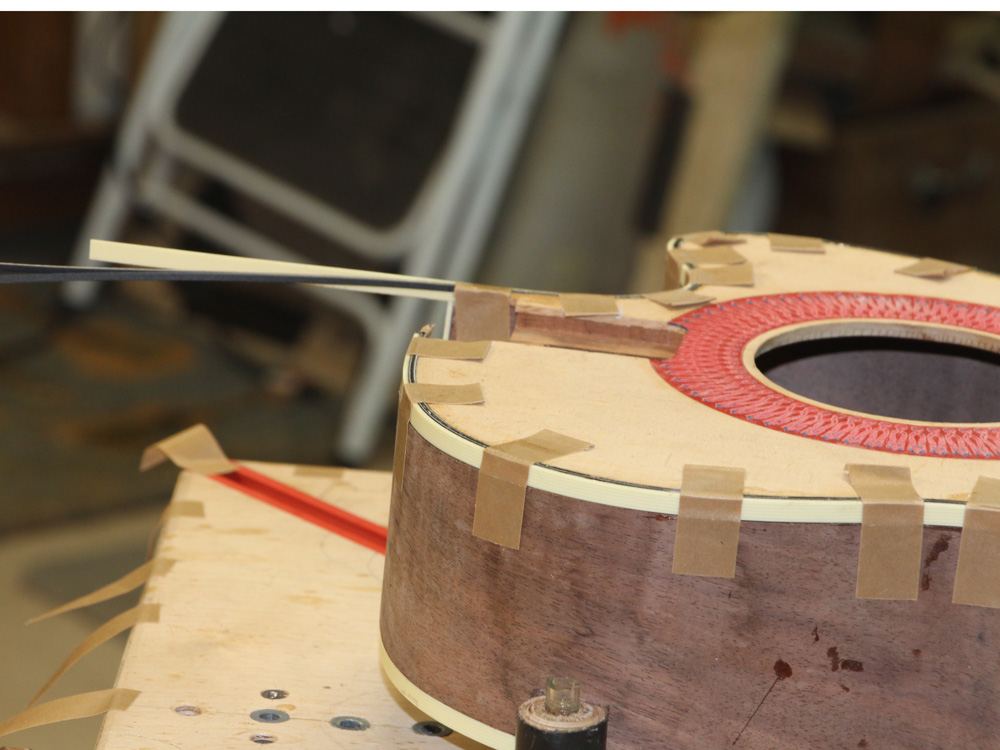

And then then the top.

( 284 ) 1-Feb-2016

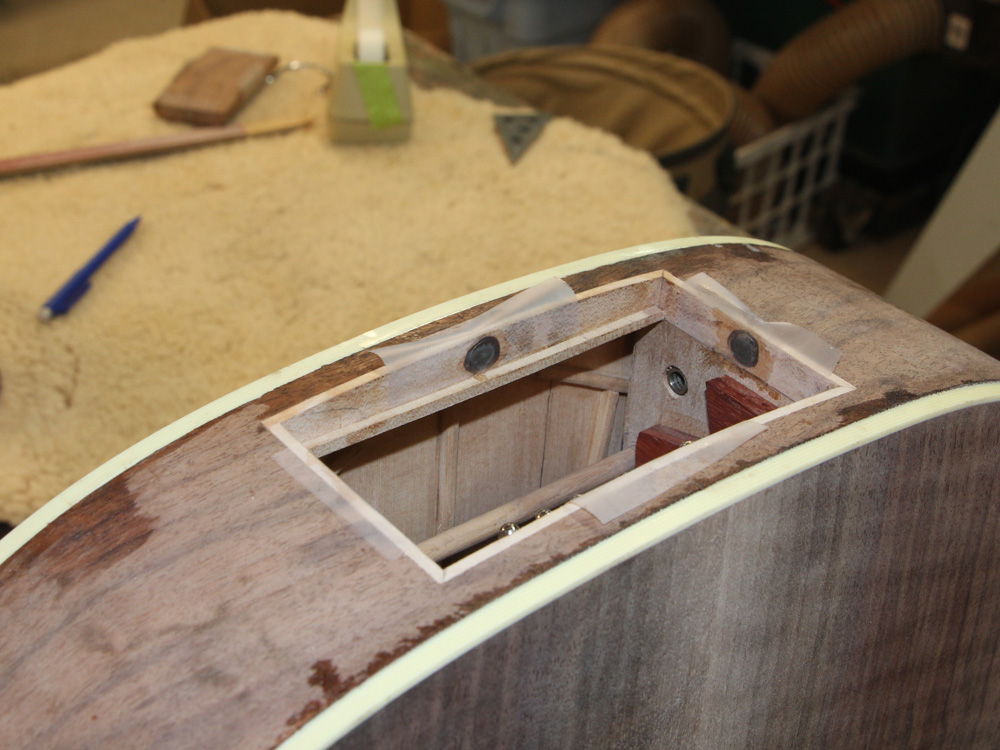

I decided to use magnets to hold the access plate in place.

( 285 ) 1-Feb-2016

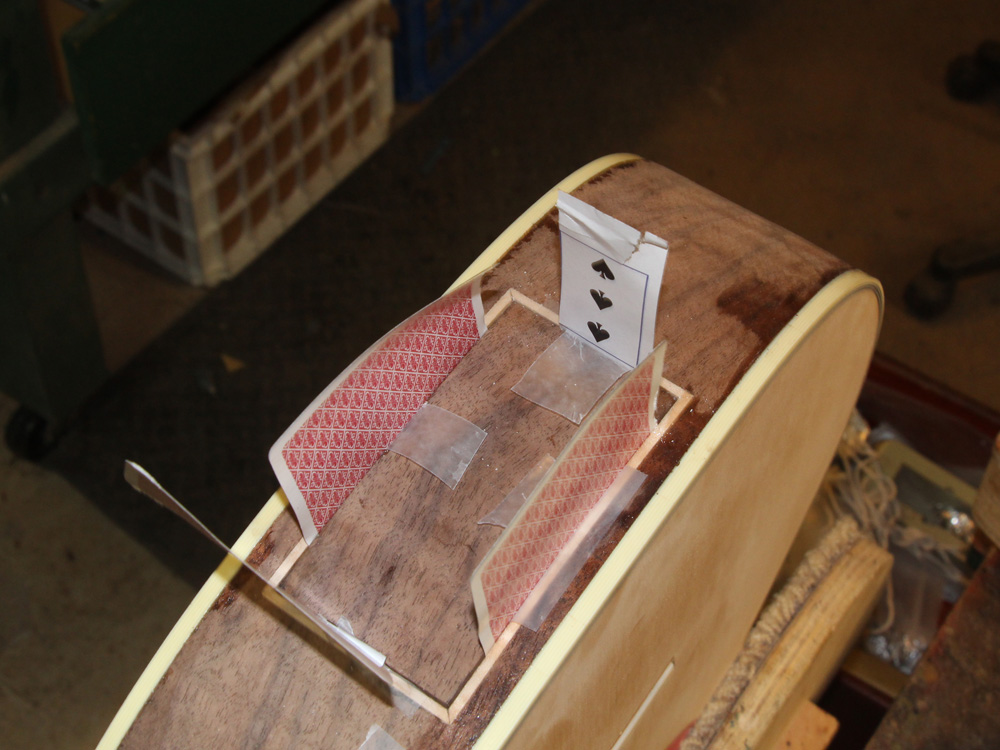

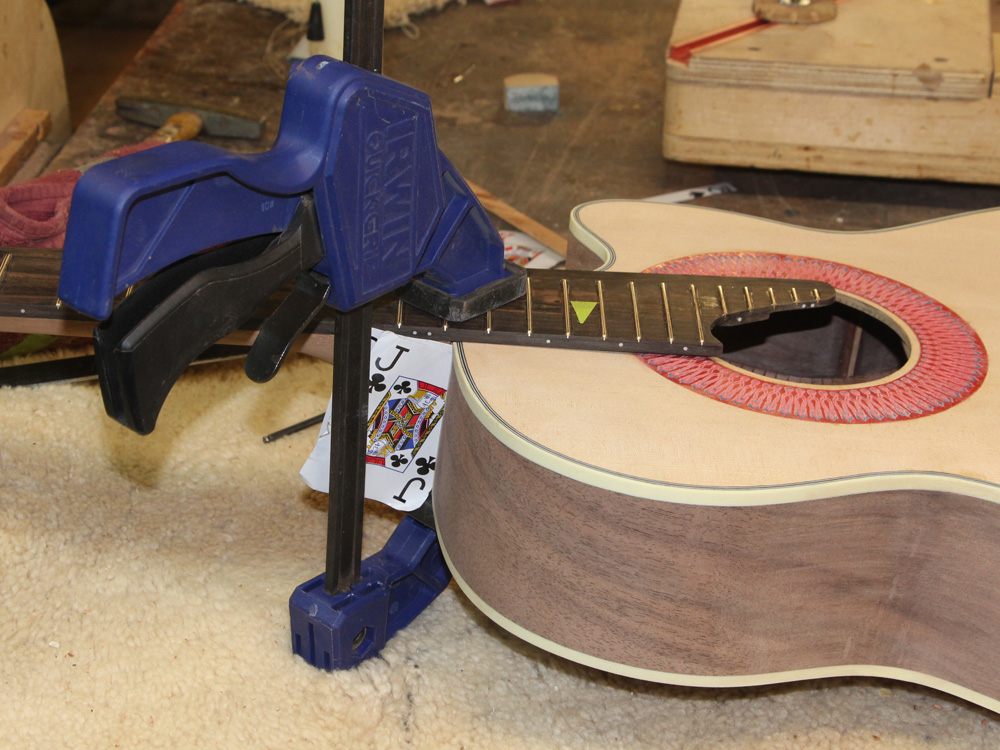

I used playing cards to center the plate while the glue that holds the magnets in place dries.

( 286 ) 1-Feb-2016

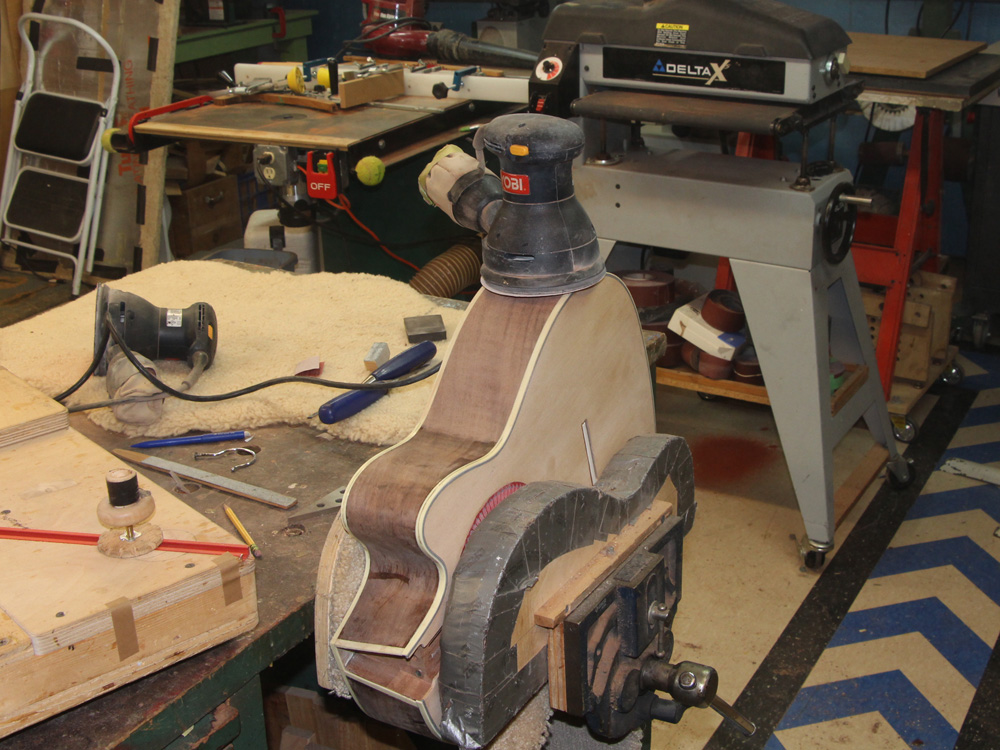

Once all of the binding and purfling is in place I level everything with power and hand tools.

( 287 ) 1-Feb-2016

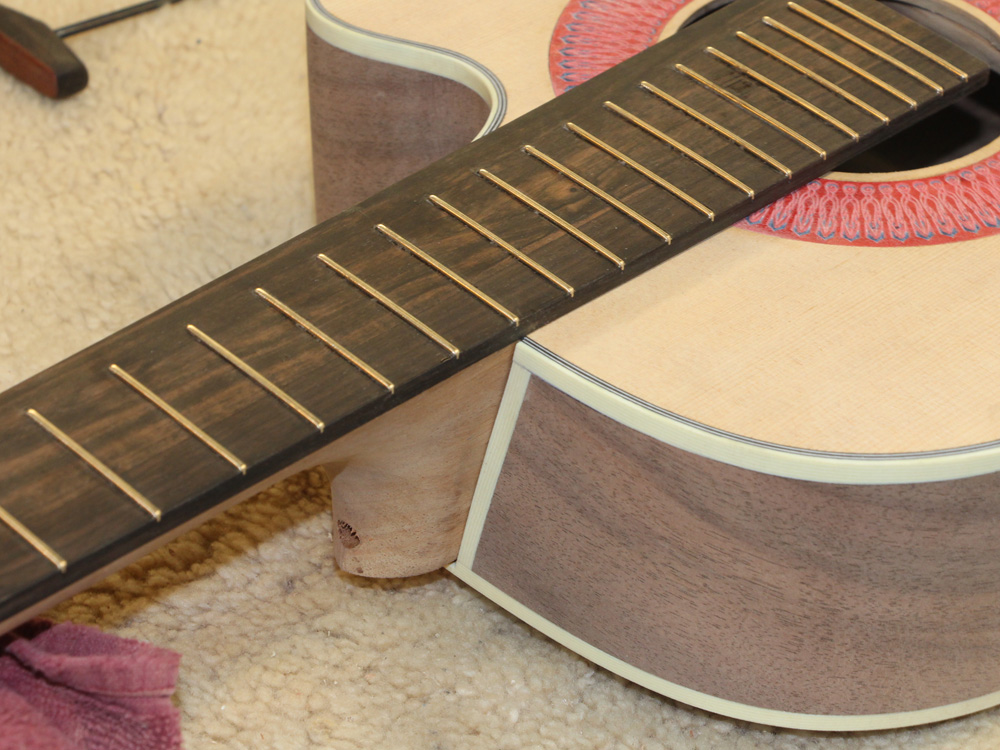

The neck installed.

( 288 ) 1-Feb-2016


( 289 ) 1-Feb-2016

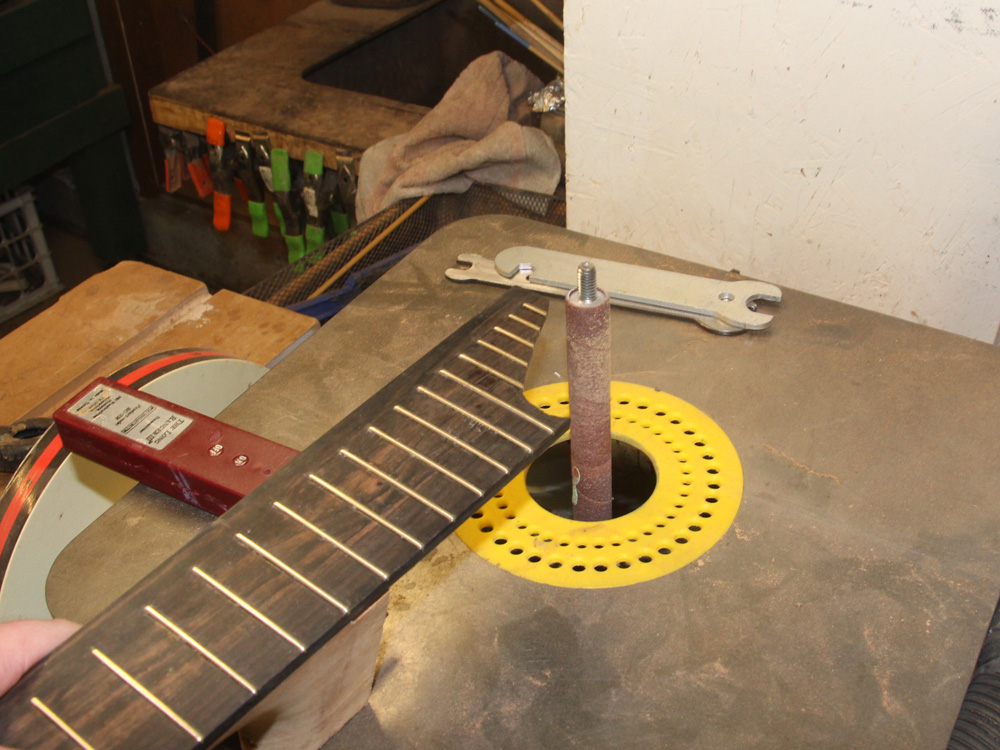

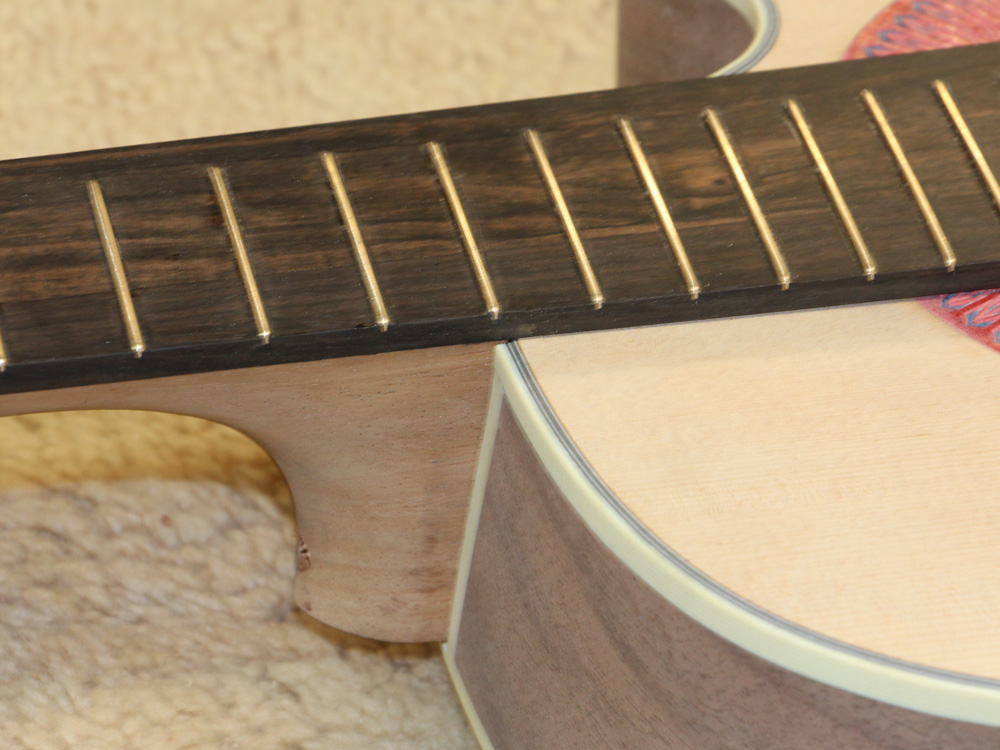

Now, after careful measurements I trim the extended fretboard to shape.

( 290 ) 1-Feb-2016

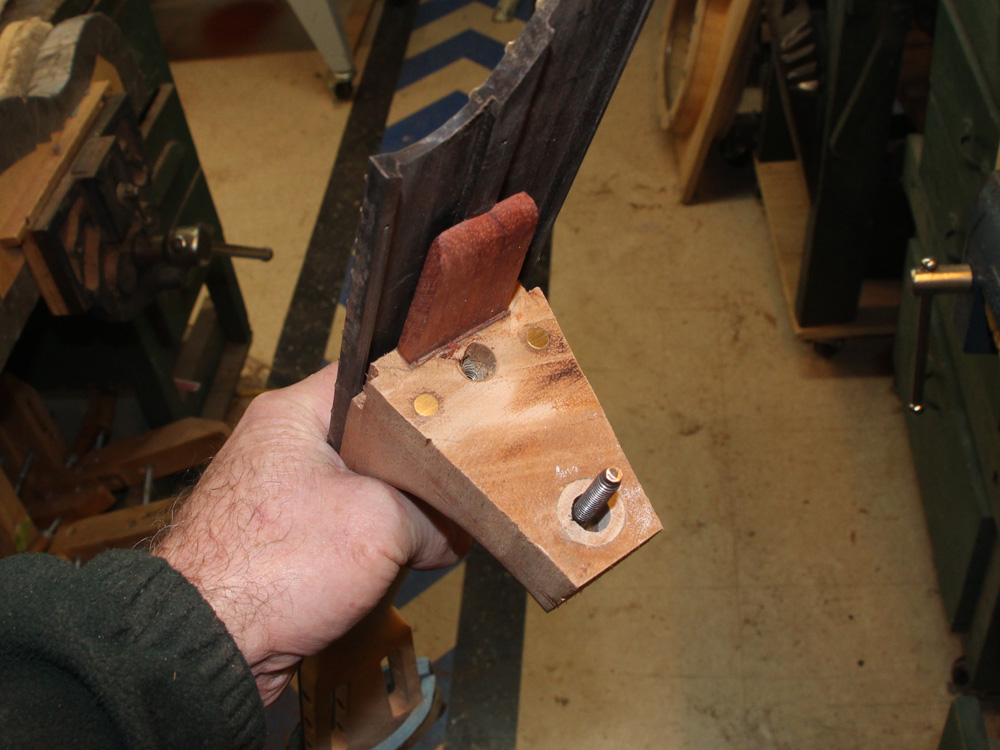

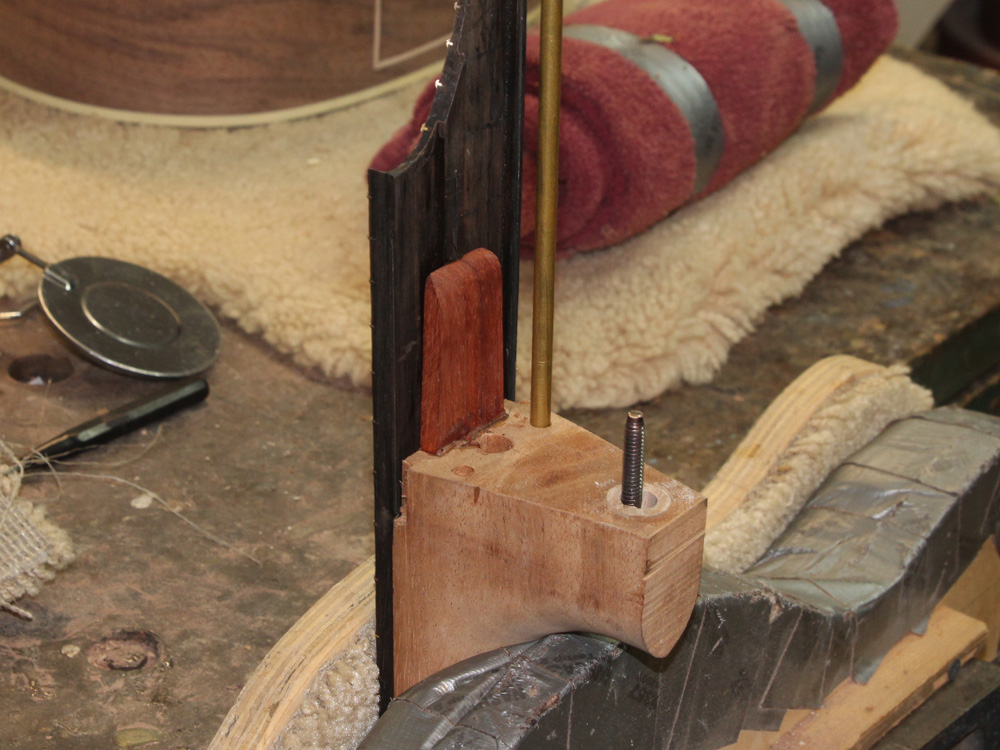

I install brass plugs in the heel of the neck were the set screws will make contact.

( 291 ) 1-Feb-2016


( 292 ) 1-Feb-2016

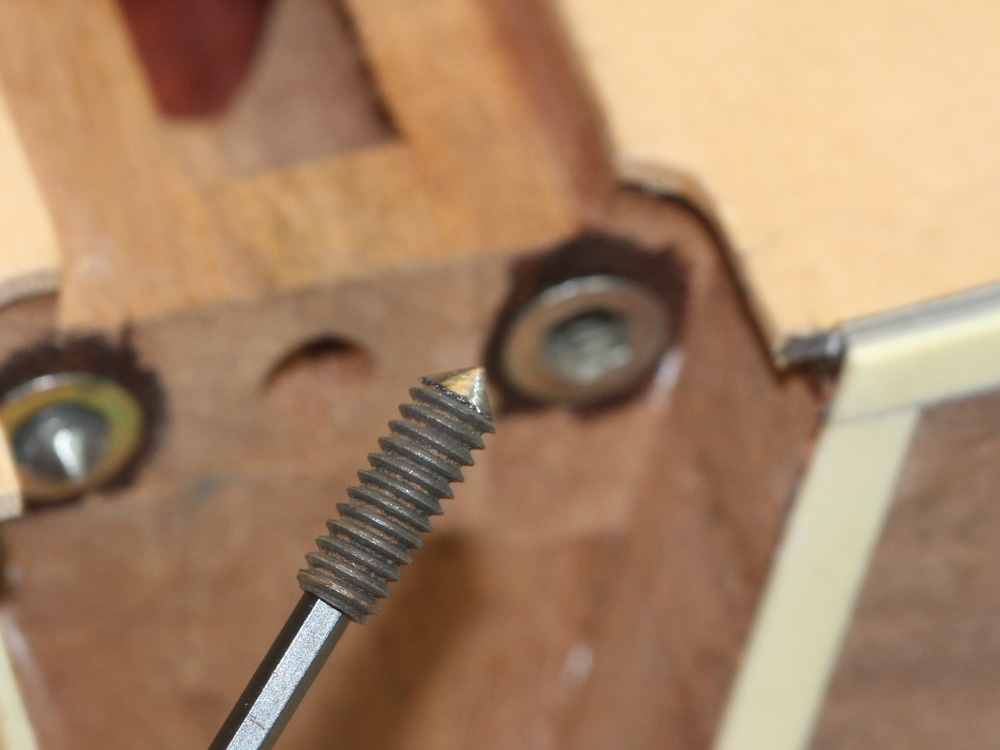

And I bring the setscrews to a point so they will bite into the brass plugs and provide a definitive point of contact.

( 293 ) 1-Feb-2016

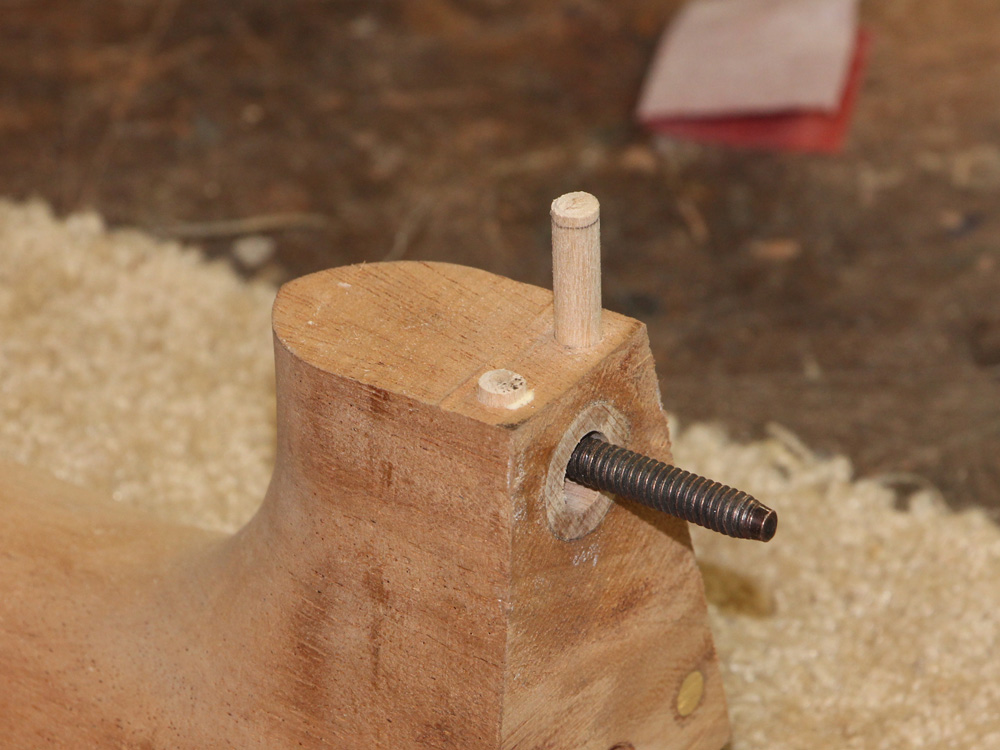

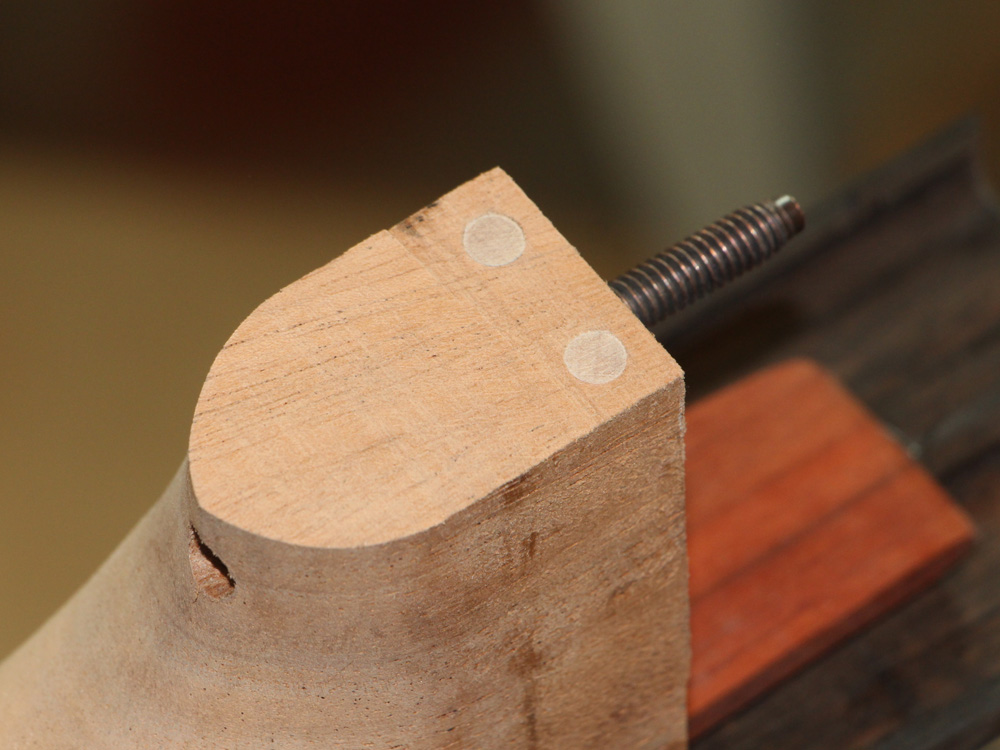

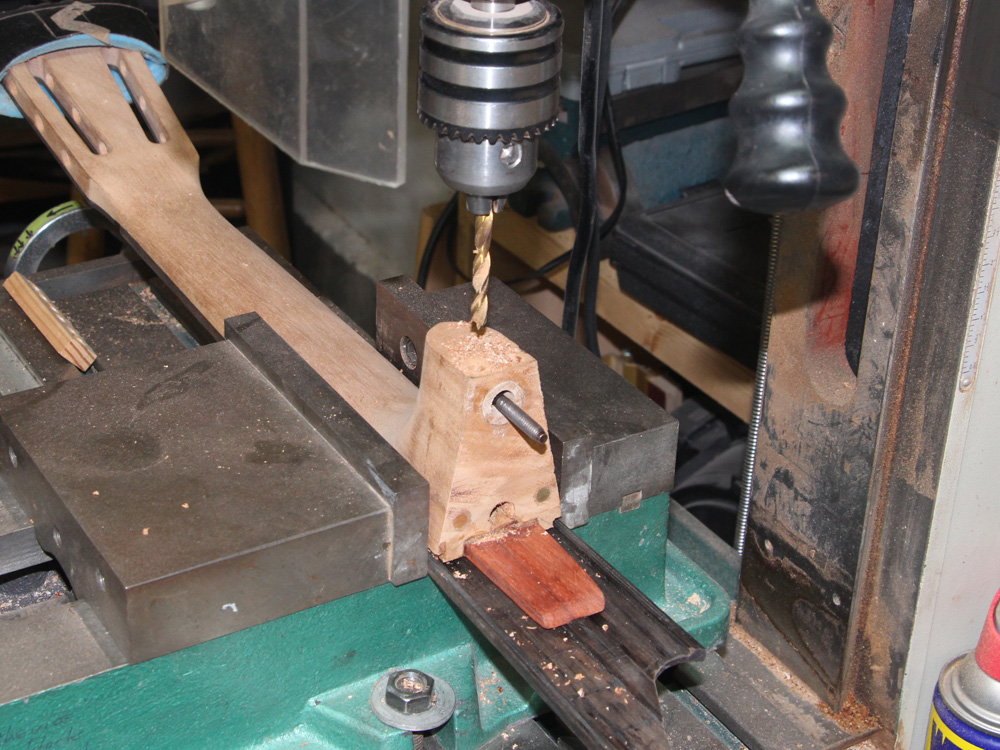

To prevent the neck angle retaining ferule from moving over time I install two pins to hold it in place.

( 294 ) 1-Feb-2016


( 295 ) 1-Feb-2016


( 296 ) 1-Feb-2016

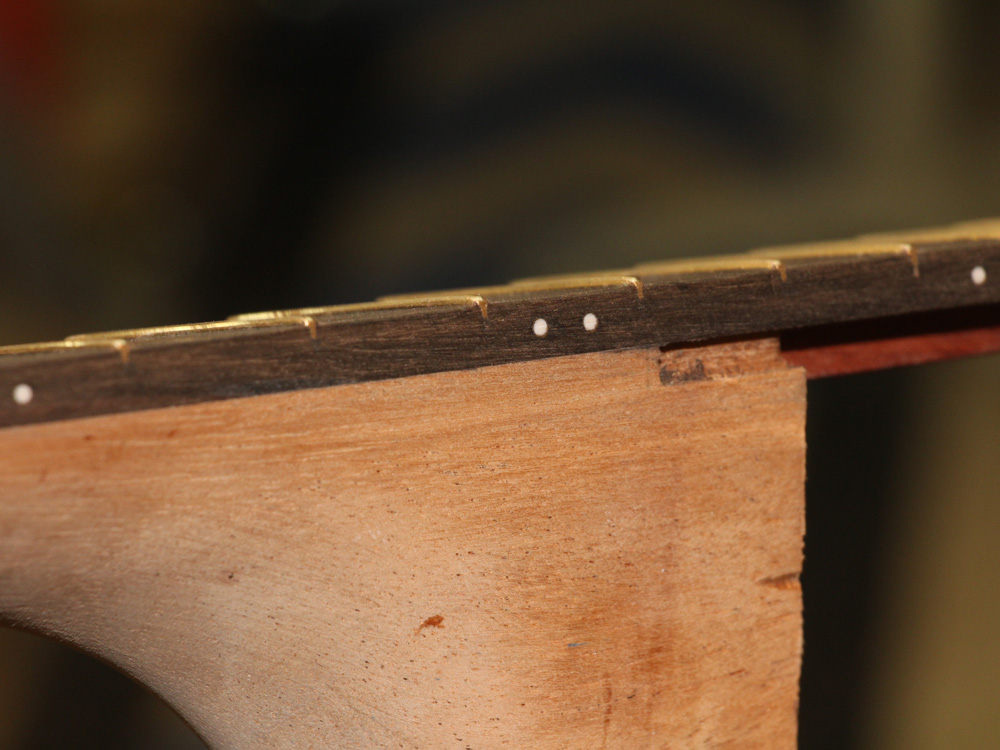

Side dots.

( 297 ) 1-Feb-2016

And now I install the neck and tighten down the neck bolt.

( 298 ) 1-Feb-2016

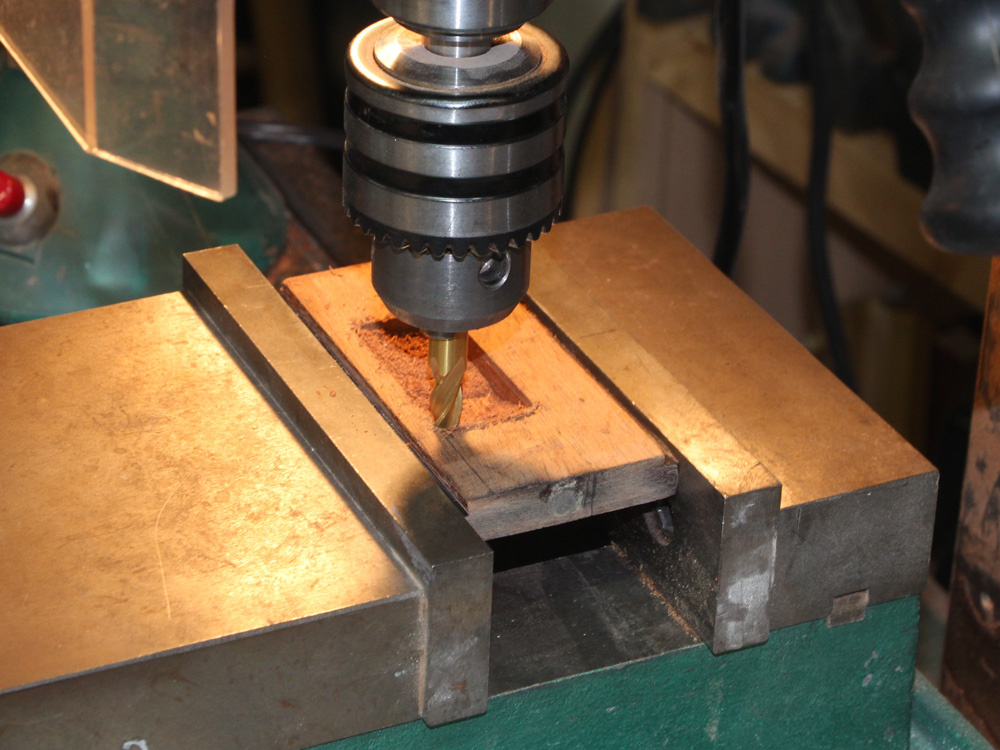

The battery for the electronics will be housed in the access plate. Here I am routing out a hole to hold the battery

( 299 ) 1-Feb-2016

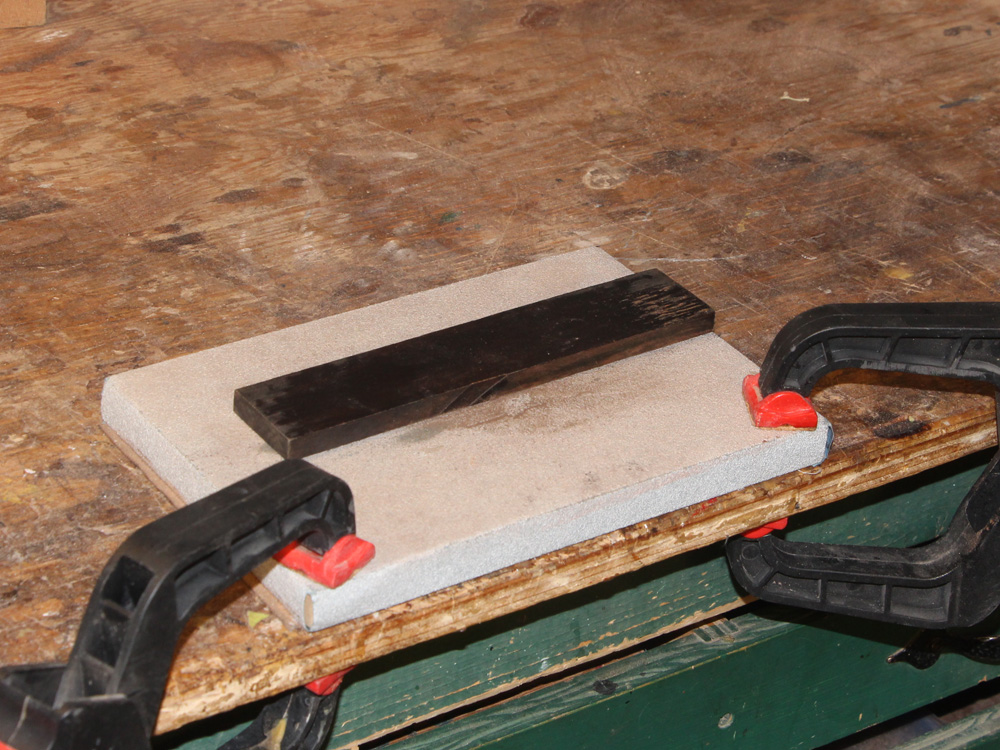

Next I turn my attention to the bridge. I start by sanding the bottom of the bridge blank so it conforms to the shape of the top.

( 300 ) 1-Feb-2016

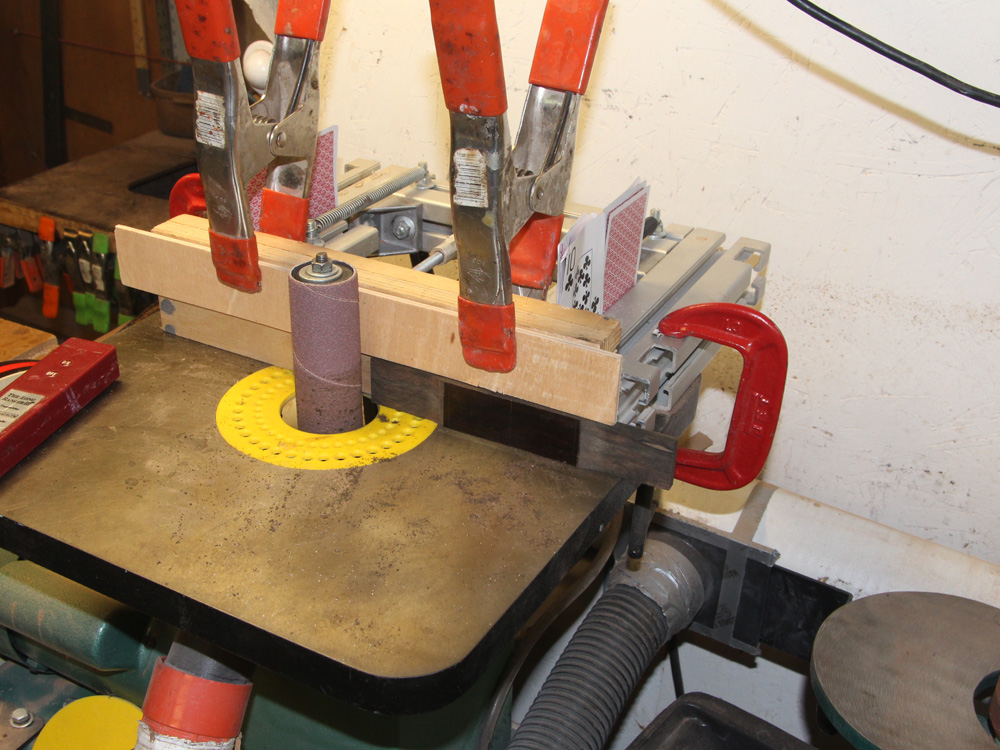

And then I use the oscillating sander to create the wings.

( 301 ) 1-Feb-2016

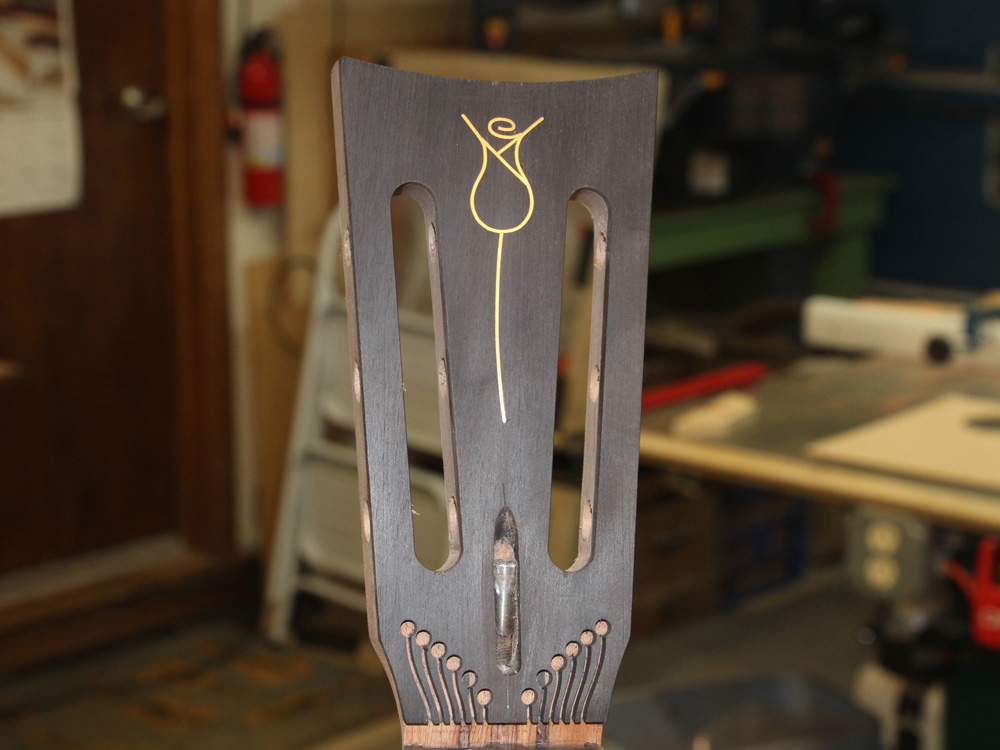

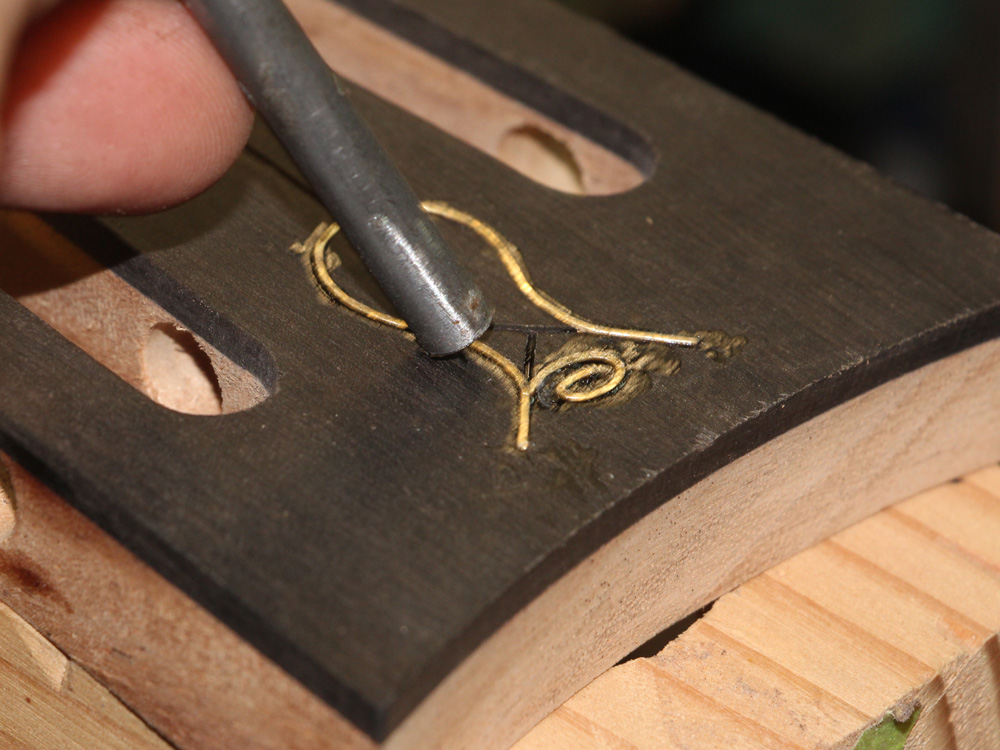

Before I start the finish work I install my signature rose in the head stock.

( 302 ) 1-Feb-2016


( 303 ) 1-Feb-2016

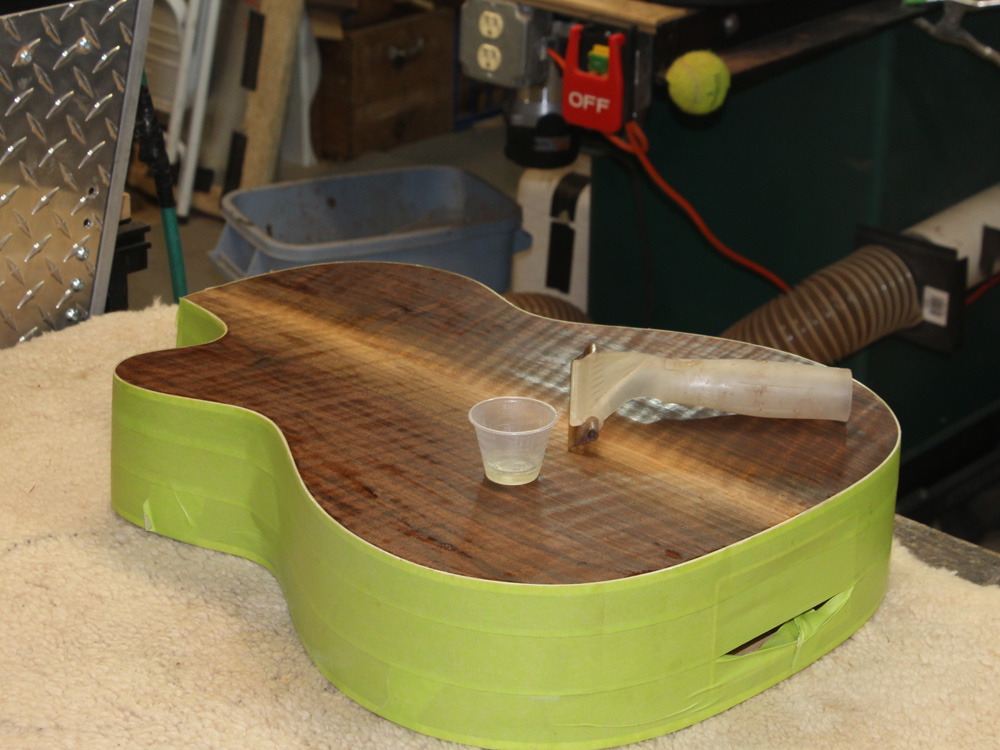

And then I can start the finishing process. I use a thin epoxy to fill the pores in the wood. This takes several coats and sanding steps. When I am finished and happy all of the surfaces will be "perfectly" smooth and have a thin coat of epoxy. The closer to perfection I am at this stage the easier and faster the final coats of nitrocellulose will go on. I have come to conclude it is a fools errand to depend on the nitrocellulose to correct any defects; so I spend a lot of time with the epoxy coats to fill all of the pores and gaps.

( 304 ) 1-Feb-2016

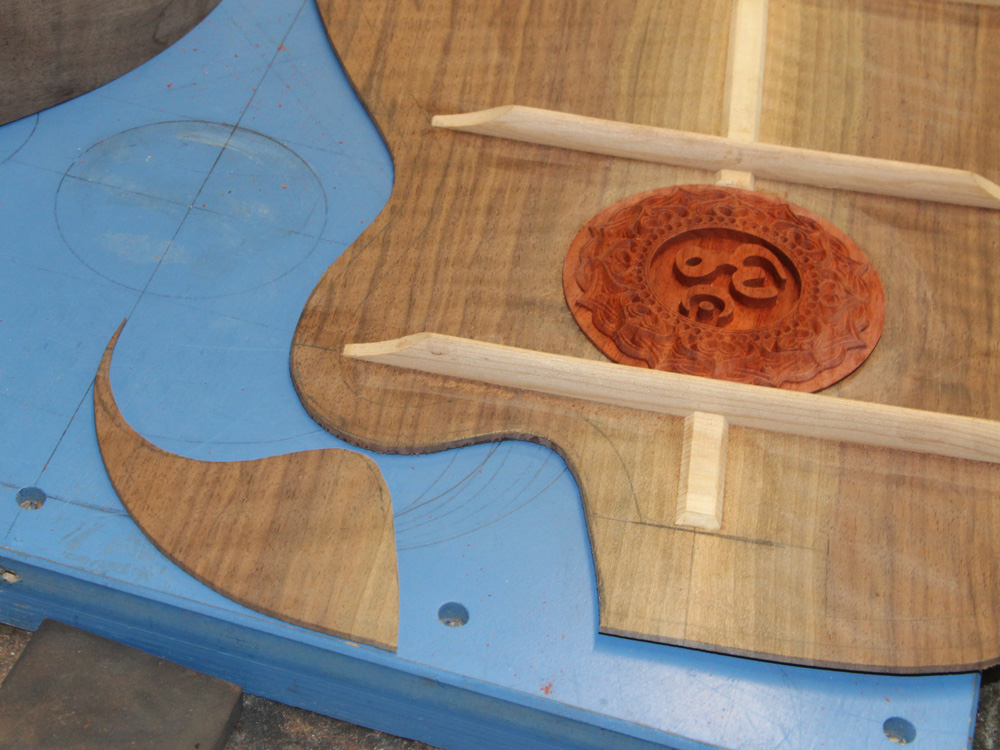

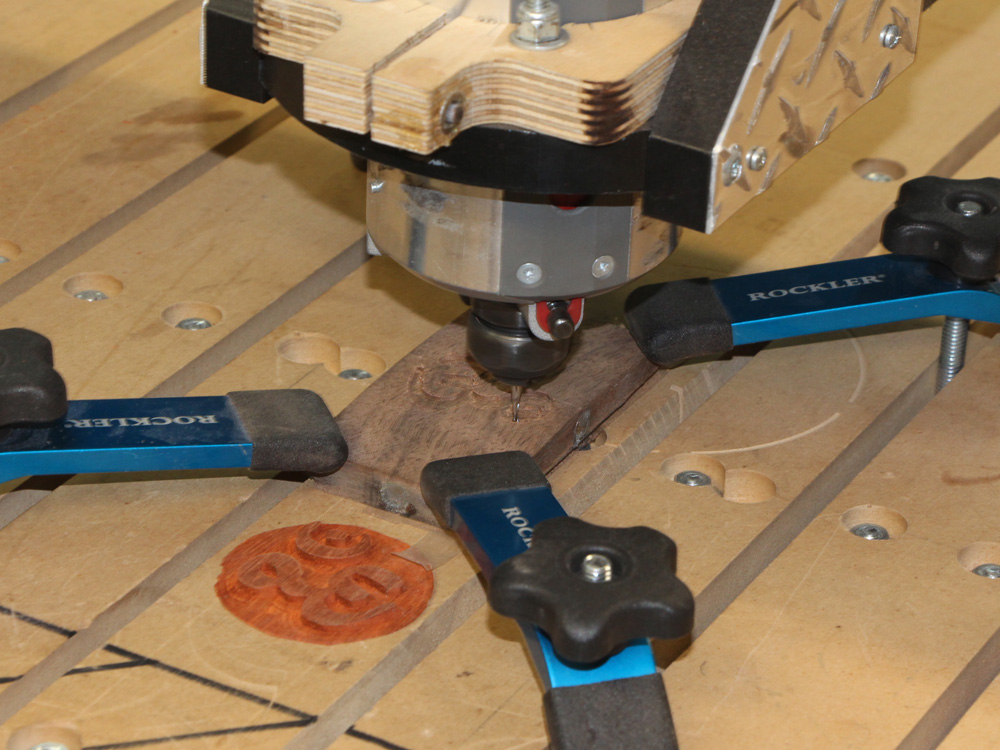

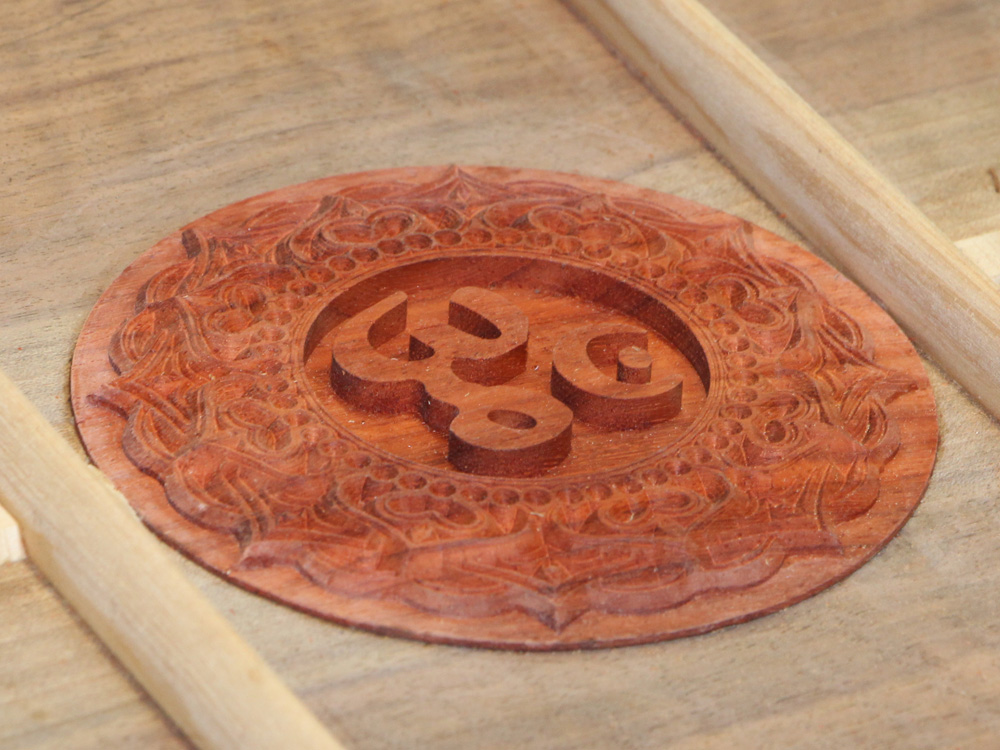

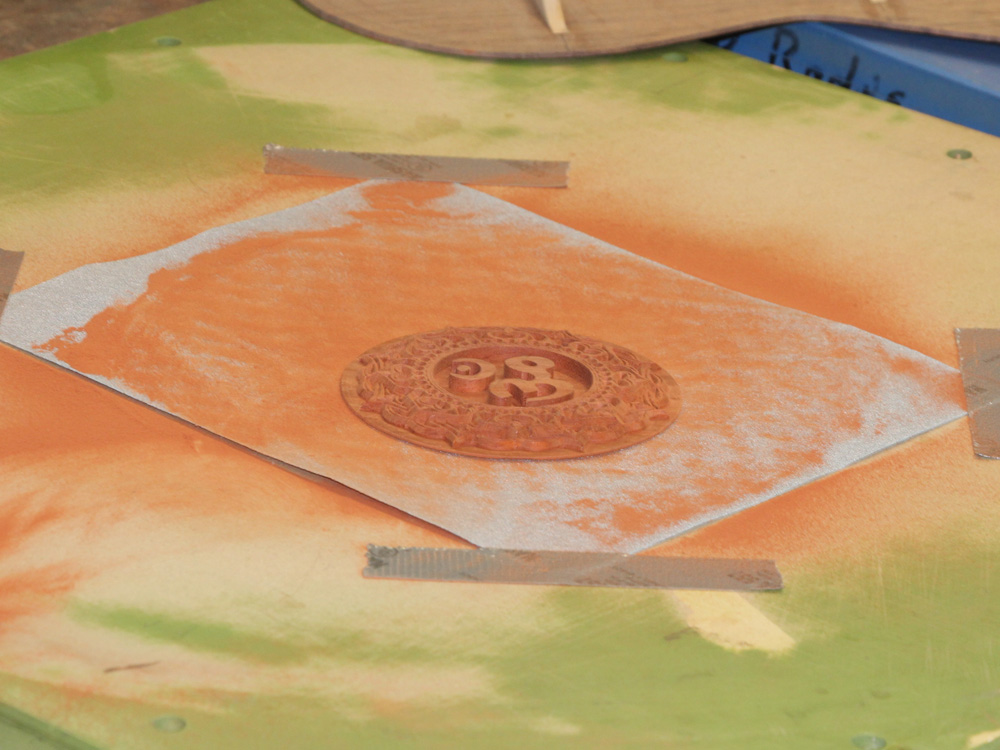

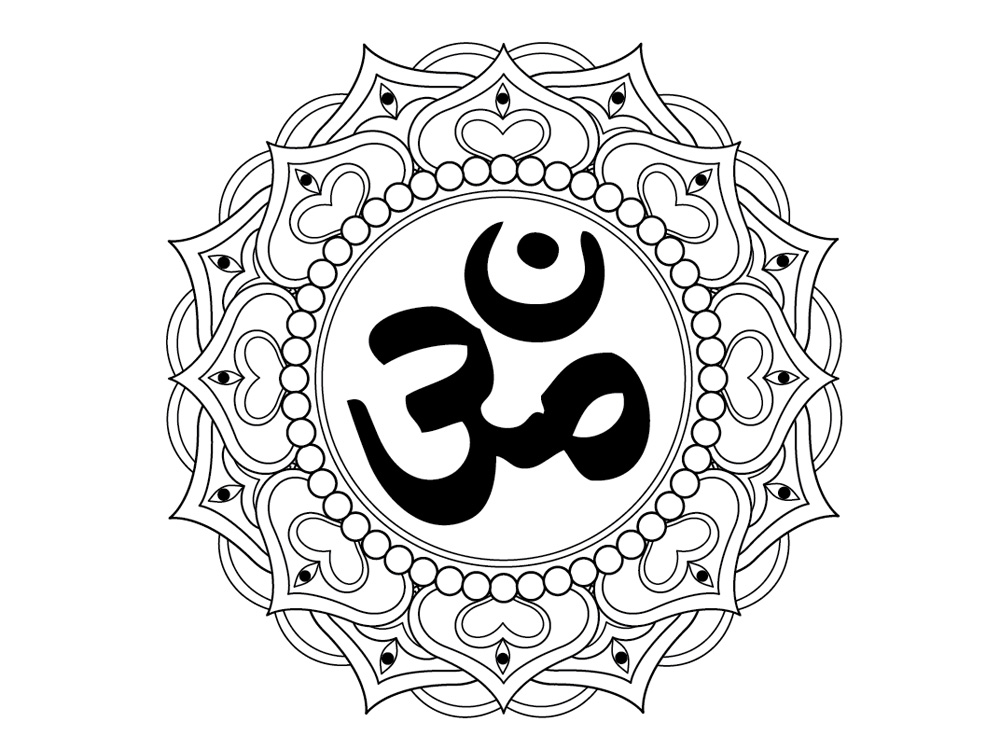

After some consideration we decided to install an "Aum symbol" on the access plate. I use the CNC tool to create the inlay and its channel.

( 305 ) 1-Feb-2016

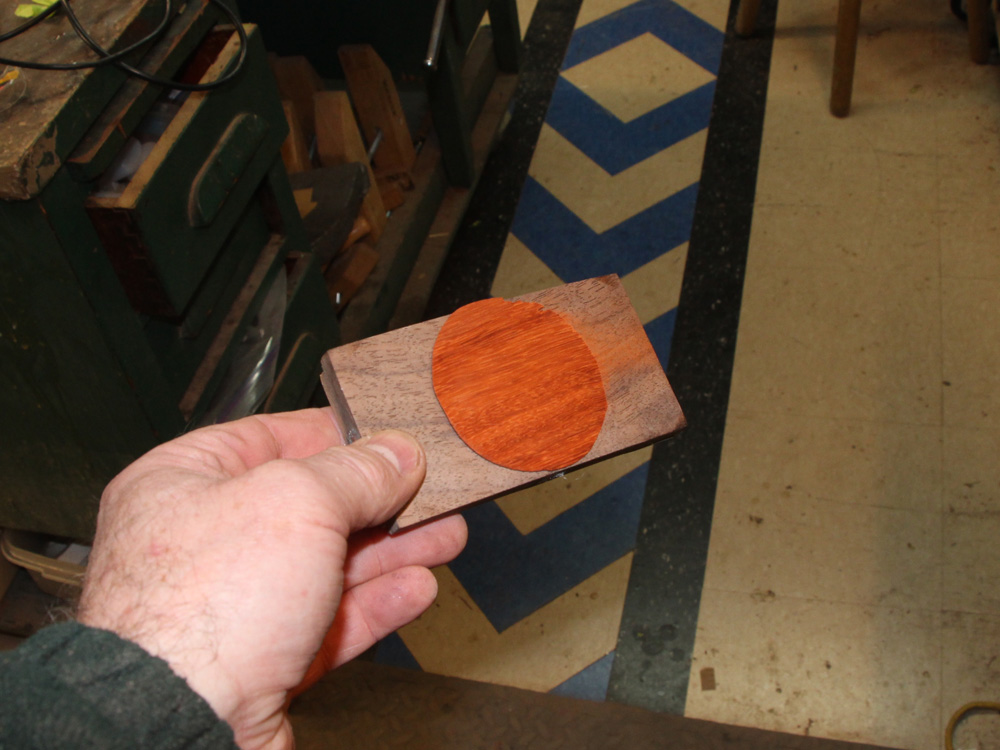

The inlay was created in mirror reverse and then dropped into the channel. I used this process because the inlay has several independent elements and the round plate holds them in place until they are glued in.

( 306 ) 1-Feb-2016

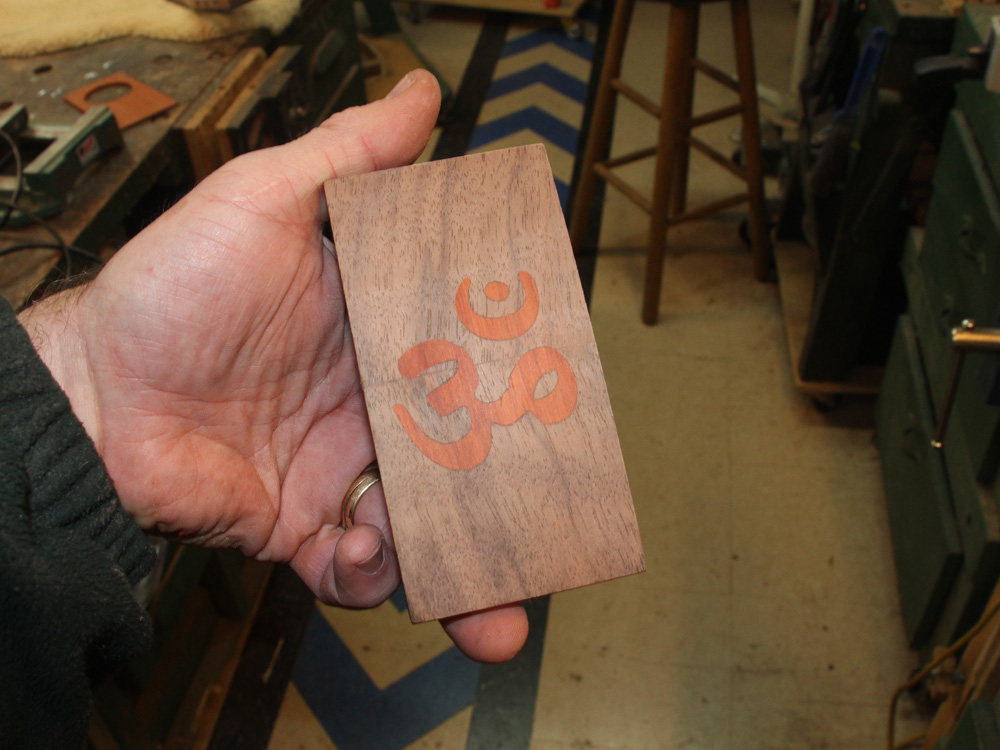

After the inlay is glued in place I sand everything flush.


( 307 ) 1-Feb-2016
